GT3 Control Arms

For Porsche 996 & 997

  • Restore the original ride quality of your Porsche 996/997 by replacing worn control arms, wishbones, suspension links and track rods original style aftermarket replacements.

GT3 Lower Control Arms (LCA)

996 and 997 GT3 cars came equipped with adjustable type lower control arms fit to the front of the car. This two-piece design allows the fitment of shims between inner and outer halves, enabling the control arm to be extended. This has the effect of both increasing camber and widening track width, increasing cornering grip and performance.

There are two flavors of factory GT3 LCA:
– GT3 Street Lower control arms have a rubber central bushing and is paired with a rubber inner
– GT3 Cup Lower Control arms have a solid caster-adjustable center bushing and is paired with a spherical bearing inner for added performance, control and precision.These same GT3 lower control arms can be fit to all 996, 997, Boxster and Cayman cars through 2020 to both the front and rear. They can also be fit the front of 991 cars.

This a great performance upgrade allowing increased camber, track width and performance.

The GT3 lower control arm is a system built up of three or four component parts, each ordered separately.
– GT3 lower control arm outer
– GT3 lower control arms shims (various thicknesses, stackable)
– Litronic bracket
– GT3 lower control arm inner

GT3 Control Arm Components


GT3 Outer Lower Control Arm (LCA) For Porsche 996, 997, 991, Boxster, Cayman

GT3 Outer Lower Control Arm (LCA)

We offer the genuine GT3 Street Outer Lower Control Arm. Availability is spotty, contact us to confirm.

Elephant Racing GT3 Outer Lower Control Arms
Elephant Racing has developed an upgraded GT3 type lower control arm. These are readily available and dimensionally identical to the factory parts. They can be mix-matched with the factory type inner/outer lower control arm and shims.

Like the factory GT3 lower control arms, the Elephant Racing outer arm has an integrated ball joint that is weather sealed. Unlike the factory GT3 lower control arms, the ball joint in the Elephant Racing arms is rebuildable. We offer a rebuild kit allowing you to renew the arm when needed.

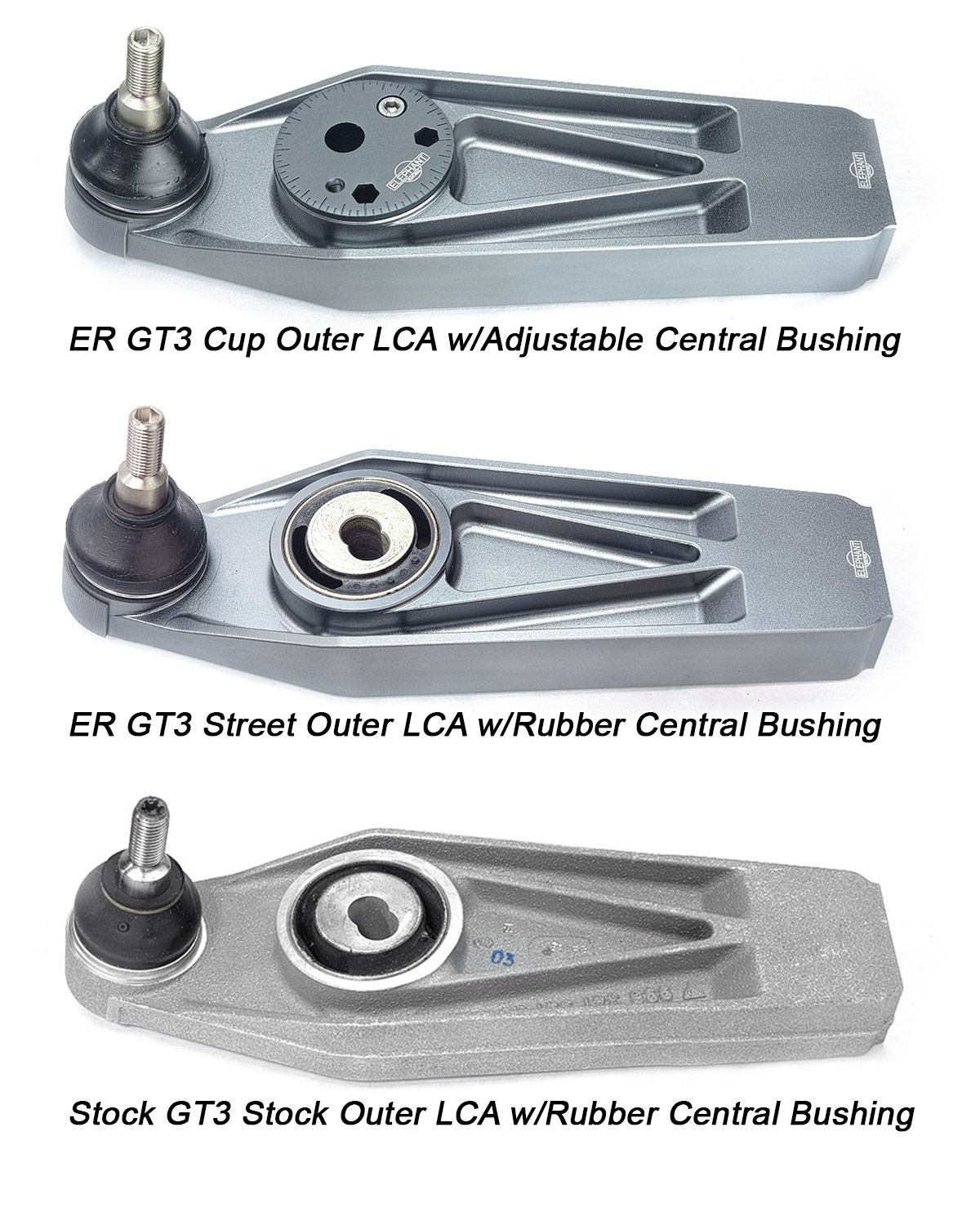

The Elephant Racing outer arm is offered in two flavors, A GT3 Street Outer Lower Control and GT3 Cup Outer Lower Control Arm; GT3 street is equipped with a rubber bushed central bushing, GT3 Cup is equipped with a solid caster adjustable central bushing.

These can be paired with a choice of GT3 lower control arms inner;
– Elephant Racing GT3 lower control arm inner rubber bushing
– Elephant Racing GT3 lower control arm inner spherical bearing
– Factory GT3 lower control arm inner rubber bushing

These same arms can be fit to the rear of 996/997 GT3 cars and can also be fit to regular non-GT3 996/997 for the same performance benefits.

The outer arms are provided as left and right side, and combined with inner portion. Each arm is available separately.

GT3 Outer Lower Control Arm (LCA) For Porsche 996, 997, 991, Boxster, Cayman
https://www.elephantracing.com/wp-content/uploads/lower-control-arms-adjustable-details_001-150x100.jpgadjustable caster puckhttps://www.elephantracing.com/wp-content/uploads/MK1_5588-150x100.jpghttps://www.elephantracing.com/wp-content/uploads/lower-control-arms-adjustable-001-150x100.jpgGT3 Control Arms

Application Table

Part No. Stock Equiv. Fitment & Configuration
2180037-GT3 ERX w/ Adjustable Caster
996/986/GT3/RS front and rear,
997/GT3/RS front and rear,
987 front and rear,
991 front only (does not fit 991 GT3),
981 front and rear
2180038-GT3 ERX w/ Rubber Bushing
996/986/GT3/RS front and rear,
997/GT3/RS front and rear,
987 front and rear,
991 front only (does not fit 991 GT3),
981 front and rear
G-99634112290-Factory Control Arm pairs,
'04-'05 GT3 Street front lower outer left & right,
'04-'05 GT3 Street rear lower outer left & right,
'99-'11 996/997 front lower outer left & right,
'99-'11 996/997 rear lower outer left & right,
does not fit 991 GT3 or GT4, front only on 991


GT3 Inner Lower Control Arm (LCA) For Porsche 996, 997, 991, Boxster, & Cayman

GT3 Inner Lower Control Arm (LCA)

We offer the genuine GT3 Street Inner Lower Control Arm. Availability is spotty, contact us to confirm.

Elephant Racing GT3 Inner Lower Control Arms

Elephant Racing has developed GT3 type inner lower control arms. These are readily available and dimensionally identical to the factory parts. They can be mix-matched with the factory type inner/outer lower control arm and shims.

The Elephant Racing inner arm is offered in two flavors, GT3 Street Inner Lower Control Arm and GT3 Cup Inner Lower Control Arm; GT3 street is equipped with a rubber bushed central bushing, GT3 Cup is equipped with a solid caster adjustable central bushing.

Our GT3 Street Inner Lower Control Arm has sport-hardness rubber bushings to provide upgraded control and driver feedback. They still offer good road noise isolation.

Our GT3 Cup Inner Lower Control Arms uses weather sealed spherical bearings. These deliver superior precision, control and performance. They will transmit a bit more road noise than rubber bushings.

These can be paired with a choice of GT3 outer control arms inner:
– Elephant Racing GT3 Street Outer Lower Control Arms
– Elephant Racing GT3 Cup Outer Lower Control Arms
– Factory GT3 Street Outer Lower Control Arms

GT3 Inner Lower Control Arm (LCA) For Porsche 996, 997, 991, Boxster, & Cayman

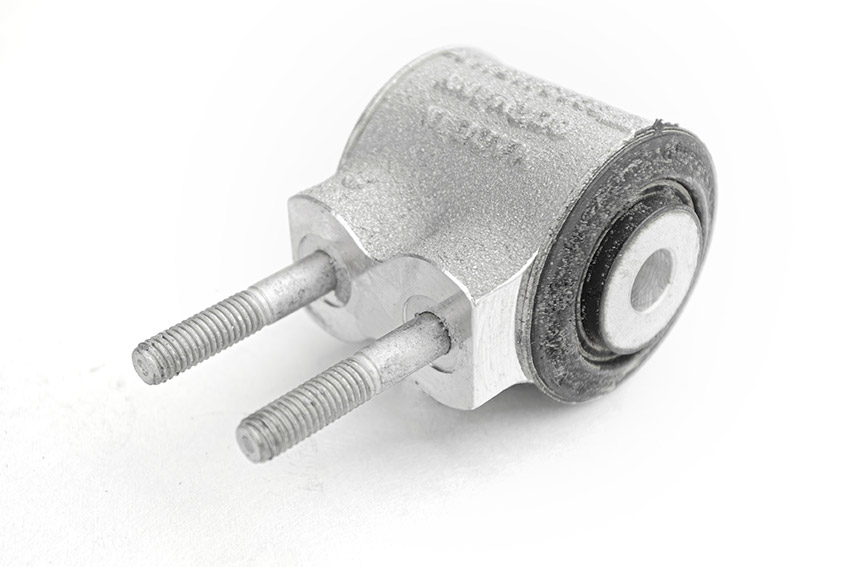

https://www.elephantracing.com/wp-content/uploads/GT3_control_arm_inner_rubber_bushings_detail_002-150x100.jpgGT3 Control Arm Inner Rubber Bushingshttps://www.elephantracing.com/wp-content/uploads/996_Lower_Inner_Control_Arms_002-150x86.jpg996 Lower Inner Control Armshttps://www.elephantracing.com/wp-content/uploads/996_Lower_Inner_Control_Arms_001-150x100.jpghttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_003-150x98.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_004-150x100.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_001-150x100.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_005-150x100.jpg996 GT3 LCA Monoball

Application Table

Part No. Stock Equiv. Fitment & Configuration
2180039-For '99-'11 front/rear factory GT3 street control arm,
or '12+ front only factory GT3 street control arm,
not for '12+ 991 GT3/GT4,
Rubber bushing
218003099634144190'99+ 996, 997, 991 w/ GT3 style control arms (front/rear),
'99+ Boxster, Cayman w/ GT3 style control arms (front only),
Cup monoball
1-9963414419099634144190'04-'05 GT3 Steet inner front or rear lower,
'99-'11 996/997 inner front or rear lower,
does not fit 991 GT3 or GT4, front only on 991

Links for Ball Joint Rebuild Kit For ER GT3 LCA




Shims for GT3 Lower Control Arms For Porsche 996, 997, 991, Boxster, Cayman

Shims for GT3 Lower Control Arms

Shims for use with GT3 type lower control arms. 1mm adds approximately .1 degree of camber.
Shims for GT3 Lower Control Arms For Porsche 996, 997, 991, Boxster, Cayman
https://www.elephantracing.com/wp-content/uploads/lower-control-arm-shims-for-porsche-detail_002a-150x100.jpgLower control arm shim detail for Porsche 996, 997, 991, Boxster, and Caymanhttps://www.elephantracing.com/wp-content/uploads/lower-control-arm-shims-for-porsche-detail_003b-150x100.jpgLower control arm 10mm shim detail for Porsche 996, 997, 991, Boxster, and Caymanhttps://www.elephantracing.com/wp-content/uploads/lower-control-arm-shims-for-porsche_001a-150x84.jpgLower control arm shims for Porsche 996, 997, 991, Boxster, and Caymanhttps://www.elephantracing.com/wp-content/uploads/control-arm-combined-view_001-150x100.jpgLower control arm litronic bracket for Porsche 996, 997, 991, Boxster, and Caymanhttps://www.elephantracing.com/wp-content/uploads/control-arm-combined-view_002-150x100.jpgLower control arm shims for Porsche 996, 997, 991, Boxster, and Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-LCASHIM-08-8mm shim for GT3 LCA, not for 991 GT3 or GT4 arms
1-LCASHIM-04-4mm shim for GT3 LCA, not for 991 GT3 or GT4 arms
1-LCASHIM-02-2mm shim for GT3 LCA, not for 991 GT3 or GT4 arms
1-LCASHIM-01-1mm shim for GT3 LCA, not for 991 GT3 or GT4 arms


Litronic Bracket for GT3 LCA For Porsche 996. 997, 991, Boxster & Cayman

Litronic Bracket for GT3 LCA

Litronic Bracket for GT3 LCA For Porsche 996. 997, 991, Boxster & Cayman
https://www.elephantracing.com/wp-content/uploads/ControlArmPics-9-150x100.jpgLitronic Bracket for GT3 Lower Control Armhttps://www.elephantracing.com/wp-content/uploads/ControlArmPics-10-150x100.jpgLitronic Bracket for GT3 Lower Control Armhttps://www.elephantracing.com/wp-content/uploads/control-arm-combined-view_002-150x100.jpgLower control arm shims for Porsche 996, 997, 991, Boxster, and Caymanhttps://www.elephantracing.com/wp-content/uploads/control-arm-combined-view_001-150x100.jpgLower control arm litronic bracket for Porsche 996, 997, 991, Boxster, and Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-LTBRKT-'99+ 996 turbo front and rear,
997 rear


Ball Joint Rebuild Kit For ER GT3 LCA For Porsche 996, 997, 991, Boxster & Cayman

Ball Joint Rebuild Kit For ER GT3 LCA

Complete ball joint rebuild kit for threaded stud type Elephant Racing GT3 control arms.

Everything needed for a professional quality rebuild in a single kit. One kit required per ball joint.

Ball Joint Rebuild Kit For ER GT3 LCA For Porsche 996, 997, 991, Boxster & Cayman
https://www.elephantracing.com/wp-content/uploads/ball-joint-rebuild-kit-for-detail_002-150x100.jpgER Ball joint rebuild kit detailhttps://www.elephantracing.com/wp-content/uploads/ball-joint-rebuild-kit-for-detail_001-150x100.jpghttps://www.elephantracing.com/wp-content/uploads/ball-joint-rebuild-kit-for-detail_003-150x100.jpg

Application Table

Part No. Stock Equiv. Fitment & Configuration
2180026-996/986/GT3/RS front and rear,
997/GT3/RS front and rear,
987 front and rear,
991 front only,
981 front and rear

Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

  Configuration Quantity Pricing

Front or Rear

GT3 Outer Lower Control Arm (LCA)
$1,180.00 pair
Shims for GT3 Lower Control Arms
$21.00 each
GT3 Inner Lower Control Arm (LCA)
$370.00 each
Ball Joint Rebuild Kit For ER GT3 LCA
#2180026
996/986/GT3/RS front and rear,
997/GT3/RS front and rear,
987 front and rear,
991 front only,
981 front and rear

2 req'd per axle
$160.00 each
Litronic Bracket for GT3 LCA
#1-LTBRKT
'99+ 996 turbo front and rear,
997 rear
2 req'd per axle
$50.00 each
