Oil Line & Hoses

For Porsche 911/930

Need specific oil lines for your external oil cooler?

We provide OEM Porsche type oil lines as well Elephant Racing developed specialty oil lines. Our specialty oil lines provide features and advantages not available in OEM products, yet they directly replace equivalent OEM lines, you can mix and match as needed.

The oil line configurations shown here are the best choices for most when adding or upgrading an external oil cooling system for all 911/930 ’65 to ’89, except ’72. ’72 is a special case and is covered on our oil cooler kits page.

For complete oil cooler kits and oil cooler plumbing kits, visit our oil cooler kits page.

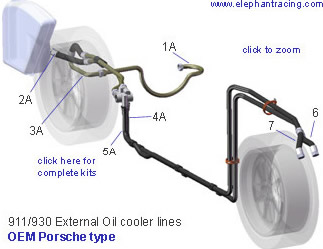

911-oil-cooler-lines-oem-390

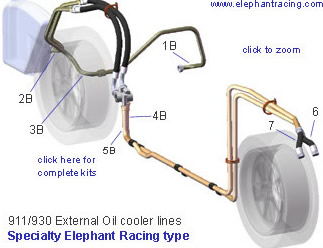

911-oil-cooler-lines-specialty-390

1: Crossover Pipe For Porsche 911, 930

1: Crossover Pipe

1A – OEM type

OEM Crossover Pipe as original on 73-74 911s. Fits all 915 and G50 transaxle cars, does not fit 65-71 901/911 transaxles. Fits with 65-74 factory heat exchangers, SSIs, or headers. Does not fit 78-89 factory heat exchanger.

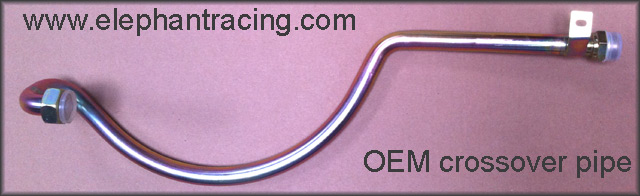

Crossover Pipe - OEM type - 1-91110773910

1B – Specialty Type

Specialty pipe interchanges with 1A. Fits all 65-89 heat exchangers/SSI/headers. Fits with 901/911/915 transaxles, does not fit G50 transaxle. Fits all clutches including early “pusher” styles. Crosses above the transmission, clear of the clutch / exchangers and delivering superior ground clearance. Allows you to swap exchangers without touching oil lines.

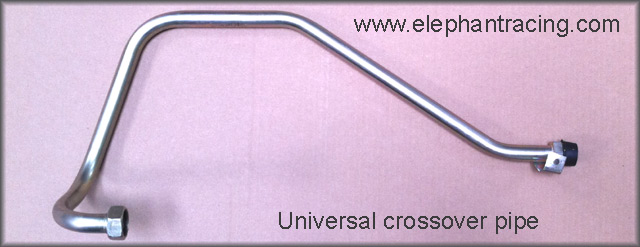

Universal Crossover Pipe - Specialty Type - 0180000
Application Table
Part No. Stock Equiv. Fitment & Configuration
0180000-1B - Specialty Type
1-91110773910911 107 739 101A - OEM type

2: Oil Tank To Thermostat For Porsche 911, 930

2: Oil Tank To Thermostat

2A – OEM type

OEM oil line connects oil tank to thermostat for 73-89 tanks. Can also be used with 65-71 oil tank by using our 26mm to 30mm adaptor. However, Cars 65-71 are recommended to use item 3C because they lack a wheel well channel to hold this line, tire clearance is thus limited.

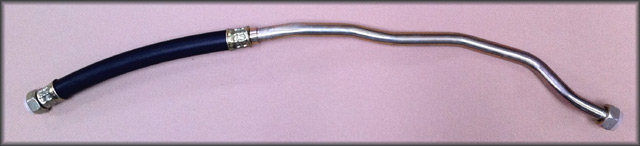

Oil Tank to thermostat - OEM type

2B – High Clearance ’73-’89 – Specialty Type

Specialty pipe interchanges with 3A and connects 73-89 oil tank to thermostat. Provides maximum clearance for fitting wide tires. Unlike the factory line that passes between the tire and the inner wheel well, this line arches above the tire to give superior tire clearance. The critical area between tank and tire is a purpose-formed hard line for maximum clearance.

High Clearance Oil Tank to thermostat '73-'89

2C – High Clearance ’65-’71 – Specialty Type

Specialty pipe interchanges with 3A and connects 65-71 oil tank (26mm fitting) to thermostat. Provides maximum clearance for fitting wide tires. Unlike the factory line that passes between the tire and the inner wheel well, this line arches above the tire to give superior tire clearance. The critical area between tank and tire is a purpose-formed hard line for maximum clearance. Cars 65-71 are higly recommended to use this line for improved tire clearance.

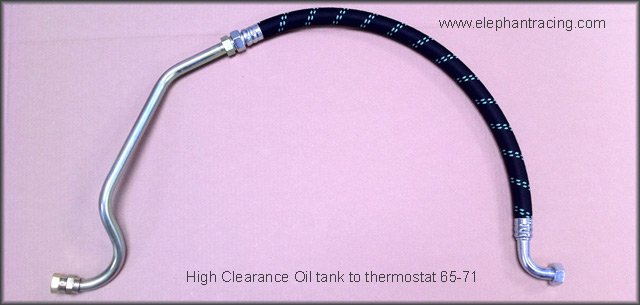

High Clearance Oil Tank to thermostat 65 to 71
Application Table
Part No. Stock Equiv. Fitment & Configuration
0210001-2C - '65-'71 High Clearance Specialty Type
0200000-2B - '73-'89 High Clearance Specialty Type
1-91110773011911 107 730 112A - OEM type

3: Crossover Pipe To Thermostat For Porsche 911, 930

3: Crossover Pipe To Thermostat

3A – OEM Type

OEM oil line connects crossover pipe to thermostat. Fits all 911/930 fitted with 1A or 1B. Does not fit 72 911. Cars 65-71 are recommended to use item 2B because they lack a wheel well channel to hold this line, tire clearance is thus limited.

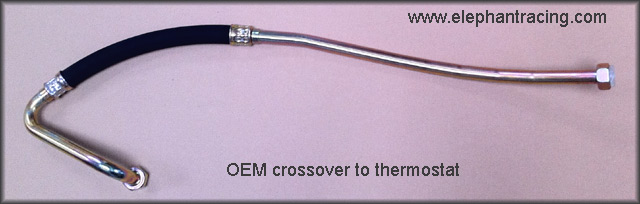

Crossover Pipe to Thermostat - OEM Type

3B – High Clearance Specialty Type

Specialty pipe interchanges with 2A and connects crossover pipe to thermostat. Provides maximum clearance for fitting wide tires. Unlike the factory line that passes between the tire and the inner wheel well, this line arches above the tire to give superior tire clearance. The critical area between tank and tire is a purpose-formed hard line for maximum clearance. Cars 65-71 are highly recommended to use this line for improved tire clearance.

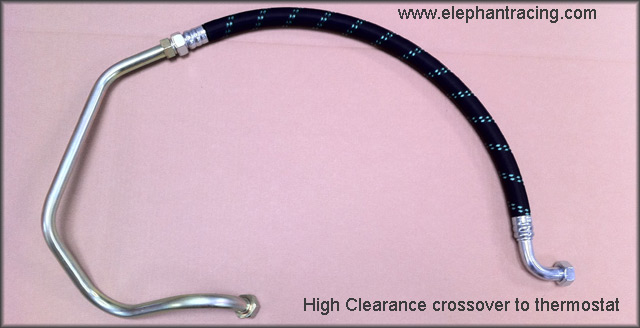

Crossover Pipe to Thermostat - High Clearance
Application Table
Part No. Stock Equiv. Fitment & Configuration
0210000-3B - High Clearance Specialty Type
1-91110772910911 107 729 103A - OEM type

4: Thermostat To Front Wheel Well: Supply Side For Porsche 911, 930

4: Thermostat To Front Wheel Well: Supply Side

4A – OEM Type

OEM oil line from thermostat to front wheel well, supply side along rocker. This is the line that is not bent around the jack receiver.

As equipped on ’74-’89 911/930.

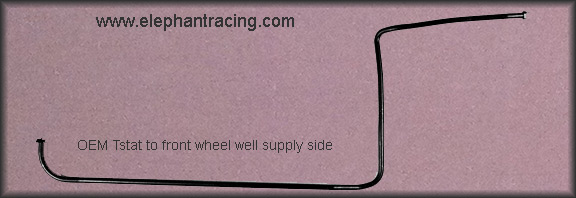

Thermostat to front wheel well supply side - OEM type

4B/4C – Finned Oil Line Specialty Type

Specialty line interchanges with 4A and connects from thermostat to front wheel well, supply side along rocker. Short fins on the tubing surface dissipate heat to supplement the oil cooler. This is the line that is not bent around the jack receiver.

As equipped on ’74-’89 911/930.

This supply line can be used on ’65-’71,’73 with ’74-’89 thermostat and components.

Find complete kits for all ’65-’89 911/930 on our oil cooler kits page.

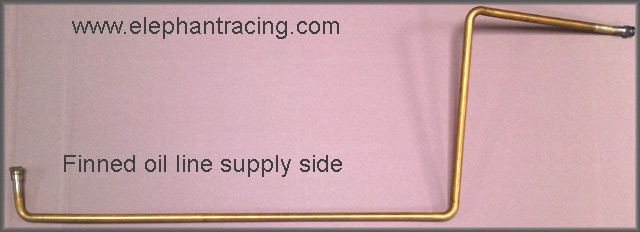

Thermostat to front wheel well supply side - Finned Specialty Type
Application Table
Part No. Stock Equiv. Fitment & Configuration
1-93020704501930 207 045 014A - OEM type
0060100-4C - Finned Specialty Type - '72 only
0020100-4B - Finned Specialty Type - '74-'89,
'65-'71,'73 w/ '74-'89 system

5: Thermostat To Front Wheel Well: Return Side For Porsche 911, 930

5: Thermostat To Front Wheel Well: Return Side

5A – OEM Type

OEM oil line from thermostat to front wheel well, return side along rocker. This is the line that is bent around the jack receiver.

As equipped on ’74-’89 911/930.

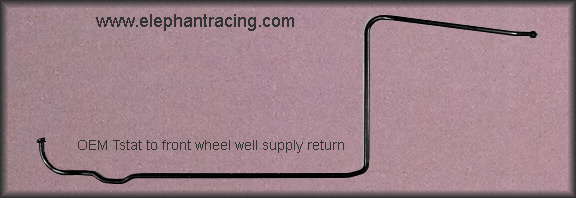

Thermostat to front wheel well return side - OEM type

5B/5C – Finned Oil Line Specialty Type

Specialty return pipe interchanges with 5A and connects from thermostat to front wheel well, return side along rocker. Short fins on the tubing surface dissipate heat to supplement the oil cooler.

As equipped on ’74-’89 911/930.

This return line can be used on ’65-’71,’73 with ’74-’89 thermostat and components.

Find complete kits for all ’65-’89 911/930 on our oil cooler kits page.

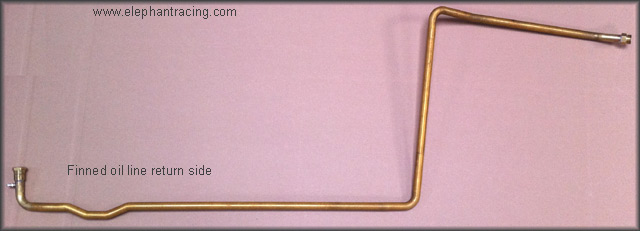

Thermostat to front wheel well return side - Finned Specialty Type
Application Table
Part No. Stock Equiv. Fitment & Configuration
1-93020704601930 207 046 015A - OEM type
0070100-5C - Finned Specialty Type - '72
0030100-5B - Finned Specialty Type - '74-'89,
'65-'71,'73 w/ '74-'89 system

6: Oil Flex Hose To Cooler Supply Side For Porsche 911, 930

6: Oil Flex Hose To Cooler Supply Side

6 – OEM Type

OEM oil flex hose from hard line to oil cooler, supply side / longer. As equipped on ’86-’89 911/930, can be used on all ’65-’89 equipped with 4A or 4B and fender mounted oil cooler.

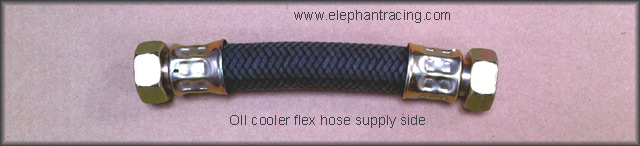

Oil flex hose to cooler supply side - OEM type
Application Table
Part No. Stock Equiv. Fitment & Configuration
1-93020711105930 207 111 056 - OEM Type

7: Oil Flex Hose To Cooler Return Side For Porsche 911, 930

7: Oil Flex Hose To Cooler Return Side

7 – OEM Type

OEM oil flex hose from hard line to oil cooler, return side / shorter. As equipped on 86-89 911/930, can be used on all 65-89 equipped with 4A or 4B and fender mounted oil cooler.

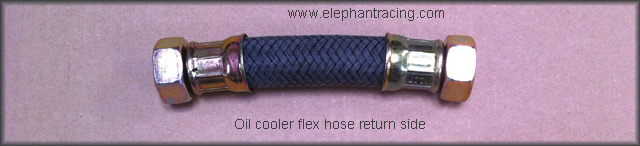

Oil flex hose to cooler return side - OEM type
Application Table
Part No. Stock Equiv. Fitment & Configuration
1-93020711304930 207 113 047 - OEM Type
  • “Your oiling bits are truly fantastic. They all fit perfectly.” Gene U. – Oiling System Upgrades
  • “I received the oil lines Tuesday and installed them yesterday. The lines are of excellent quality and fit perfectly. Great product. Thanks for the quick service.” Doug P. – Oil Lines

Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

  Pricing Quantity Configuration

Oil Lines

1: Crossover Pipe
$225.00 each
2: Oil Tank To Thermostat
$295.00 each
3: Crossover Pipe To Thermostat
$250.00 each
4: Thermostat To Front Wheel Well: Supply Side
$565.00 each
5: Thermostat To Front Wheel Well: Return Side
$565.00 each
6: Oil Flex Hose To Cooler Supply Side
$35.00 each
#1-93020711105
6 - OEM Type
1 req'd per car
7: Oil Flex Hose To Cooler Return Side
$35.00 each
#1-93020711304
7 - OEM Type
1 req'd per car
