Ball Joints

For Porsche 911, 912, 930

  • Restore original steering quality or add more negative camber with our selection of ball joints. Complete the installation with our ball joint hardware kit.



Stock Ball Joints For Porsche 911, 912, 930, 914

Stock Ball Joints

Ball Joints

Replace your tired ball joints to restore the original steering, worn ball joints degrade steering precision. Ball joints connect the front strut to the control arms and a failure causes loss of control. To avoid potential safety issues, street cars should replace at 100k miles, track cars more often.

Complete your installation with our ball joint hardware kit.

Watch this Quick Overview

Stock Ball Joints For Porsche 911, 912, 930, 914

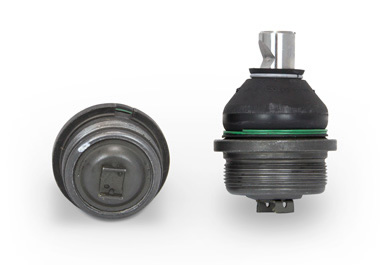

https://www.elephantracing.com/wp-content/uploads/OEM_ball_joint_side_bottom-150x102.jpg

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-91134104905

Porsche part number "911.341.049.05"

Stock ball joints, Porsche part #911.341.049.05

911.341.049.05
'72-'89 911/912/930/914
2 req'd per Car
1-90134104900

Porsche part number "901.341.049.00"

Stock ball joints, Porsche part #901.341.049.00

901.341.049.00
'69-'71 911/912/930/914
2 req'd per Car

Links for Stock Ball Joints



De-Cambered Ball Joints For Porsche 911, 912, 930, 914

De-Cambered Ball Joints

Easy Bolt-on To More Front Negative Camber

Need more camber? Elephant Racing’s proprietary-design De-Cambered Ball Joints provide up to 3/4 degree additional negative camber per side. Track is widened up to 1/2 inch.

The ball joint stud is non-concentric with the housing, effectively lengthening the control arm and pushing the bottom of the strut (and tire) out resulting in added negative camber.

Construction includes a true spherical bearing monoball for low-friction, freedom of movement and zero deflection.

Fully weather-sealed, De-Cambered Ball Joints are a true bolt-in using factory ball joint hardware.

  • Adds Up to -3/4 Degree Camber
  • Factory Hardware
  • Easy Bolt-On
  • Weather-sealed
  • Sold as pair

Watch this Quick Overview

De-Cambered Ball Joints For Porsche 911, 912, 930, 914

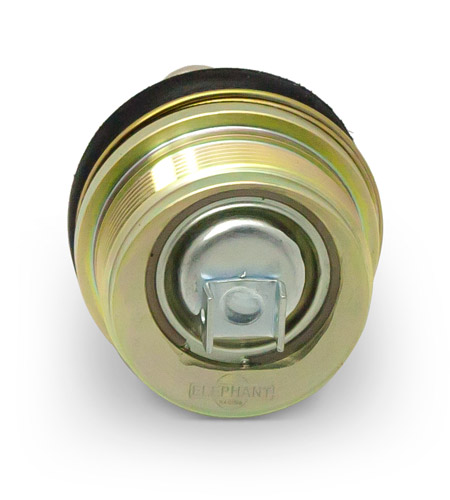

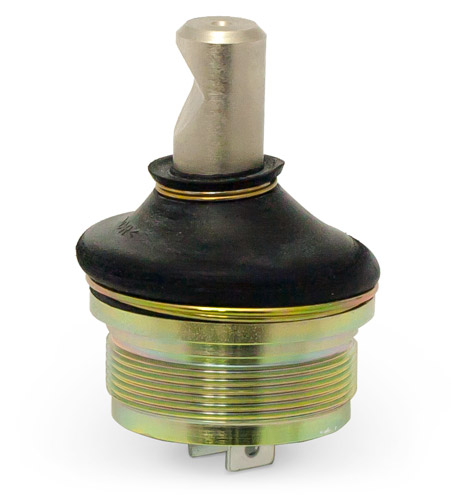

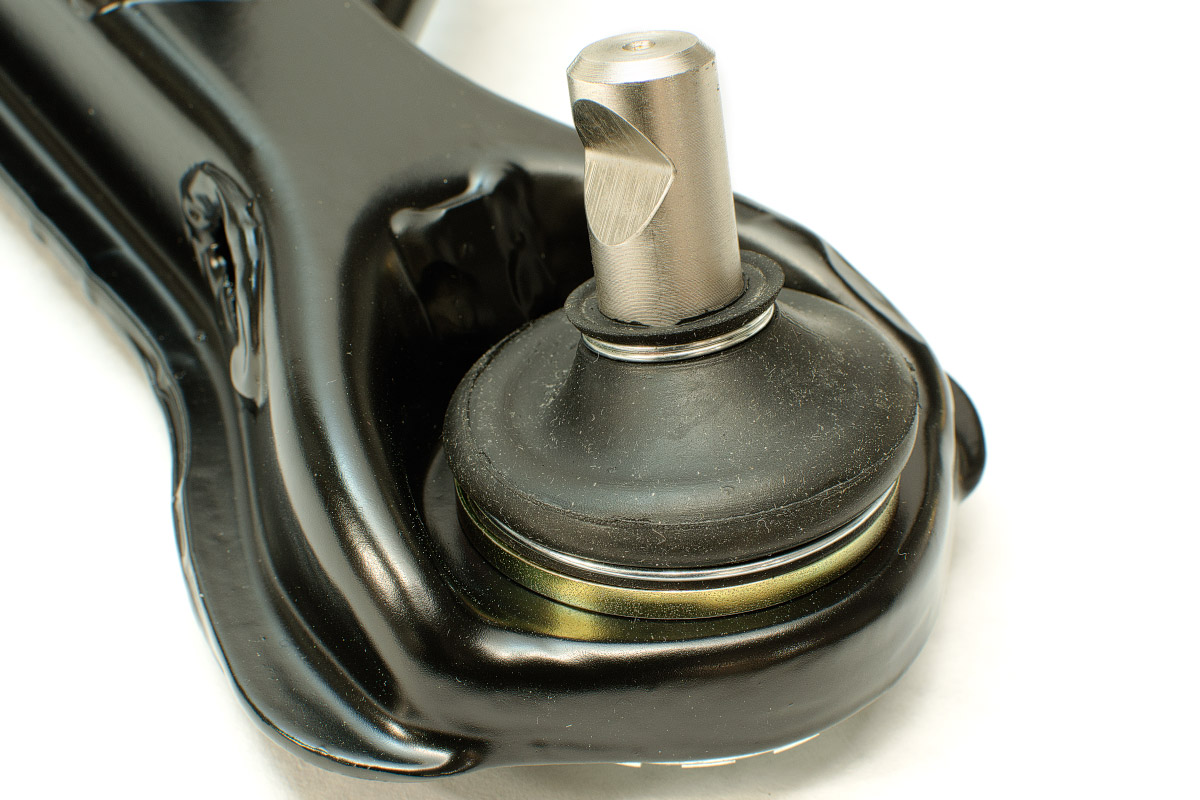

https://www.elephantracing.com/wp-content/uploads/de_cambered_ball_joints_back_500-135x150.jpgSide view of ball joint For Porsche 911/912/930https://www.elephantracing.com/wp-content/uploads/de_cambered_ball_joints_side_500-135x150.jpgSide view of ball joint For Porsche 911/912/930https://www.elephantracing.com/wp-content/uploads/decambered-ball-joint-for-porsche_001-150x100.jpgDe-cambered ball joint for Porsche 911, 912, 930, and 914

Application Table

Part No. Stock Equiv. Fitment & Configuration
2081500

Porsche part number "911.341.049.05"

De-cambered ball joints, Porsche part #911.341.049.05

911.341.049.05
'72-'89 911/912/930/914
1 pair, req'd per Car
2081900

Porsche part number "911.341.049.04"

De-cambered ball joints, Porsche part #911.341.049.04

911.341.049.04
'69-'71 911/912/930/914
1 pair, req'd per Car

Links for De-Cambered Ball Joints



Adjustable Ball Joints For Porsche 911, 912, 930

Adjustable Ball Joints

Easy Bolt-on To More Front Negative Camber

These adjustable ball joints provide increased camber adjustment for cars with the 1965-1968 lower control arms.

Available in two configurations:

1. Cars with original struts use the threaded stud type.
2. Cars upgraded to later 1972-1989 type struts use the wedge pin type.

Watch this Quick Overview

Adjustable Ball Joints For Porsche 911, 912, 930

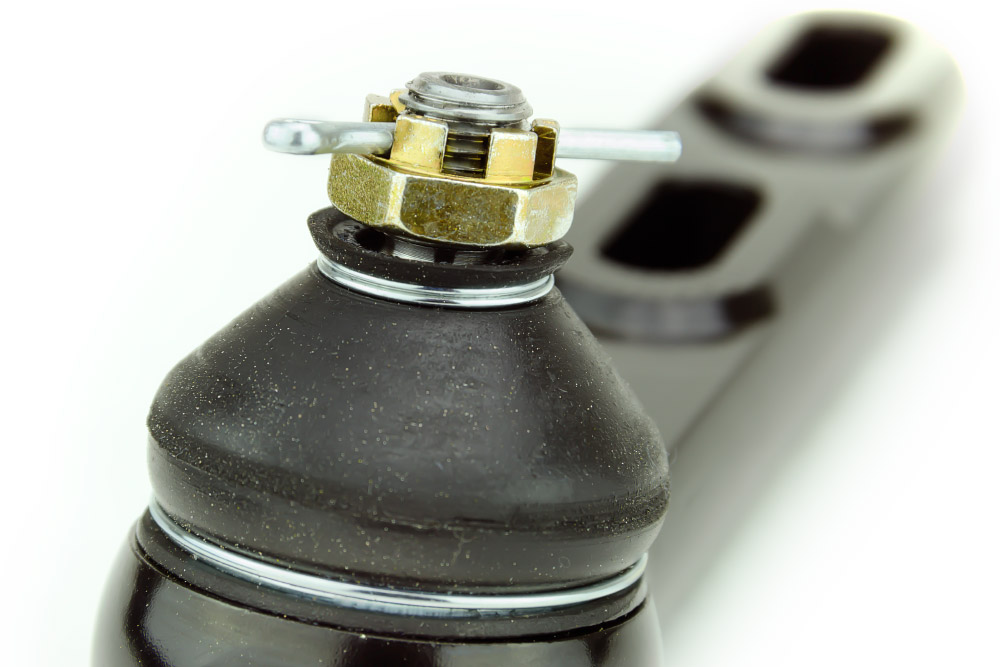

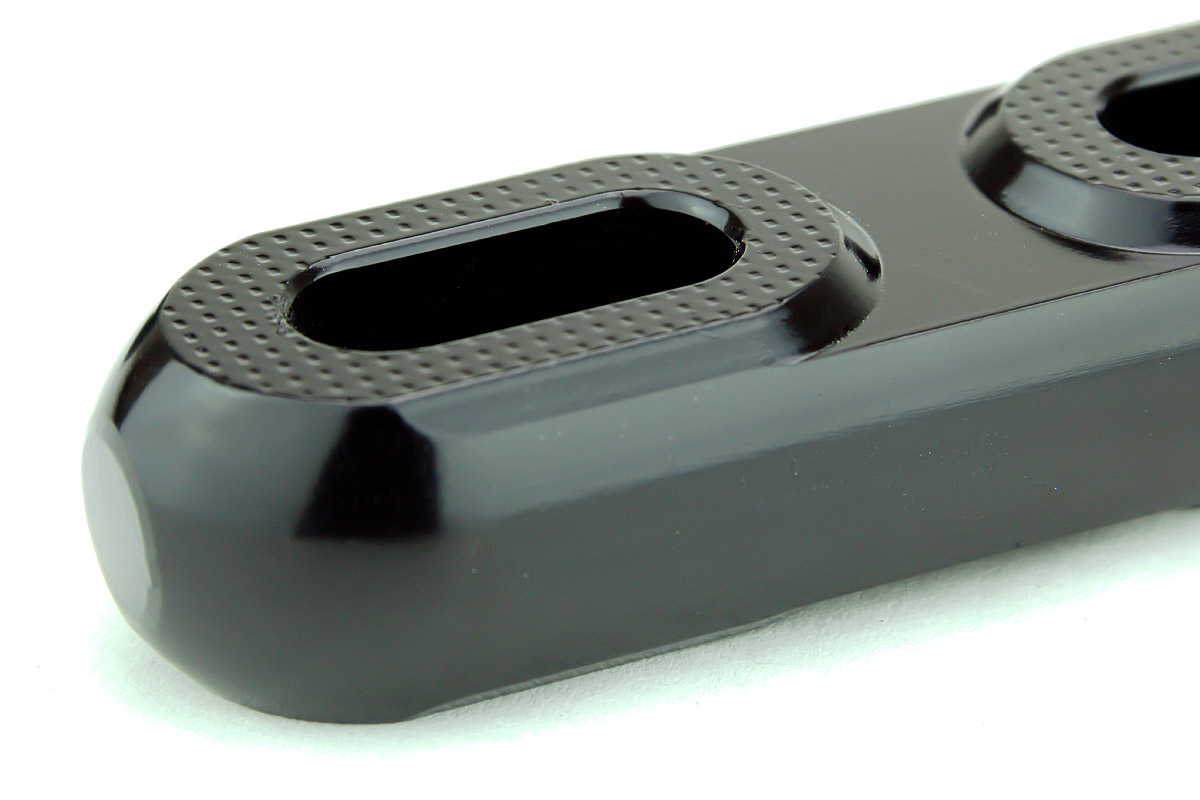

https://www.elephantracing.com/wp-content/uploads/2081503_ball_joint_detail_001-150x100.jpgBall joint detail on the Porsche 911 & 914 adjustable ball joints.https://www.elephantracing.com/wp-content/uploads/2081503_ball_joint_detail_002-150x100.jpgMounting surface detail on the Porsche 911 & 914 adjustable ball joints.

Application Table

Part No. Stock Equiv. Fitment & Configuration
2081502

Porsche part number "911 341 049 04"

Adjustable ball joints, Porsche part #911-341-049-04

911 341 049 04
'65-'68 911 & 912 for wedge-pin type strut
2 req'd per Car
2081503

Porsche part number "911 341 049 05"

Adjustable ball joints, Porsche part #911-341-049-05

911 341 049 05
'65-'68 911 & 912 for threaded type strut
2 req'd per Car

Links for Adjustable Ball Joints



Sebro Style Ball Joints For Porsche 911, 912

Sebro Style Ball Joints

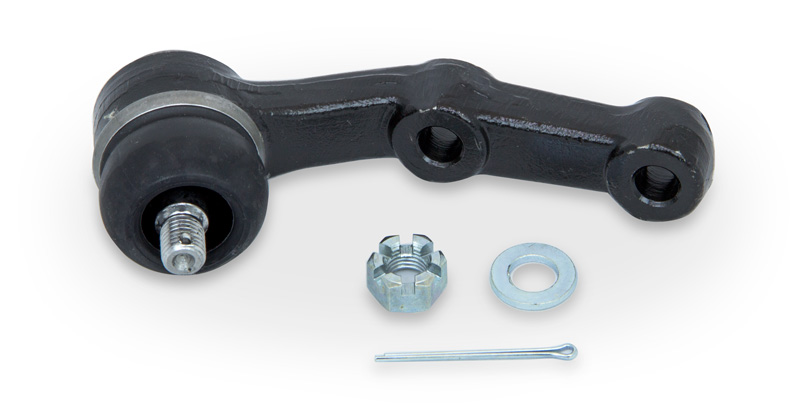

Early Sebro Style Ball Joints

This Sebro style ball joint was used on early ’65 thru ’68 911 and 912 vehicles. This is what you’re early car uses unless it has a newer front suspension installed.

Watch this Quick Overview

Sebro Style Ball Joints For Porsche 911, 912

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-90134104700

Porsche part number "901 341 047 00"

Sebro style ball joints, Porsche part #901-341-047-00

901 341 047 00
'65-'68 911, 912 Sebro style
2 req'd per Car

Links for Sebro Style Ball Joints



Ball Joint Hardware Kits For Porsche 911, 912, 930, 914

Ball Joint Hardware Kits

Complete Your Ball Joint Installation

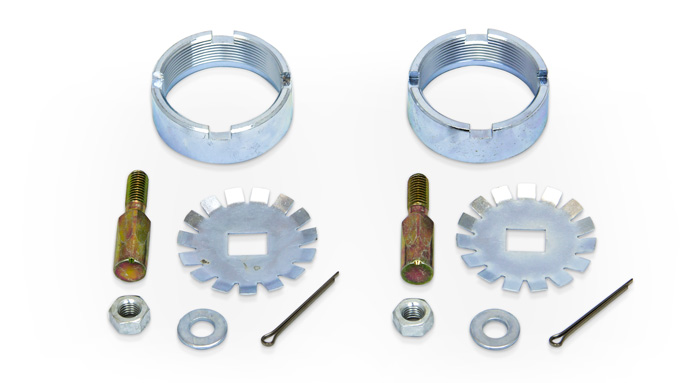

Complete your ball joint installation with our hardware kit. The kit includes threaded ring, pin and lock plate – all required factory hardware.

2081901 ’69-71 Kit Includes:

901 341 425 00 – Grooved Nut (2)
901 341 426 00 – Tab Washer (2)
N 012 521 1 – Cotter Pin (2)
M10x35 HHCS (2)

2081501 ’72+ Kit Includes:

901 341 425 00 – Grooved Nut (2)
901 341 426 00 – Tab Washer (2)
N 012 521 1 – Cotter Pin (2)
911 341 119 06 – Threaded Pin (2)
Nut (2)
Flat Washer (2)

Watch this Quick Overview

Ball Joint Hardware Kits For Porsche 911, 912, 930, 914

Application Table

Part No. Stock Equiv. Fitment & Configuration
2081501-'72-'89 911/912/930,
'72-'76 914
1 pair, req'd per Car
2081901-'69-'71 911/912/930,
'69-'71 914
1 pair, req'd per Car

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Front

Stock Ball Joints for Porsches
Stock Ball Joints
$115.00 each
De-Cambered Ball Joints for Porsches
De-Cambered Ball Joints
$430.00 pair
Adjustable Ball Joints for Porsches
Adjustable Ball Joints
$375.00 each
Sebro Style Ball Joints for Porsches
Sebro Style Ball Joints
#1-90134104700
'65-'68 911, 912 Sebro style
2 req'd per car
$265.00 each
Ball Joint Hardware Kits for Porsches
Ball Joint Hardware Kits
$98.00 pair
