Bulk Hose and Hose Ends

For Porsche 914-6

  • Need to assemble your own custom oil hose?
  • We have the individual parts you need including hose ends and hose to assemble the specialized oil hoses for your Porsche.

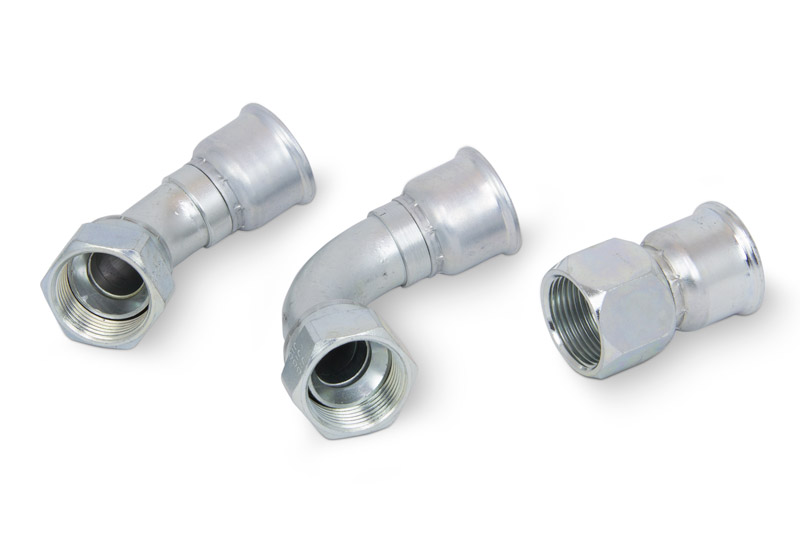

AN-16 Hose Ends for Porsche Fitment For Porsche 911, 930, 964, 993

AN-16 Hose Ends for Porsche Fitment

Ball Joints

Need to mix AN-16 and 30mm metric fittings on the same car or even the same hose? We have it covered. Choose from straight, 45 and 90 degree AN-16 hose ends that fit the same hoses listed below.

These hose ends fit the same 22mm or 7/8 inch ID hose as our 30mm metric hose ends. That let’s you make a single hose with 30mm fitting on one end and AN-16 on the other. You can then connect AN-16 coolers and fittings to your 30mm Porsche cooling system without the need for adaptors.

Our AN-16 hose ends are crimp-on-type and have hose barb for use with 22mm or 7/8 inch ID hose. The appearance is visually similar to our 30mm hose ends. All hose ends include one crimp collar and one tube nut.

AN-16 Hose Ends for Porsche Fitment For Porsche 911, 930, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
AN16-45-AN-16 45 degree hose end
AN16-90-AN-16 90 degree hose end
AN16-00-AN-16 Straight hose end

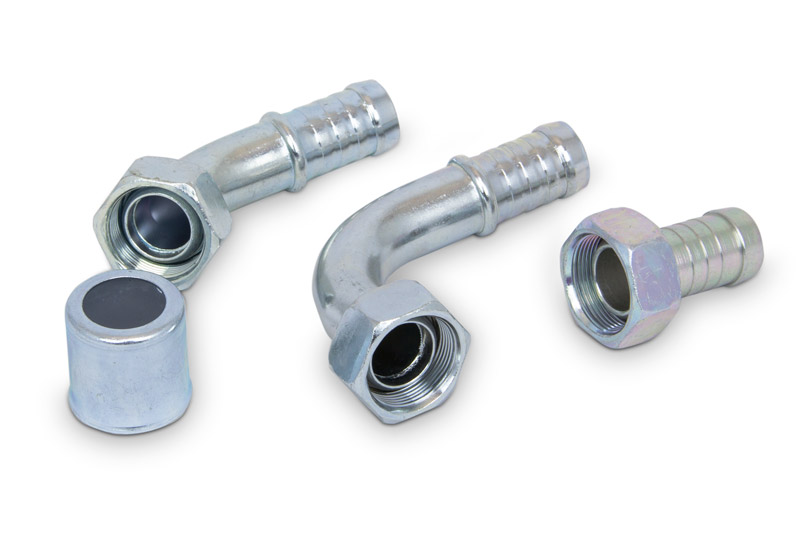

30mm Metric Hose Ends for Porsche Fitment For Porsche 911, 930, 914, 964, 993

30mm Metric Hose Ends for Porsche Fitment

We have straight, 45 and 90 degree 30mm (thread size) metric hose ends that fit 72 to 89 Porsche 911/930 oil coolers, thermostats, case fittings and more. Use our hose ends to build custom hoses.

This same 30mm size is typically used for 65-71 911s when retrofitting and external oil cooler.

Our 30mm hose ends are crimp-on-type and have hose barb for use with 22mm or 7/8 inch ID hose. All hose ends include one crimp collar and one tube nut.

Crimp collars fit 32mm OD hoses including all on this page, and may be ordered separately. Crimping requires a specialized tool and can be performed by Elephant Racing or a local hydraulic hose repair shop or many automotive AC repair shops.

30mm Metric Hose Ends for Porsche Fitment For Porsche 911, 930, 914, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
0190001-30mm 90 degree hose end
0190000-30mm 45 degree hose end
0190002-30mm Straight hose end

Bulk Hose For Oil Line Fabrication For Porsche 911, 930, 914-6, 964, 993

Bulk Hose For Oil Line Fabrication

Make Custom Oil Lines To Fit Your Needs

Bulk oil hose available by the foot. 22mm (7/8ths) ID fits 30mm metric hose ends and AN-16 hose ends listed on this page.

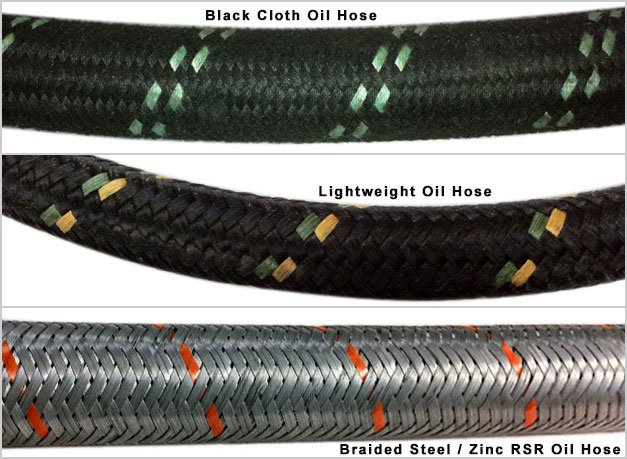

Black Cloth Oil Hose – Hose has an outer sheath of black cloth with a green ribbon. Internal core is reinforced with a wire mesh for superior abrasion protection and crush resistance. The outer cloth prevents chaffing of contacted bodywork. Rated for motor oil, 5000 psi, and 300F.

Lightweight Oil Hose – Black fiber outer sheath has a green and orange ribbon. Similar to the Black Cloth Oil Hose, but does not have an internal wire mesh. Rated for motor oil, 5000 psi, and 300F.

Braided Steel / Zinc RSR Oil Hose – This is the exact hose used in the 73 RSR racecars. Hose has an outer sheath that is zinc plated steel, with an orange ribbon. Zinc plating has a dull finish that is retro-original. This is what you want for an RSR restoration or re-creation. Rated for motor oil, 5000 psi, and 300F.

Bulk Hose For Oil Line Fabrication For Porsche 911, 930, 914-6, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-7-8flex-Lightweight oil hose
1-7-8hose-Black cloth oil hose
1-22x31zincbraid-Braided steel - zinc RSR oil hose

30mm Oil Line Tube Nut Replacement Kit For Porsche 911, 930, 964, 993

30mm Oil Line Tube Nut Replacement Kit

Save Expensive Thermostats And Oil Lines

It’s a common problem when removing oil lines from the external thermostat. The aluminum thermostat threads become fused to the steel tube nut that secures the oil lines. If you get enough leverage to force the nut free, it takes the aluminum threads along with it – destroying the expensive thermostat and the oil line.

Elephant Racing has the solution; we are manufacturing a 30mm tube nut replacement kit that let’s you save thermostats and oil lines. If your oil lines won’t come free from the thermostat, use a cut-off wheel to slit the side of the tube nut. You can then break the nut free using a cold chisel. This technique sacrifices the tube nut to save the expensive thermostat.

You then use our kit to replace the tube nut that was cut off. Both the oil line and the thermostat are saved.

The kit provides a 2-piece tube nut. The threaded nut fits over the end of the tube and is slipped on first. A spring lock ring is then slipped on. The spring lock ring cinches down on the tube, preventing the nut from coming off.

Oil line tube nut installed

Kit Installed on Oil Line

30mm Oil Line Tube Nut Replacement Kit For Porsche 911, 930, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
0170000-'65-'98 Porsche 911, 930, 964, 993

Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Hose Ends With Crimp Collar

AN-16 Hose Ends for Porsche Fitment for Porsches
AN-16 Hose Ends for Porsche Fitment
$55.00 each
30mm Metric Hose Ends for Porsche Fitment for Porsches
30mm Metric Hose Ends for Porsche Fitment
$65.00 each

Builk Hose For Oil Lines

Bulk Hose For Oil Line Fabrication for Porsches
Bulk Hose For Oil Line Fabrication
$18.00 ft

Oil fittings and unions

30mm Oil Line Tube Nut Replacement Kit for Porsches
30mm Oil Line Tube Nut Replacement Kit
#0170000
'65-'98 Porsche 911, 930, 964, 993
2 req'd per car
$55.00 each
