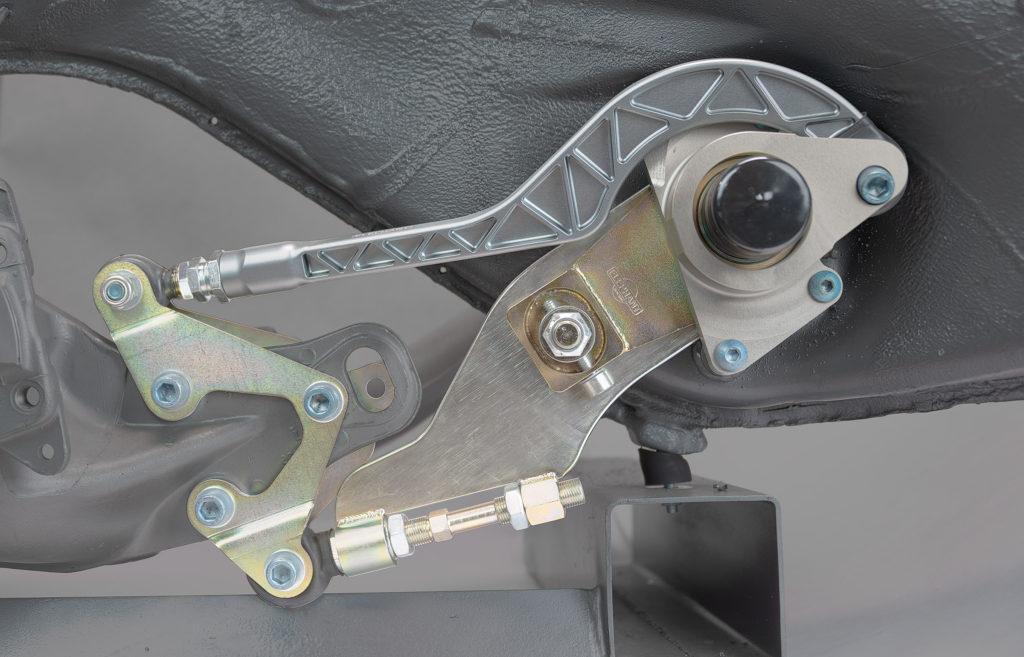

ASP™ Adjustable Spring Plate
For Porsche 911, 912, 930
More Grip, Better Tire Contact Patch
Updates the rear suspension camber curve to meet the needs of modern, wide, low-profile radial tires. The result is superior grip in turns, superior grip in straight-line braking, reduced tire wear. Excellent for both street and track.
- Improved contact patch in turns
- Improved contact patch for straight-line braking
- Go street-to-track with one camber setting
- Reduced tire wear
- Reduced camber thrust/rolling resistance

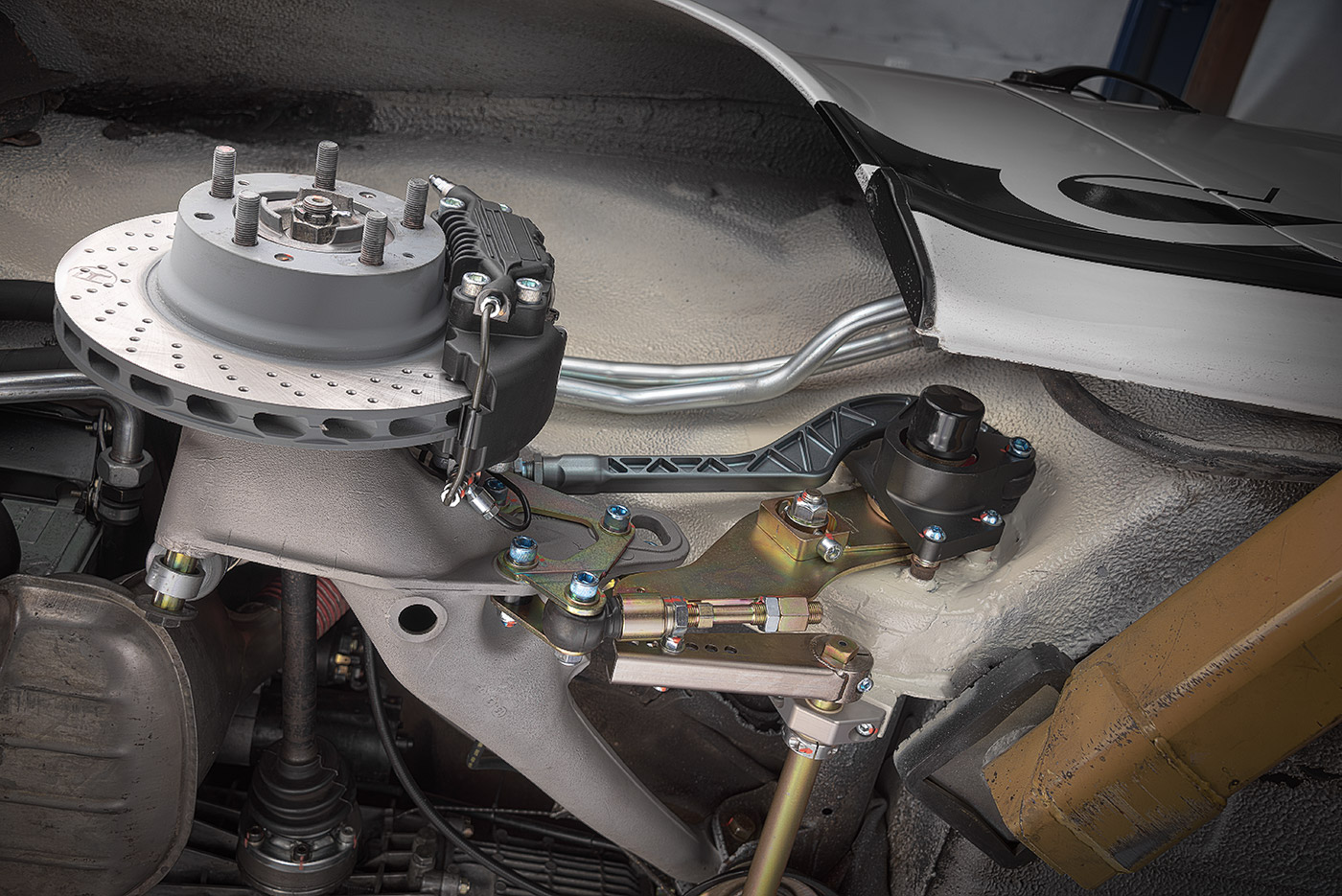

Modern Suspension Performance Because ASP Makes The Tire Gain Camber Faster
As the suspension compresses in turns, countering the effects of body roll and matching the needs of modern radial tires. The tire remains square with the road surface and the contact patch is improved. Grip increases.
With the ASP, ’69-’89 911s can now achieve modern suspension performance.

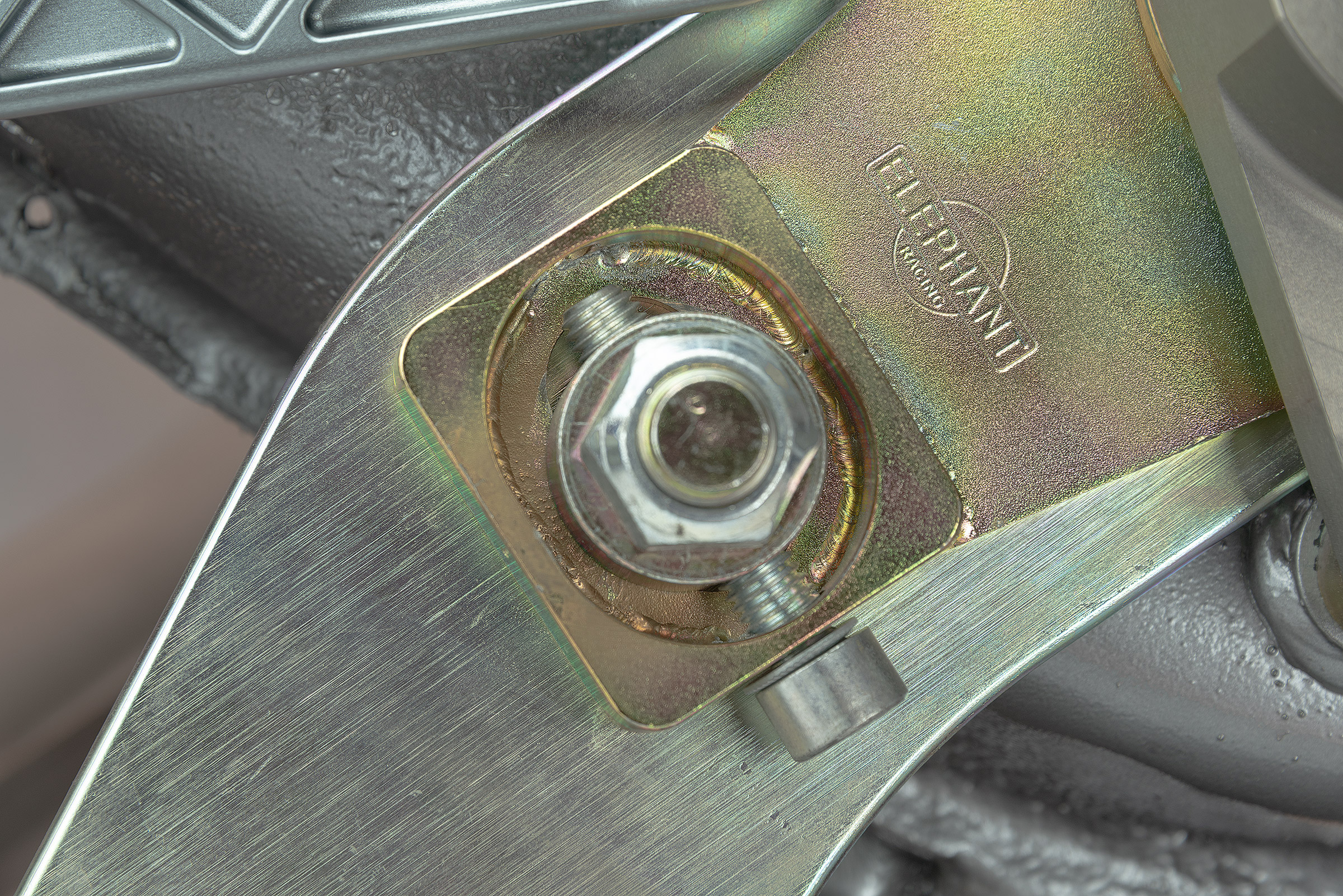

Fully weather-sealed bearings

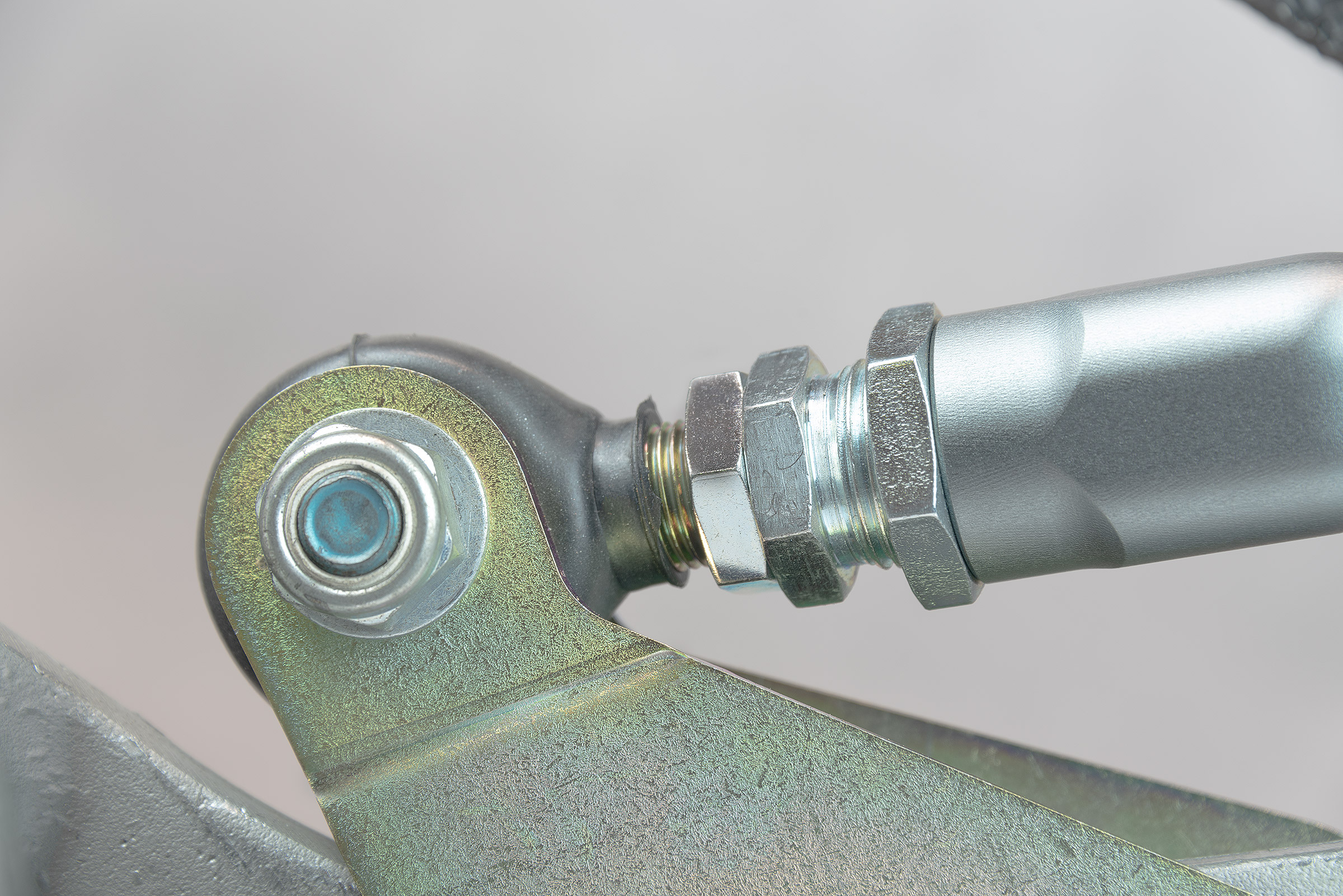

ASP double-adjuster detail

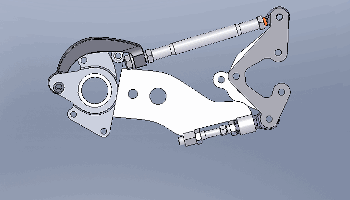

ASP Kinematics
How Does It Work?
The 911 suspension was designed in the early 1960s for narrow, high-profile, bias ply tires of the day. ’60s bias ply tires did not need or like a lot of negative camber.
Fast forward 60+ years to today – tire technology has progressed – we run wide, low-profile, radial tires. Modern tires need a lot of negative camber to grip well. No surprise, the 911 suspension designed in the 1960’s doesn’t match the needs of today’s tires.
All modern Porsches are designed with aggressive camber curves matching radial tires needs beginning with the 1990 911(964) and continuing through the current models. Our ASP updates the early 911 suspension to similarly perform with modern radial tires.
The core problem is illustrated by the stock blue 911 pictured, the tires follow the lean of the car in the turn – causing poor contact as the tires roll over onto the outside edge. The rate of camber gain is too slow, grip suffers.
Stock suspension problem, not enough camber gain
Easy To Setup Toe And Camber Independantly
Replaces the troublesome stock eccentric adjusters with simple double-adjusters.
ASP allows adjustment with vehicle weight resting on the tires making it easy to read a camber / toe gauge while turning the adjusters. Quick changes can be made trackside even if a camber gauge is not available.

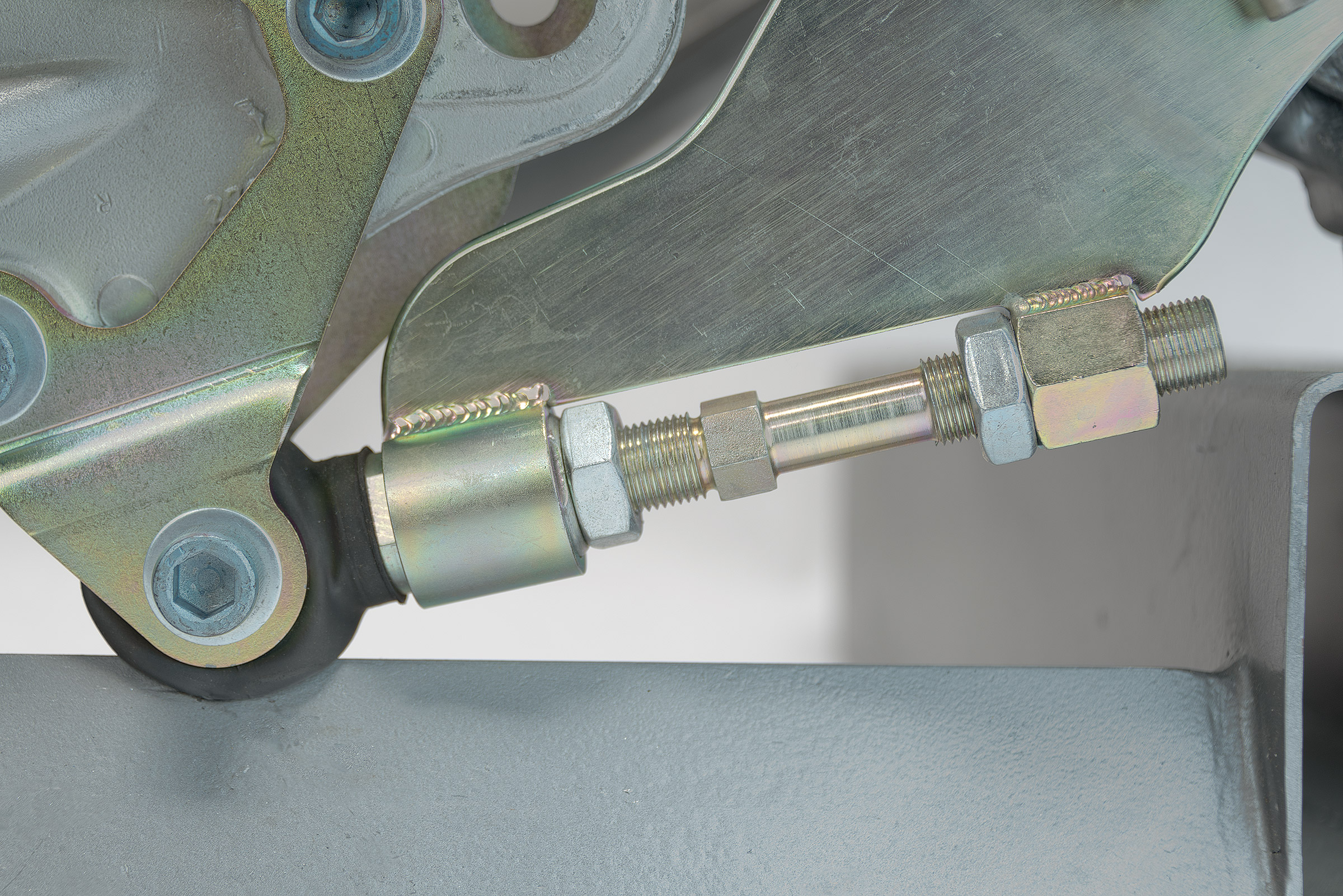

- Upper and lower double-adjusters
- Rotate same direction to set toe
- Rotate opposite direction to set static camber
Replaces stock ’69-’89 spring plate blade and spring plate cover. Bolt on – no welding required, works with torsion bars or coilovers. Use with any standard size bushing – not included – PolyBronze recommended. Requires the splined hub portion from a set of factory adjustable spring plates or the QuickChange Spring Plate splined hub. Download instructions below for more information.
- Note – ASP can be fit to 911 series cars from ’69 to ’89. ASP works in combination with the splined hub portion of the factory adjustable spring plates as equipped on ’77-’89 models. ’69-’76 model cars will require donor splined hubs from a ’77-’86 model car. Alternatively, cars from ’69-’86 may use Elephant Racing’s QuickChange‘ Spring Plate splined hub.

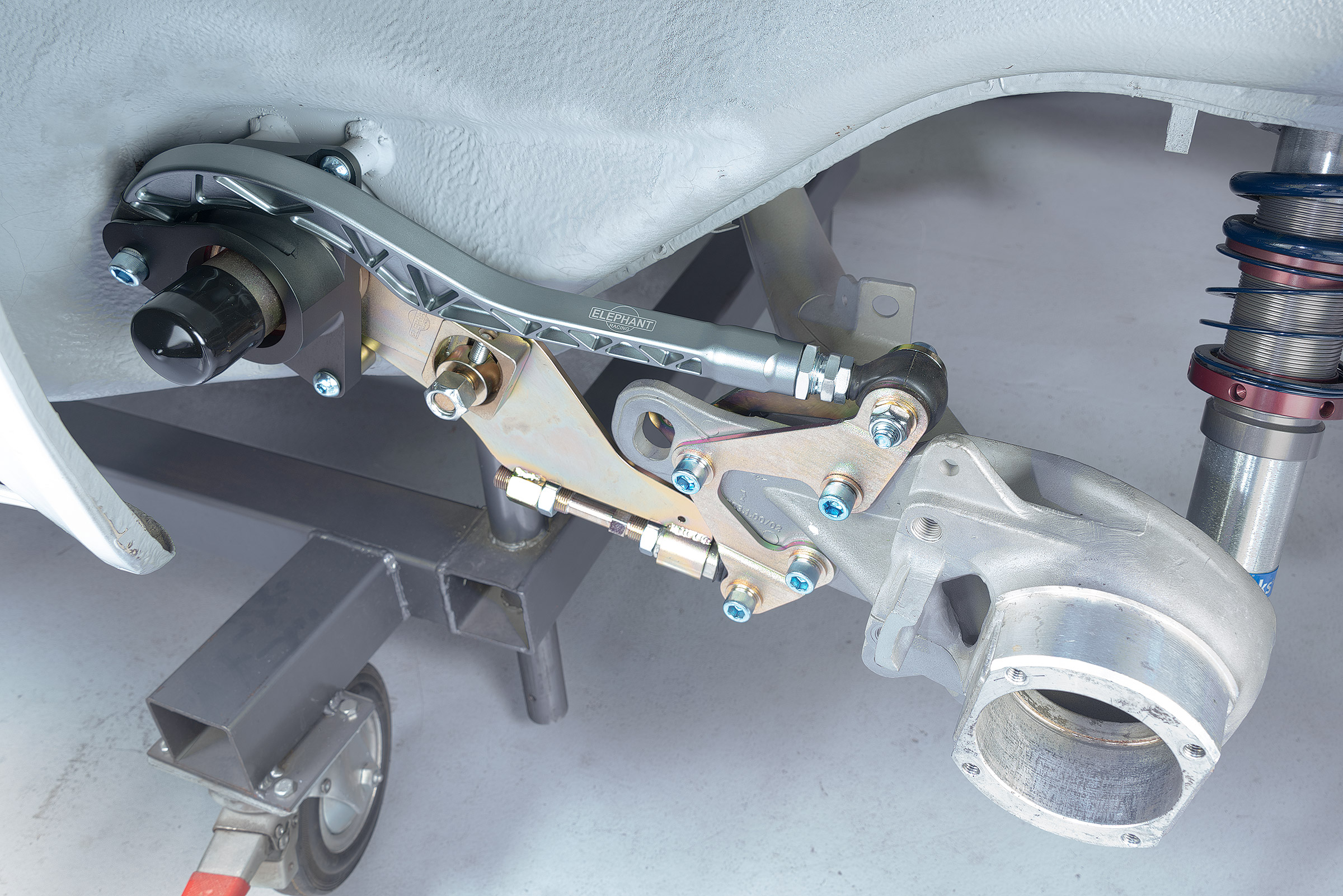

- Note – Some images show the ASP pictured with optionally available QuickChange Splined Hub and PolyBronze Bearings. Trailing arm is not included and is shown for reference only.
https://www.elephantracing.com/wp-content/uploads/Active_Spring_Plate_For_Porsche_911_Adjustment_002-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/Active_Spring_Plate_For_Porsche_911_Adjustment_003-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/Active_Spring_Plate_For_Porsche_911_Adjustment_001-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/Active_Spring_Plate_For_Porsche_911_002-150x96.jpgApplication Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2142100 | - | '69 - '89 911, 912, 930 1 kit req'd per Car |
Links for ASP™ Adjustable Spring Plate
Speak to an expert: 1.408.297.2789
