Low Friction Control Arm Mounts

For Porsche 914

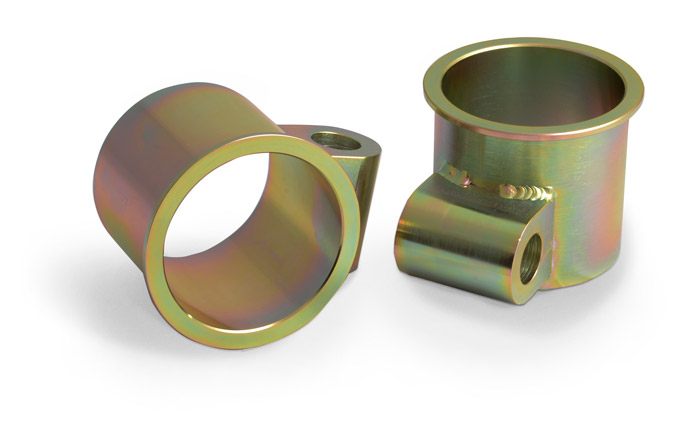

Low Friction Control Arm Mount

Low-Friction Control Arm Mounts For Porsche 911, 912, 930, 914

Non-Binding, Friction- Free Movement

Elephant Racing’s proprietary-design Low-Friction Control Arm Mounts allow for free control arm movement, eliminating any potential for binding. We’ve corrected a key factory design limitation; our mounts self-align in all axis, becoming collinear to avoid binding as the arm moves through its range of motion.

Factory Mounts and Binding

911 series and 914 factory control arm mounts pivot allow for self-alignment in the horizontal plane only. Any misalignment in the vertical plane results in pinching and binding at the bushing that resists free movement of the control arm.

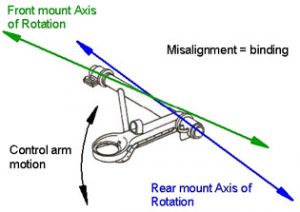

Non-colinear axis binding

Factory mounting points (stamped sheet metal) are imprecise at best and can be substantially off due to frontal impacts, pot holes, or suspension pan replacement. If the mounts are not collinear, the control arm will bind with any performance bushing compound or bearing.

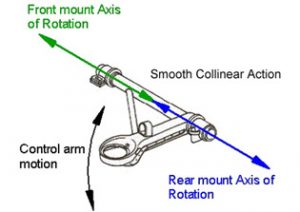

Self-Aligning Low-Friction Mounts

Our Low-Friction Control Arm Mounts self-align in both the horizontal and vertical planes. The result is collinear front and rear mounts delivering smooth non-binding action. You get superior performance and a smoother ride.

911-spherical-bearing-colinear-axis_001

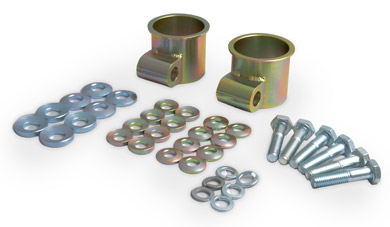

Control Arm Mount Kit

Kit includes everything required to upgrade one car. Factory rear mounts are replaced with our self-aligning mounts. Factory front mounts are retained and augmented with self-aligning washers.

With this kit installed, both front and rear control arm mounts self-align in both vertical and horizontal planes. They become collinear, allowing free non-binding motion of the control arm.

Our mounts replicate the factory form factor and work in conjunction with Polybronze bearings, polyurethane, or any other hard compound bushing or bearing. Fits both aluminum and steel suspension cross-members.



Watch this Quick Overview

 For Porsche 911, 912, 930, 914

Application Table

Part No. Stock Equiv. Fitment & Configuration
2071600-For '68-'89 911, 912, 930, 914
1 pair, req'd per Car

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Low Friction Control Arm Mount

Low-Friction Control Arm Mounts for Porsches
Low-Friction Control Arm Mounts
#2071600
For '68-'89 911, 912, 930, 914
1 pair, req'd per car
$275.00 pair
