Shock Absorbers & Strut Inserts

For Porsche 911, 912, 930

Choose between top-performing products from Von Shocks or more economical Bilstein shocks.

Von Shocks – Delivers performance and features not available in any other shock for the 911. Available as shocks alone, or as a Von Coilover System™ – including shocks packaged as a complete coilover system.

Valving – Von shocks are available in a choice of standard core valving levels, each engineered to balance popular torsion bar/spring pairings.

Pair-Matched Performance – Von shocks are hand-built and tested on a computer shock dyno. Von shocks are pair-matched for consistency unrivaled by any mass-produced shock.Each matched pair is serialized and delivered with the dyno sheets for the actual pair you receive. learn more.

Von Street Shock Inserts

Von Shocks Delivers performance and features not available in any other shock for these cars. Available as shocks alone, or as a Von Coilover System™.

Hand Built & Tested

Von shocks are hand-built and tested on a computer shock dyno. Von shocks are pair-matched for consistency unrivaled by any mass-produced shock.

Each matched pair is serialized and delivered with the dyno sheets for the actual pair you receive.

Regardless of brand, identically Configured shocks can generate widely varying damping forces. All shocks are built with manufacturing tolerances that make damping forces deviate from the design target.

Despite using good designs and precision components, the best commercial shock manufactures accept finished product tolerances that are typically +/-15%. That means that by luck of the draw two new, “identical”, tested-good shocks picked from the shelf could vary in damping forces by up to 30%. Cheap shocks can be much worse!

Each Von shock is hand built and every single shock is tested on our computer shock dyno. Using the batch’s dyno plots, we hand select pairs that have similar performance curves. The shocks are then delivered as matched pairs.

Pair-Matched Performance

Pair-matching allows Von shocks to deliver performance consistency that is unrivaled. You are assured that your shocks are tested and will function as a pair to deliver matching damping performance.

Available in two Configurations – You can choose double adjustable (rears only) damping or tuned and fixed damping.

Fixed System – This is a perfectly balanced system with fixed rebound and compression rate. Tuned based on selected performance level chosen. Available for rear shocks and front inserts.

Levels – Choose from 5 standard core valving levels, each tuned to specific torsion bar sizes / spring rates:

  • Level 0 – 18.8/25mm – stock
  • Level 1 – 21/28mm
  • Level 2 – 22/29mm
  • Level 3 – 23/31mm
  • Level 4 – 24/33mm

Coilover capable – Convert to coilover using our threaded sleeve kits.

Shorter Length – Provides more suspension travel for lowered cars.

Monoball Lower Mount – Spherical bearing eliminates rubber compression.

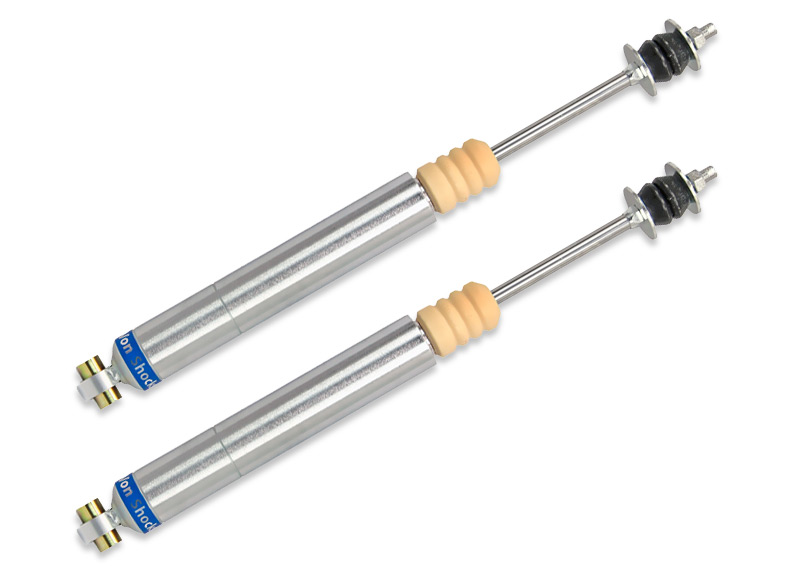

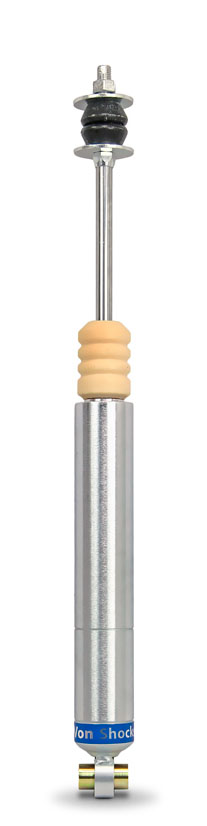

Von Street Rear Shocks for Porsche 911 and 914

Von Shock Rear Shocks

Von Shock Front Inserts for Porsche 911 and 914

Von Shock Front Inserts

Front Von Street Inserts

Application Table
Part No. Stock Equiv. Fitment & Configuration
2300500-'65-'89 911/912/930/914, Level 0 for Bilstein strut
2300501-'65-'89 911/912/930/914, Level 1 for Bilstein strut
2300501-xt-'65-'89 911/912/930/914, Level 1 Safari, for Bilstein strut
2300502-'65-'89 911/912/930/914, Level 2 for Bilstein strut
2300502-xt-'65-'89 911/912/930/914, Level 2 Safari, for Bilstein strut
2300503-'65-'89 911/912/930/914, Level 3 for Bilstein strut
2300503-xt-'65-'89 911/912/930/914, Level 3 Safari, for Bilstein strut
2300504-'65-'89 911/912/930/914, Level 4 for Bilstein strut
2300504-xt-'65-'89 911/912/930/914, Level 4 Safari, for Bilstein strut
2300600-'68.5-'85.4 911/912/930/914, Level 0 for Boge strut 10/68-3/85
2300601-'68.5-'85.4 911/912/930/914, Level 1 for Boge strut 10/68-3/85
2300602-'68.5-'85.4 911/912/930/914, Level 2 for Boge strut 10/68-3/85
2300603-'68.5-'85.4 911/912/930/914, Level 3 for Boge strut 10/68-3/85
2300604-'68.5-'85.4 911/912/930/914, Level 4 for Boge strut 10/68-3/85
2300700-'85.5-'89 911/912/930/914, Level 0 for Boge strut 4/85-89
2300701-'85.5-'89 911/912/930/914, Level 1 for Boge strut 4/85-89
2300702-'85.5-'89 911/912/930/914, Level 2 for Boge strut 4/85-89
2300703-'85.5-'89 911/912/930/914, Level 3 for Boge strut 4/85-89
2300704-'85.5-'89 911/912/930/914, Level 4 for Boge strut 4/85-89

Rear Von Street Shocks

Application Table
Part No. Stock Equiv. Fitment & Configuration
2300100-'72-'89 911/912/930, Level 0
2300101-'72-'89 911/912/930, Level 1
2300101-xt-'72-'89 911/912/930, Level 1, Safari
2300102-'72-'89 911/912/930, Level 2
2300102-xt-'72-'89 911/912/930, Level 2, Safari
2300103-'72-'89 911/912/930, Level 3
2300103-xt-'72-'89 911/912/930, Level 1, Safari
2300104-'72-'89 911/912/930, Level 4
2300104-xt-'72-'89 911/912/930, Level 4, Safari
2301000-'65-'71 911/912, Level 0
2301001-'65-'71 911/912, Level 1
2301001-xt-'65-'71 911/912, Level 1, Safari
2301002-'65-'71 911/912, Level 2
2301002-xt-'65-'71 911/912, Level 2, Safari
2301003-'65-'71 911/912, Level 3
2301003-xt-'65-'71 911/912, Level 3, Safari
2301004-'65-'71 911/912, Level 4
2301004-xt-'65-'71 911/912, Level 4, Safari

Bilstein HD Shocks and Inserts

HD shocks were a factory available performance upgrade on 911s and standard equipment on 911 turbos. They provide good ride quality and control for cars with stock torsion bars.

In-house services are available to upgrade, test, modify, and renew your HD shocks.

Bilstein HD Shocks and Inserts for Porsche 911 & 914

Front Bilstein HD Inserts

Application Table
Part No. Stock Equiv. Fitment & Configuration
1-p360114p360114'85.5-'89 911/912/930/914 for Boge strut
1-p360112p360112'68.6-'85.4 911/912/930/914 for Boge strut
1-p360111p360111'65-'68.5 911/912 for Boge strut
1-r365001r365001'65-'89 911/912/930/914 for Bilstein strut

Rear Bilstein HD Shocks

Application Table
Part No. Stock Equiv. Fitment & Configuration
1-b460169911 341 913 11'72-'89 911/912/930
1-b460167911 341 913 11'65-'71 911/912

Bilstein Sport Shocks and Inserts

Sport shocks are a better match to cars with uprated torsion bars. Sports are valved about 20% firmer (rebound) than HD.

In-house services are available to upgrade, test, modify, and renew your Sport shocks.

Bilstein Sport Shocks For Porsche 911

Front Bilstein Sport Inserts

Application Table
Part No. Stock Equiv. Fitment & Configuration
1-p360115p360115'85.5-'89 911/912/930 for Boge strut
1-p360113p360113'68.5-'85.4 911/912/930/914 for Boge strut
1-r365050r365050'72-'89 911/912/930/914 for Bilstein strut

Rear Bilstein Sport Shocks

Application Table
Part No. Stock Equiv. Fitment & Configuration
1-b460975911 341 913 11'72-'89 911/912/930

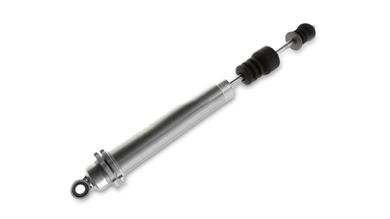

Bilstein RSR Shocks & Inserts

RSR rear shocks provide a threaded-body solution for coilover conversions. RSR rear shocks are shorter than HD/Sport for better fit to lowered cars, and they have a monoball lower mount.

We highly recommend custom valving your RSR rear shocks as the standard valving is too soft. For more advanced threaded-body and valving alternatives, see Von Shocks.

RSR threaded body struts are available on our struts page.

In-house services are available to upgrade, test, modify, and renew your RSR shocks.

Bilstein RSR Shocks and Inserts for Porsche 911

Front Bilstein RSR Inserts

Application Table
Part No. Stock Equiv. Fitment & Configuration
1-4908VE34908VE3'65-'89 911/912/930/914 w/Bilstein Struts

Rear Bilstein RSR Shocks

Application Table
Part No. Stock Equiv. Fitment & Configuration
1-be559545h04908VE3'72-'89 911/912/930

Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

  Pricing Quantity Configuration

Front

Front Von Shock Inserts
$700.00 pair
Front Bilstein HD Shocks & Inserts
$198.00 each
Bilstein Sport Shocks & Inserts
$198.00 each
Front Bilstein RSR Shocks & Inserts
$198.00 each
#1-4908VE3
'65-'89 911/912/930/914 w/Bilstein Struts
2 req'd per car

Rear

Rear Von Shocks
$700.00 pair
Rear Bilstein Sport Shocks & Inserts
$169.00 each
#1-b460975
'72-'89 911/912/930
2 req'd per car
Rear Bilstein HD Shocks & Inserts
$144.00 each
Rear Bilstein RSR Shocks & Inserts
$395.00 each
#1-be559545h0
'72-'89 911/912/930
2 req'd per car
