Performance Bushings

For Porsche 993

Monoballs – deliver precise, razor sharp handling. But rapid wear has made them impractical for all but the most serious racers. Not anymore.

Weather Seals – Our proprietary-design monoball cartridges have weather seals to keep dirt out and extend product life. This is the only Monoball suitable for street or extended track use. Dirt and water contaminate ordinary products and accelerate wear.

Performance – Today’s sticky tire compounds generate corner loads that easily compress factory rubber bushings causing wandering alignment settings. Camber and toe flop around upredictably.

Weather-Sealed Monoball Cartridges replace compliant factory rubber bushings with hardened-steel spherical bearings. Unlike poly bushings that bind and resist movement, true spherical bearings allow free motion on multiple axis.


Front Lower Control Arm Monoballs For Porsche 964, 993

Front Lower Control Arm Monoballs

Complete Kit

Complete kit for the front lower control arms. Includes weather-sealed monoball cartridge replacements for both the front and rear bushings of the front control arms. Includes four cartridges and instructions.

  • “You will hear from me soon about some control arm bushings and monoball kits as I cannot justify putting any lesser quality than yours.”Patrick I. – Londonderry, NH

Front lower control arm monoball kit for Porsche 964/965

Watch this Quick Overview

Front Lower Control Arm Monoballs For Porsche 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
2260000-'89-'94 964,
'95-'98 993
1 kit, req'd per Car

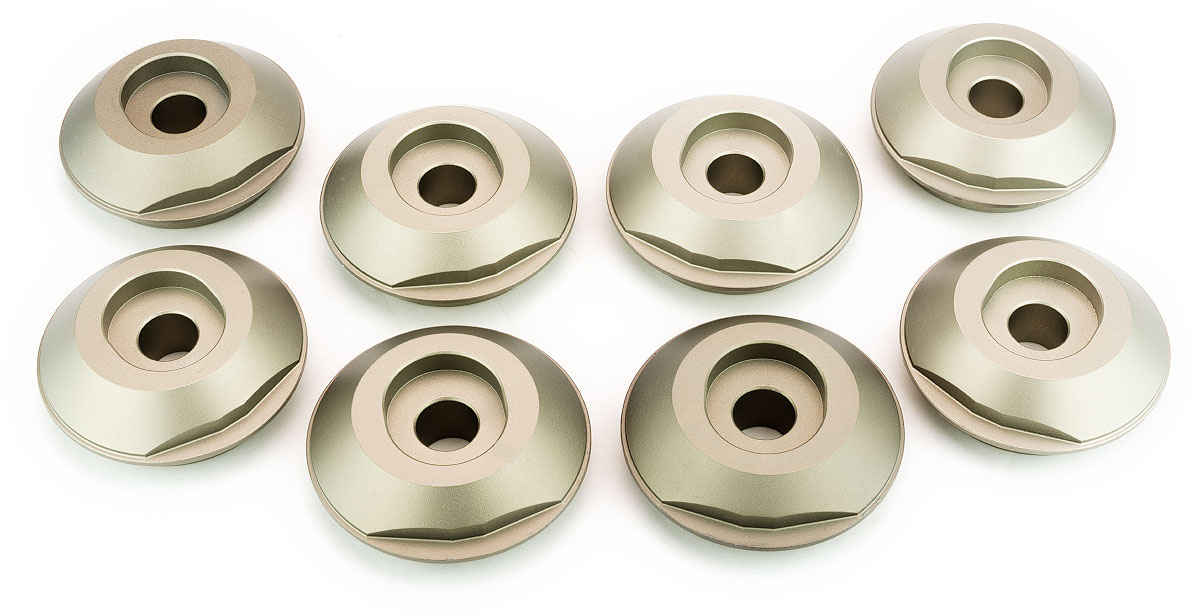

Solid Subframe Bushings For Porsche 993

Solid Subframe Bushings

Precision Handling

Stock rubber bushings compress and deform under heavy cornering, braking, and acceleration loads. The compliant rubber bushings allow the entire rear subframe shift about relative to the chassis. Rear camber and toe settings wander along with the subframe making the car less predictable, less stable in turns.

Our solid bushings replace the compliant rubber and do not deform under cornering loads, keeping the subframe in position and alignment true even under heavy cornering loads. The car becomes more predictable and easier to drive fast.

Corrects Geometry

Raises the subframe by 10mm to improve geometry and camber curve on lowered cars.

Build Quality

Each bushing consists of two pieces… identical upper and lower pucks.

Each piece is precision machined from high-strength aluminum with an anodized finish for protection.

Watch this Quick Overview

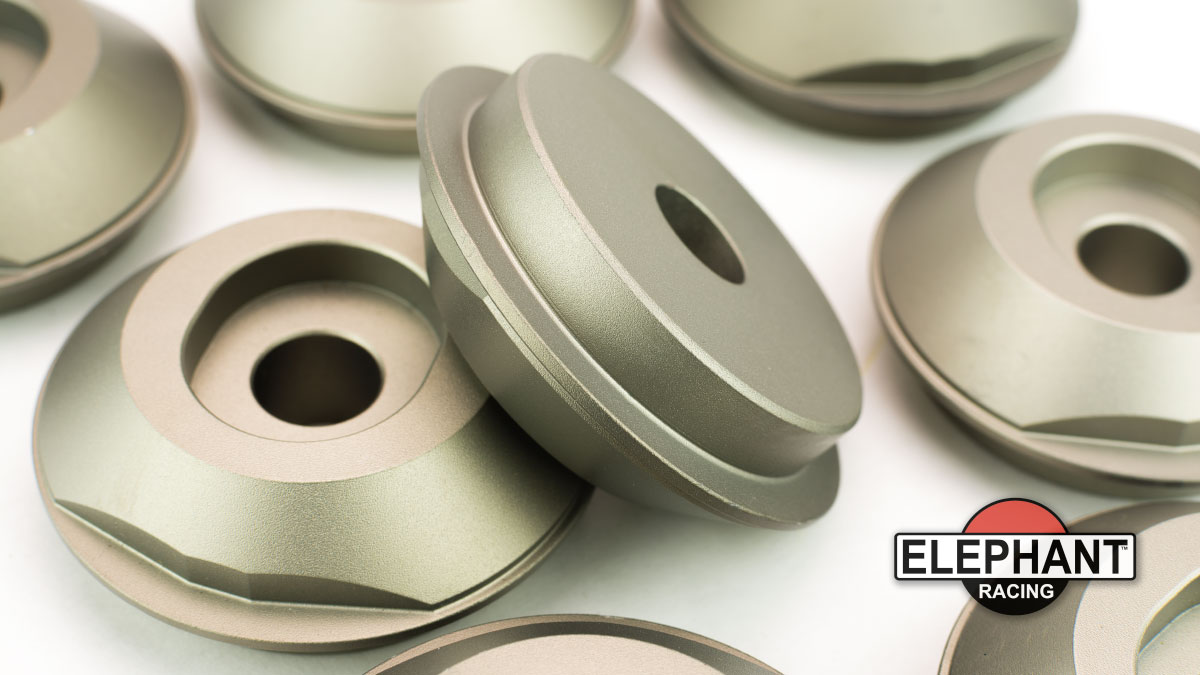

Solid subframe bushings for Porsche 993 detail

Solid Subframe Bushings For Porsche 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
2290037-'95-'98 993
1 kit, req'd per Car

Links for Solid Subframe Bushings

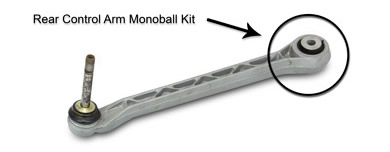

Rear Control Arm Monoball Kit For Porsche 993

Rear Control Arm Monoball Kit

Ball Joints

Complete kit for the rear 993 control arms. Includes weather-sealed monoball cartridge replacements for the bushings of the control arms and track control arm. Includes 8 cartridges.
Rear control arm monoball kit for Porsche 993 installation

Rear Control Arm Monoball Kit For Porsche 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
2260002-'95-'98 993
1 kit, req'd per Car

Links for Rear Control Arm Monoball Kit



Rear Toe Control Arm Monoballs For Porsche 993, 996, 997, 986 and 987 Boxster, Cayman

Rear Toe Control Arm Monoballs

Ball Joints

Complete kit for the rear 993, 996/997, Boxster & Cayman toe control arms. Includes weather-sealed monoball cartridge replacements for the bushings of the rear toe control arms (track rod). Includes 2 cartridges.
Toe control arm monoballs (rear) installation for Porsche 996/997

Rear Toe Control Arm Monoballs For Porsche 993, 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
2260014-'95-'16 993/996/997/986/987/981
1 pair, req'd per Car

Split Bushing Removal Tool For Porsche 911, 912, 930, 964, 993, 944

Split Bushing Removal Tool

This clever tool is a real time saver that makes easy work of removing split bushings. Doing the job with the arms still on the car for 911, 964, and 993 saves time and labor.

It used to be a difficult task

Split bushings are actually two separate bushings, each pressed in from opposite sides of the arm. Removing them requires driving them out from the parting line where they meet, in the center of the arm. This has traditionally been a difficult job that requires removing the arm and fumbling with a punch to try and drive out the bushings from the center.

Easy & quick

This tool makes it easy to engage the parting line and drive out the bushing. It is so easy that the job can be performed without removing the arm from the 911, 964, and 993.

Pro Mechanics and DIY’ers alike will appreciate the time saving this tool provides.

Combine with our bushing installation tools to complete the job.

Watch this Quick Overview

Easily removes the following bushings:

  • 911/930/912 trailing arm bushing
  • 964/993 front lower control arm rear bushing
  • 944 front lower control arm front bushing (aluminum arms)
Split Bushing Removal Tool For Porsche 911, 912, 930, 964, 993, 944

Application Table

Part No. Stock Equiv. Fitment & Configuration
2020903-'65-'89 911/912/930,
'89-'98 964/993,
'76-'95 944/968/924 w/ aluminum control arms
1 req'd per Lifetime


Bushing & Monoball Installation Tool For Porsche 964, 993, 944

Bushing & Monoball Installation Tool

This tool allows installation of lower control arm bushings without a shop press. It can be used for installation rubber bushings as well as our monoball cartridges.

  • 993/964 front lower control arms, rear bushing
  • 994 front lower control arms, front bushing
Bushing & Monoball Installation Tool For Porsche 964, 993, 944

Application Table

Part No. Stock Equiv. Fitment & Configuration
2201702-'89-'94 964,
'95-'98 993,
'76-'95 944
1 req'd per Lifetime

Links for Bushing & Monoball Installation Tool



Control Arm Bushing Installation Tool For Porsche 964, 993

Control Arm Bushing Installation Tool

Simplify the bushing removal and installation process. Our two piece cup and piston tool allows for easy control arm bushing insertion. The tool is designed to precisely fit the bushing circumference, preventing accidental damage to the bushing or control arm and ensuring proper installation.

  • 964/993 front bushing in the front control arms
Control Arm Bushing Installation Tool For Porsche 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
2260020-'89-'94 964,
'95-'98 993
1 req'd per Lifetime

Links for Control Arm Bushing Installation Tool


 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Front

Front Lower Control Arm Monoballs for Porsches
Front Lower Control Arm Monoballs
#2260000
'89-'94 964,
'95-'98 993
1 kit, req'd per car
$695.00 kit

Subframe Bushings

Solid Subframe Bushings for Porsches
Solid Subframe Bushings
#2290037
'95-'98 993
1 kit, req'd per car
$330.00 kit

Rear Parts

Rear Control Arm Monoball Kit for Porsches
Rear Control Arm Monoball Kit
#2260002
'95-'98 993
1 kit, req'd per car
$990.00 kit

Rear

Rear Toe Control Arm Monoballs for Porsches
Rear Toe Control Arm Monoballs
#2260014
'95-'16 993/996/997/986/987/981
1 pair, req'd per car
$275.00 pair

Tools

Split Bushing Removal Tool for Porsches
Split Bushing Removal Tool
#2020903
'65-'89 911/912/930,
'89-'98 964/993,
'76-'95 944/968/924 w/ aluminum control arms
1 req'd per lifetime
$140.00 each
Bushing & Monoball Installation Tool for Porsches
Bushing & Monoball Installation Tool
#2201702
'89-'94 964,
'95-'98 993,
'76-'95 944
1 req'd per lifetime
$95.00 each
Control Arm Bushing Installation Tool for Porsches
Control Arm Bushing Installation Tool
#2260020
'89-'94 964,
'95-'98 993
1 req'd per lifetime
$95.00 each
