Bushing Tools

For Porsche 911, 912, 930

  • Specialty Tools – We’ve developed a line of bushing tools that take the headache out of replacing your old bushings.
  • Not only will these tools save time, but make the bushing removal & installation process easy.



Split Bushing Removal Tool For Porsche 911, 912, 930, 964, 993, 944

Split Bushing Removal Tool

This clever tool is a real time saver that makes easy work of removing split bushings. Doing the job with the arms still on the car for 911, 964, and 993 saves time and labor.

It used to be a difficult task

Split bushings are actually two separate bushings, each pressed in from opposite sides of the arm. Removing them requires driving them out from the parting line where they meet, in the center of the arm. This has traditionally been a difficult job that requires removing the arm and fumbling with a punch to try and drive out the bushings from the center.

Easy & quick

This tool makes it easy to engage the parting line and drive out the bushing. It is so easy that the job can be performed without removing the arm from the 911, 964, and 993.

Pro Mechanics and DIY’ers alike will appreciate the time saving this tool provides.

Combine with our bushing installation tools to complete the job.

Watch this Quick Overview

Easily removes the following bushings:

  • 911/930/912 trailing arm bushing
  • 964/993 front lower control arm rear bushing
  • 944 front lower control arm front bushing (aluminum arms)
Split Bushing Removal Tool For Porsche 911, 912, 930, 964, 993, 944

Application Table

Part No. Stock Equiv. Fitment & Configuration
2020903-'65-'89 911/912/930,
'89-'98 964/993,
'76-'95 944/968/924 w/ aluminum control arms


Trailing Arm Bushing Installation Tool For Porsche 911, 912, 930

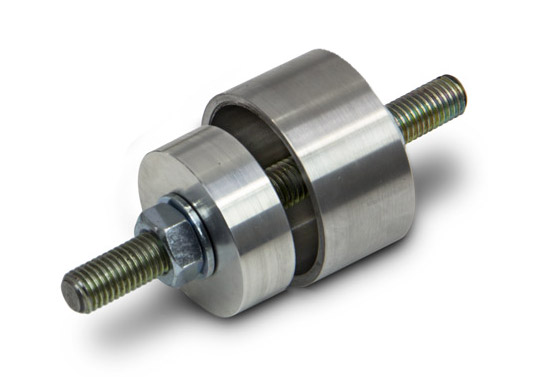

Trailing Arm Bushing Installation Tool

This tool allows installation of the trailing arm bushing without removing the arms from the car, and without a shop press.

It can be used for installation of rubber bushings as well as our Monoball Cartridges (hyperlink).

Recommended for use in combination with our Split Bushing Removal Tool.

Trailing Arm Bushing Installation Tool For Porsche 911, 912, 930

Application Table

Part No. Stock Equiv. Fitment & Configuration
2020904-'65-'89 911/912/930


Spring Plate Bushing Tool For Porsche 911, 912, 930

Spring Plate Bushing Tool

We’ve developed this tool to simplify removal of spring plate bushings. The bushings are bonded to the spring plate, and removal is not easy.

This convenient cutting tool shaves the bushings off, removing nearly all the rubber thereby greatly simplifing the bushing removal process.

Watch this Quick Overview

Spring Plate Bushing Tool For Porsche 911, 912, 930

Application Table

Part No. Stock Equiv. Fitment & Configuration
2061002-'65-'86 911/912/930,
'76-'95 944/968

Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

  Configuration Quantity Pricing

Tools

Split Bushing Removal Tool
#2020903
'65-'89 911/912/930,
'89-'98 964/993,
'76-'95 944/968/924 w/ aluminum control arms
1 req'd per lifetime
$140.00 each
Trailing Arm Bushing Installation Tool
#2020904
'65-'89 911/912/930
1 req'd per lifetime
$95.00 each
Spring Plate Bushing Tool
#2061002
'65-'86 911/912/930,
'76-'95 944/968
1 req'd per lifetime
$95.00 each
