Factory Appearing Rear Adjustable Swaybar

For Porsche 911, 912, 930

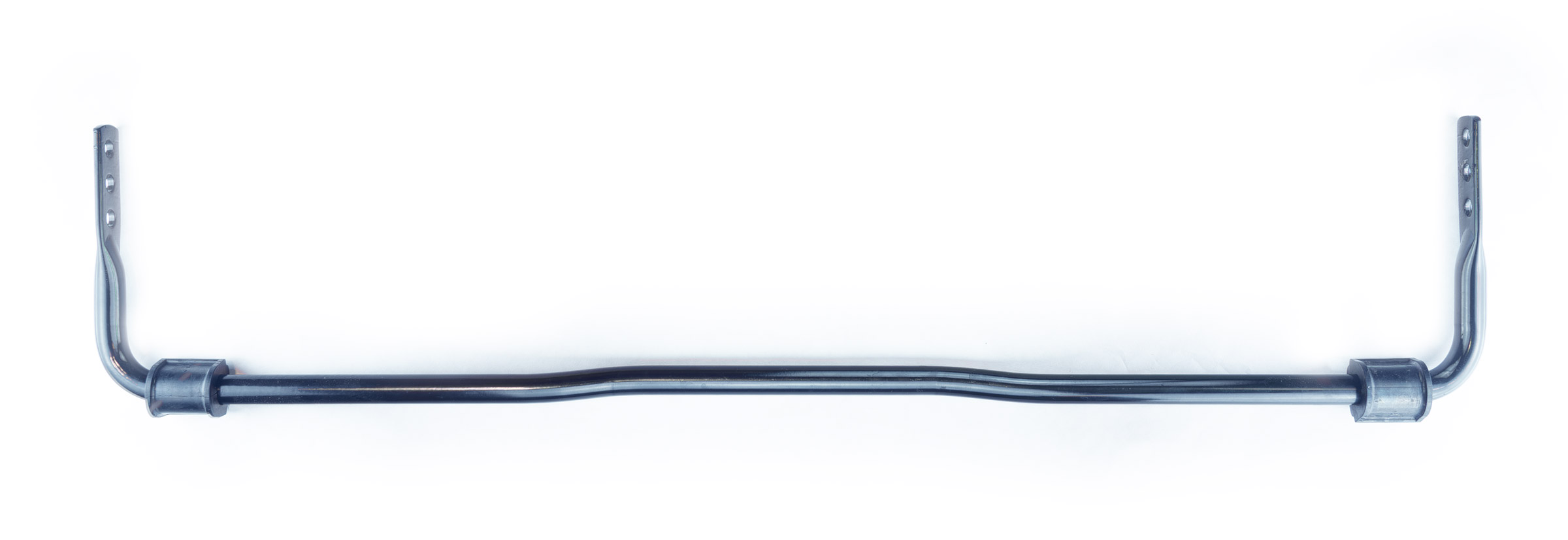

Factory Style Hollow Adjustable Rear Swaybar For Porsche 911, 912, 930

Factory Style Hollow Adjustable Rear Swaybar

If you want the appearance and quiet operation of a factory style swaybar combined with the advantages of an adjustable swaybar, this is for you.

Our factory look swaybar is 3-position adjustable, allowing you to dial in the roll stiffness and understeer/oversteer characteristics you want. It’s also hollow which saves weight over solid bars of similar stiffness.

At 22mm diameter this bar is comparable to the factory 21mm Carrera solid rear bar in the softest position.

Order the matching 22mm rubber bushings part #2270030B. These fit ’78-’89 factory style swaybar mounts and clamps.

Pair with our adjustable drop links #2271002 which attach directly to the spring plate for compatibility with all steel and aluminum trailing arms.

Watch this Quick Overview

*Bushings show for illustrative purpose and are available seperately

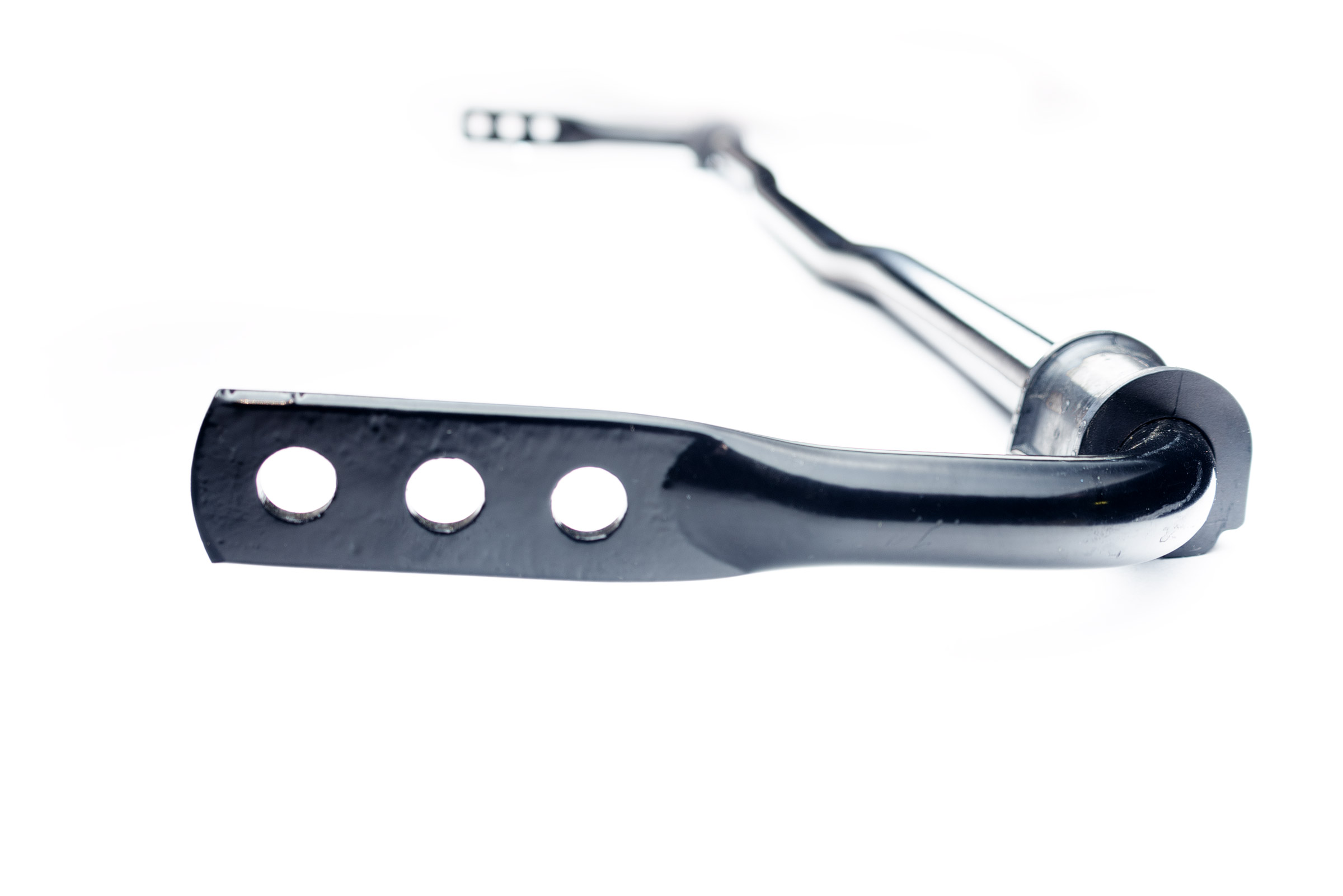

Factory Style Hollow Adjustable Rear Swaybar For Porsche 911, 912, 930
https://www.elephantracing.com/wp-content/uploads/MK1_4124-150x100.jpg

Application Table

Part No. Stock Equiv. Fitment & Configuration
2270030-'69-'89 911, 912, 930
1 req'd per Car

Rear Swaybar Clamp For Porsche 911, 930

Rear Swaybar Clamp

This swaybar clamp fits ’79 thru ’89 style rear factory swaybar mounts
Rear Swaybar Clamp For Porsche 911, 930
https://www.elephantracing.com/wp-content/uploads/MK1_4135-150x100.jpg

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-113411333-'78-'89 911, 930
2 req'd per Car

Adjustable Rear Drop Link Kit For Porsche 911, 912, 930

Adjustable Rear Drop Link Kit

Upgrade your factory rear swaybar (’78-’89) with our adjustable drop links, they attach to the camber adjustment holes on the spring plates.

Teflon-lined precision rod ends for added durability and increased articulation.

  • Fully weather-sealed to extend bearing life

Watch this Quick Overview

Adjustable Rear Drop Link Kit For Porsche 911, 912, 930

Application Table

Part No. Stock Equiv. Fitment & Configuration
2271002

Porsche part number "930 333 071 00"

Adjustable rear drop link kit, Porsche part #930-333-071-00

930 333 071 00
'78-'89 911,912,930
1 pair req'd per Car

Rear Swaybar Mount Kit For Porsche 911, 912, 930 & 914

Rear Swaybar Mount Kit

Stock 911 rear swaybar mounts have a nasty habit of tearing away from the body. Stiff sway bars and aggressive driving only accelerate the inevitable mount failure.

Replace your mounts with these super strong aftermarket mounts and solve the problem for good. Requires grinding off the factory mounts and welding for installation.

The mounts have two sets of screw holes to fit both the 66mm bolt spacing as equipped on the 1978 to 1989 cars as well as the 56mm bolt spacing as equipped on the 1965 to 1977 cars.

  • Compatible with ’65-’77 clamps and ’78-’89 swaybar clamps
  • Fully machined surfaces for a precision fit
  • Consistent material thickness for easy installation
  • Tighter tolerances, more surface area, and stronger than any other rear swaybar mounts available.

Watch this Quick Overview

Rear Swaybar Mount Kit For Porsche 911, 912, 930 & 914
https://www.elephantracing.com/wp-content/uploads/2270028_rear_swaybar_mounts_002-150x84.jpgRear swaybar mount detail for Porsche 911, 912, & 930https://www.elephantracing.com/wp-content/uploads/2270028_rear_swaybar_mounts_003-150x100.jpghttps://www.elephantracing.com/wp-content/uploads/Swaybar-mount_002-150x100.jpgPorsche 911 rear swaybar mounthttps://www.elephantracing.com/wp-content/uploads/Swaybar-mount_001-150x100.jpgPorsche 911 rear swaybar mount

Application Table

Part No. Stock Equiv. Fitment & Configuration
2270028

Porsche part number "911.501.983.00"

Rear swaybar mount kit, Porsche part #911.501.983.00

911.501.983.00
'65-'89 911/912/930
1 pair req'd per Car


Rear Swaybar Bushing For 22mm (.875 inch) Bar For Porsche 911, 930

Rear Swaybar Bushing For 22mm (.875 inch) Bar

Use these rubber rear swaybar bushings with our 22mm factory style hollow adjustable swaybar. These bushings fit the contours of the ’78-’89 factory style swaybar mounts and clamps.

’69=’70 cars can be easily retrofit with the ’78+ mounts and clamps to use these bushings.

Application Table

Part No. Stock Equiv. Fitment & Configuration
2270030B-'78-'89 style chassis mounts
2 req'd per Car

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Rear

Factory Style Hollow Adjustable Rear Swaybar for Porsches
Factory Style Hollow Adjustable Rear Swaybar
#2270030
'69-'89 911, 912, 930
1 req'd per car
$415.00 each
Rear Swaybar Clamp for Porsches
Rear Swaybar Clamp
#1-113411333
'78-'89 911, 930
2 req'd per car
$25.00 each
Adjustable Rear Drop Link Kit for Porsches
Adjustable Rear Drop Link Kit
#2271002
'78-'89 911,912,930
1 pair, req'd per car
$297.00 pair
Rear Swaybar Mount Kit for Porsches
Rear Swaybar Mount Kit
#2270028
'65-'89 911/912/930
1 pair, req'd per car
$195.00 pair
Rear Swaybar Bushing For 22mm (.875 inch) Bar
#2270030B
'78-'89 style chassis mounts
2 req'd per car
$20.00 each
