Oil Hose Adapters, Unions, and Fittings

For Porsche 911, 930

  • Complete your own custom oil system
  • We have the individual parts you need including oil fittings, adaptors and unions to connect your oil hoses to your oil coolers, oil tank, and engine case in your Porsche 911 or 930.


Thermo Probe Plug For Porsche 911, 930, 964, 993

Thermo Probe Plug

The thermo probe plug is available for applications that aren’t utilizing the thermo sensor. It installs in the cooler where the sensor would otherwise mount and is necessary to block the passage and prevent oil loss.

Complete with an rubber edge seal to prevent oil leaks.

Thermo Probe Plug For Porsche 911, 930, 964, 993
https://www.elephantracing.com/wp-content/uploads/M14-drain-plug_001a-150x100.jpgM14x1.5 Oil Cooler Thermo Probe Fitting Plug For Porsche

Application Table

Part No. Stock Equiv. Fitment & Configuration
M14 drain plug-1 per cooler when not using a thermo probe
qty req'd may vary

30mm to 30mm Fitting For Porsche 911, 930, 964, 993

30mm to 30mm Fitting

30mm Male Ends

Useful for attaching two 30mm female threaded hose ends together. Union has 30mm male threads on both sides.

30mm to 30mm Fitting For Porsche 911, 930, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
81502020-30mm male threads on both sides
qty req'd may vary

30mm Oil Line Tube Nut Replacement Kit For Porsche 911, 930, 964, 993

30mm Oil Line Tube Nut Replacement Kit

Save Expensive Thermostats And Oil Lines

It’s a common problem when removing oil lines from the external thermostat. The aluminum thermostat threads become fused to the steel tube nut that secures the oil lines. If you get enough leverage to force the nut free, it takes the aluminum threads along with it – destroying the expensive thermostat and the oil line.

Elephant Racing has the solution; we are manufacturing a 30mm tube nut replacement kit that let’s you save thermostats and oil lines. If your oil lines won’t come free from the thermostat, use a cut-off wheel to slit the side of the tube nut. You can then break the nut free using a cold chisel. This technique sacrifices the tube nut to save the expensive thermostat.

You then use our kit to replace the tube nut that was cut off. Both the oil line and the thermostat are saved.

The kit provides a 2-piece tube nut. The threaded nut fits over the end of the tube and is slipped on first. A spring lock ring is then slipped on. The spring lock ring cinches down on the tube, preventing the nut from coming off.

Oil line tube nut installed

Kit Installed on Oil Line

30mm Oil Line Tube Nut Replacement Kit For Porsche 911, 930, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
0170000-'65-'98 Porsche 911, 930, 964, 993
2 req'd per Car

26mm to 30mm Fitting For Porsche 911, 930, 964, 993

26mm to 30mm Fitting

Brass Swivel Fitting

911 cars through ’71 and all 914/6 cars have 26mm fittings on the oil tank. This presents a problem when retrofitting a ’72 and later 911 motor that use 30mm oil hoses.

These 26mm-to-30mm adapters solve this. They have female 26mm threads that connect directly to the 26mm male fitting on your pre-72 911 or 914/6 oil tank. The other side is male 30mm threads and connects directly to 30mm female threaded hose ends.

  • “Just want to say, thanks! You guys really created a great product that fills a serious void!” Kyle G., IE – Thermostat Fittings
26mm to 30mm Fitting For Porsche 911, 930, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
0121100-Brass swivel fitting
2 req'd per Car

M22 to 30mm Fitting For Porsche 911, 930, 964, 993

M22 to 30mm Fitting

Widemouth Oil Cooler Fitting

Straight-cut male M22 thread fits the engine case scavenge port, Carrera and C2/993 oil coolers, Setrab and Mocal coolers with threaded fittings.

  • M22 side uses the included crush washer to seal.
  • 30mm side fits 30mm hose ends.
M22 to 30mm Fitting For Porsche 911, 930, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
0101100

Porsche part number "999 136 045 09"

M22 to 30mm fitting, Porsche part #999-136-045-09

999 136 045 09
Widemouth Oil Cooler Fitting
qty req'd may vary

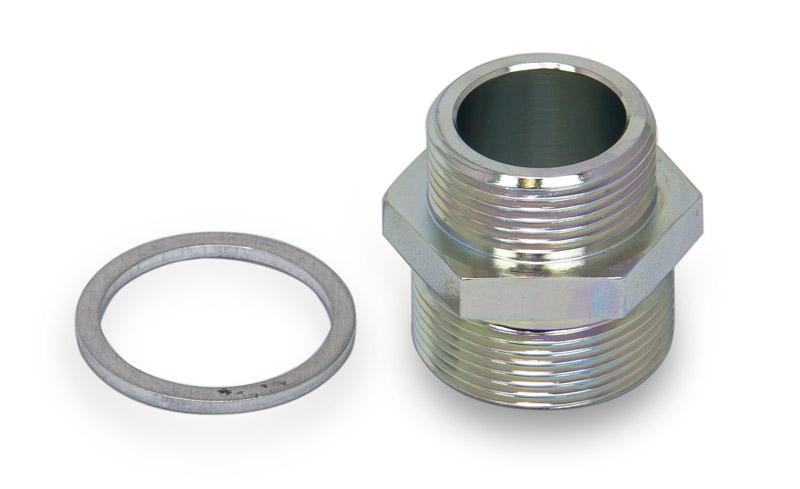

M26 to 30mm Fitting For Porsche 911 , 930

M26 to 30mm Fitting

Console to Thermostat Conversion

Straight-cut male M26 thread fits the 1972 Porsche 911 oil filter console and is used to convert the console to be a thermostat.

  • M26 side uses the included crush washer to seal.
  • 30mm side fits 30mm hose ends.
M26 to 30mm Fitting For Porsche 911 ,  930

Application Table

Part No. Stock Equiv. Fitment & Configuration
0010801

Porsche part number "900 915 008 02"

M26 to 30mm fitting, Porsche part #900-915-008-02

900 915 008 02
Fits the '72 Porsche 911 oil filter console
qty req'd may vary

M22 to AN Fittings For Porsche 911, 912, 930, 944, 964, 993

M22 to AN Fittings

AN-4 thru AN-16

AN fittings are available in choice of size from AN-4 to AN-16. Straight-cut male M22 thread fits the engine case scavenge port, Carrera and C2/993 oil coolers with threaded fittings, Setrab, and Mocal oil coolers.

  • M22 side uses the included sealing ring.
  • AN side fits standard AN hose ends.
M22 to AN Fittings For Porsche 911, 912, 930, 944, 964, 993

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-m22an16-M22 to AN-16 fitting
qty req'd may vary
1-m22an12-M22 to AN-12 fitting
qty req'd may vary
1-m22an10-M22 to AN-10 fitting
qty req'd may vary
1-m22an8-M22 to AN-8 fitting
qty req'd may vary
1-m22an6-M22 to AN-6 fitting
qty req'd may vary
1-m22an4-M22 to AN-4 fitting
qty req'd may vary

M22 to 30mm Fitting For Porsche 911, 930

M22 to 30mm Fitting

Low Profile Setrab Fitting

Straight-cut male M22 thread fits Setrab and Mocal oil coolers. Also fits the engine case scavenge port, Carrera and C2/993 oil coolers.

This special low-profile fitting is about .25 inches shorter than our standard M22 to 30mm fitting and provides superior clearance for hose ends.

  • M22 side uses the included crush washer to seal.
  • 30mm side fits 30mm hose ends.
M22 to 30mm Fitting For Porsche 911, 930

Application Table

Part No. Stock Equiv. Fitment & Configuration
0111100

Porsche part number "999 136 045 09"

M22 to 30mm fitting, Porsche part #999-136-045-09

999 136 045 09
Low-Profile Setrab Oil Cooler Fitting
qty req'd may vary

Related Oil Line Products

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Oil Coolers

Thermo Probe Plug for Porsches
Thermo Probe Plug
#M14 drain plug
1 per cooler when not using a thermo probe
qty req'd may vary
$10.00 each

Oil fittings and unions

30mm to 30mm Fitting for Porsches
30mm to 30mm Fitting
#81502020
30mm male threads on both sides
qty req'd may vary
$80.00 each
30mm Oil Line Tube Nut Replacement Kit for Porsches
30mm Oil Line Tube Nut Replacement Kit
#0170000
'65-'98 Porsche 911, 930, 964, 993
2 req'd per car
$55.00 each
26mm to 30mm Fitting for Porsches
26mm to 30mm Fitting
#0121100
Brass swivel fitting
2 req'd per car
$80.00 each
M22 to 30mm Fitting for Porsches
M22 to 30mm Fitting
#0101100
Widemouth Oil Cooler Fitting
qty req'd may vary
$40.00 each
M26 to 30mm Fitting for Porsches
M26 to 30mm Fitting
#0010801
Fits the '72 Porsche 911 oil filter console
qty req'd may vary
$35.00 each
M22 to AN Fittings for Porsches
M22 to AN Fittings
$15.00 each
M22 to 30mm Fitting for Porsches
M22 to 30mm Fitting
#0111100
Low-Profile Setrab Oil Cooler Fitting
qty req'd may vary
$40.00 each
