Strut Hardware

For Porsche 911, 912, 930

  • Components designed to take your struts to the next level.

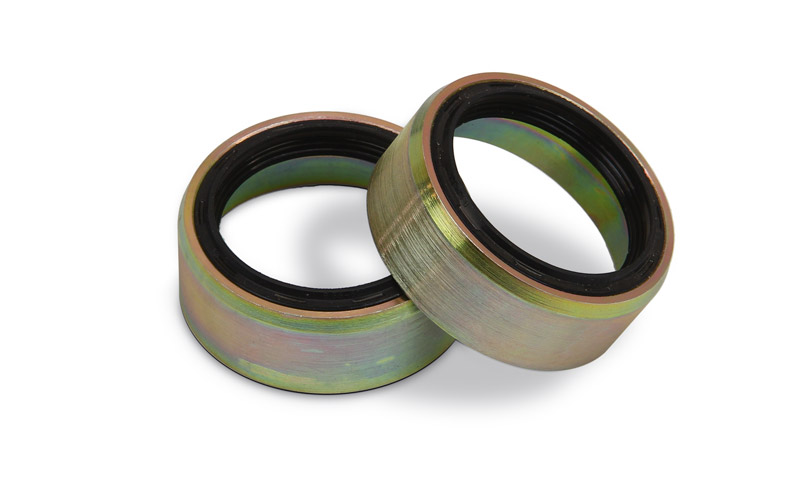

Strut Shortening Wiper Seals For Porsche 911, 912, 930

Strut Shortening Wiper Seals

Replace Your Worn Out Wiper Seals

Lowering your car reduces the travel range of the shocks/struts. Shocks with limited range of travel have a tendency to bottom out more often while driven hard or under poor road conditions. This translates to ride harshness and eventual damage to shocks/struts and shock mounts.

These wiper seals shorten struts by 3/4 inch and add much needed travel. Have us install the shortening wipers along with other strut modification services. Shock body shortening services are also available.

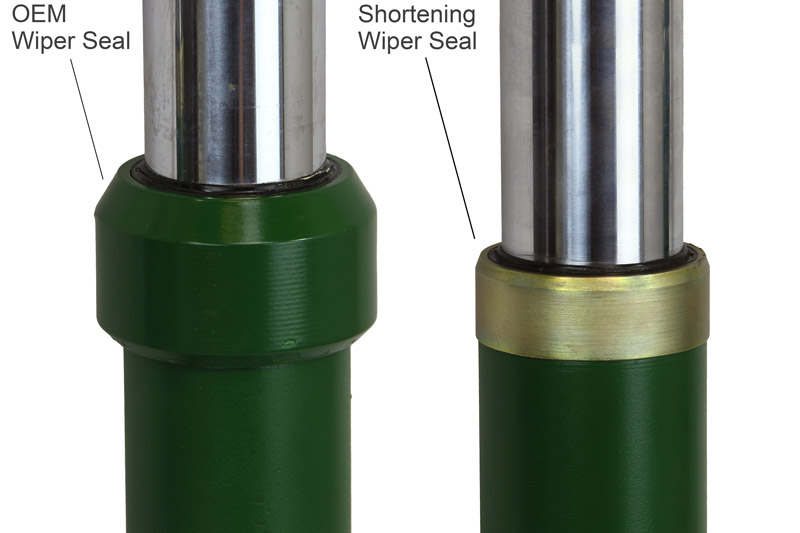

  • Note: Only for later style Bilstein struts with green seal holders, as pictured above. Earlier style struts with zinc coated 5/8″ holders require further strut modifications. Please call for more information.
Strut Shortening Wiper Seals for Porsche 911
Strut Shortening Wiper Seals For Porsche 911, 912, 930

Application Table

Part No. Stock Equiv. Fitment & Configuration
2280905-'69-'89 Late Bilstein Struts Only with green seal holders

Front Spindle Collar and/or Seals For Porsche 911, 912, 930, 914

Front Spindle Collar and/or Seals

Spindle collars, also called seal races, are fit to the base of the spindle. They position the inner wheel bearing and provide a surface for the inner seal to ride upon. Select the correct width based on the model year of the wheel hub being used, ’65-’68 or ’69-’89.
Front Spindle Collar and/or Seals For Porsche 911, 912, 930, 914

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99970108450999 701 084 50Seals only, '65-'89 911/912/930/914
1-90134166100901 341 661 00Collar, Fits '65-'68 wheel hubs, 911/912
1-90134162300901 341 623 00Collar, Fits '69-'89 wheel hubs, 911/912/930/914

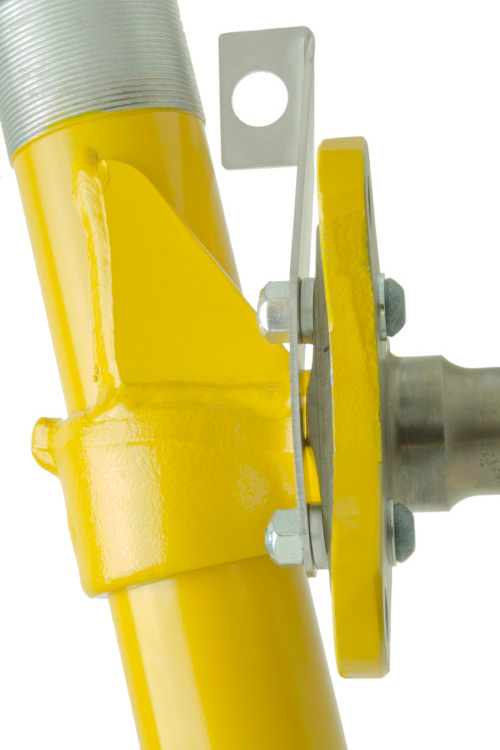

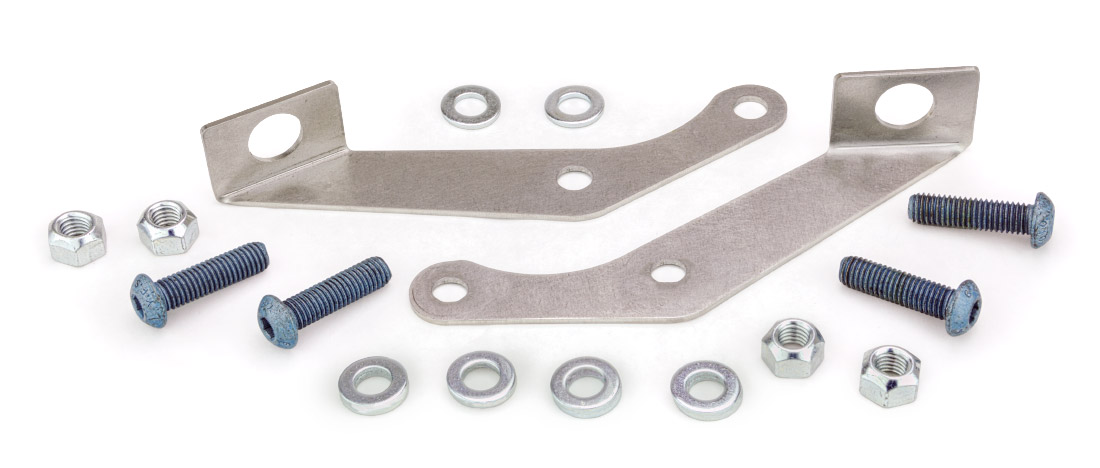

Coilover Brake Line Support Bracket Kit For Porsche 911, 912, 930 & 914

Coilover Brake Line Support Bracket Kit

Standard front struts have welded-on brackets to support the brake hard line. Threaded body coilover struts and coilover sleeve conversion require the removal of these brackets, leaving the brake lines unsupported and prone to failure – always at the worst possible time!

Our support bracket kit is an easy bolt-on support for the brake lines.

The kit bolts to existing threaded holes on the strut.

  • Easy bolt-on – Attaches to the brake dust shield mounting holes using provided hardware. dust shields can be retained or removed.
  • Prevents brake hard line flex / fatigue – Supports the brake hard line. Unsupported, the hard line will constantly flex and eventually leak.
  • Quality throughout – Purpose made brackets are laser – cut from stainless steel and pre-formed. Top quality hardware is provided to complete the kit.

Watch this Quick Overview

Coilover Brake Line Support Bracket Kit For Porsche 911, 912, 930 & 914
https://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_003-150x114.jpgPorsche 911 and 914 Safari Struthttps://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_002-150x100.jpgPorsche 911 and 914 Gusset Installationhttps://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_001-100x150.jpgPorsche 911 and 914 Brake Line Support Bracket

Application Table

Part No. Stock Equiv. Fitment & Configuration
2280911-'65-'89 911/912/930/914

Links for Coilover Brake Line Support Bracket Kit


Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Front Parts

Strut Shortening Wiper Seals for Porsches
Strut Shortening Wiper Seals
#2280905
'69-'89 Late Bilstein Struts Only with green seal holders
1 pair, req'd per car
$150.00 pair
Front Spindle Collar and/or Seals for Porsches
Front Spindle Collar and/or Seals
$2.00 each
Coilover Brake Line Support Bracket Kit for Porsches
Coilover Brake Line Support Bracket Kit
#2280911
'65-'89 911/912/930/914
1 pair, req'd per car
$120.00 pair
