Monoball Suspension Bearings

Self-Aligning Precision Inner LCA

Unlike the factory rubber bushed GT3 inner control arms, our spherical bearings do not deflect under load and they are fully weather sealed to keep out water and grit for extended life.

To be paired with the Elephant Racing GT3 outer control arms.

Compatibility

• Use in combination with factory GT3 street type control arm only
• Does not fit 991 GT3 or GT4 arms
• Easy Bolt-On
• Weather-sealed
• Sold as pair
• Front and Rear for 996, 997, 986, 987, 981, 718
• Front only on 991, 992

More Camber and Caster

Our offset front camber plates allow for additional camber and castor over the factory range of adjustment, similar to the GT3 geometry. These camber plates fit original factory type struts, including those equipped with PASM.

These plates use high strength hardened steel spherical bearings and are direct replacements for the factory plates which use compliant rubber bushings. The teflon lined spherical bearings used in our kit are entirely maintenance free and require no supplemental lubrication. These plates are sealed to prevent contamination from water or grime, thus extending bearing life. This makes the Elephant Racing camber plate kit perfect for regular street use, as well as extended abuse on the race track.

• The installation was easy and took only half an hour. The product definitively improves the handling experience, really enjoy it.Gavin F. – Offset Camber Plates

Higher Performance

Spherical bearings further improve performance. The spherical bearings pivot freely, but eliminate the deflection that is inherent with the factory rubber bushings. This is important for two reasons

– The factory rubber acts as a spring in series with the strut. This rubber spring-action is completely un-damped and reduces the struts ability to control the tire contact patch. The spherical bearing allows the strut damper to do its job and control the contact patch.

– The factory rubber deflects sideways under cornering loads, causing loss of camber just when you need it most. Our spherical bearings eliminate the deflection, maintaining stable and predictable camber.

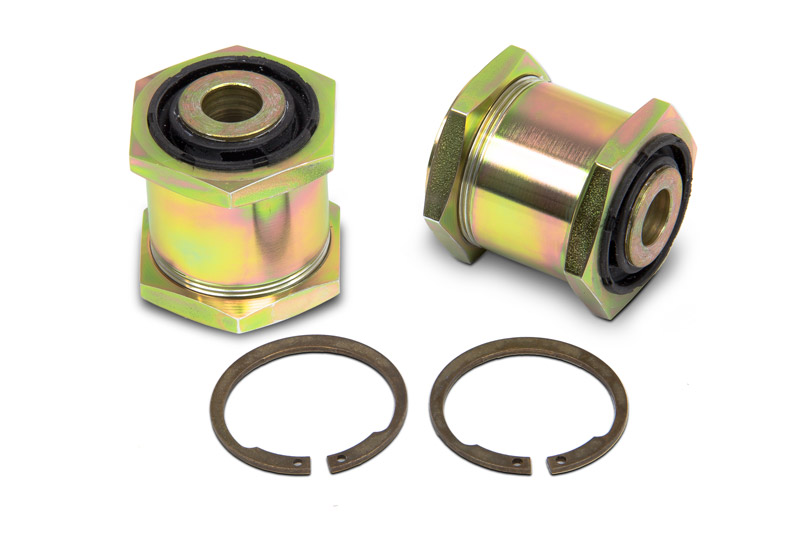

Our Eccentric Control Arm Monoball Cartridges replace inner rubber bushings with spherical bearings, providing low friction and precisely holding camber settings. The eccentric design allows increasing or decreasing camber, as needed.

Increasing Camber – Position the eccentric to maximize Lower Wishbone length, adding about .86 degree of negative camber on the 996/997 rear suspension, about .36 degree of negative camber on the Boxster rear suspension, and .39 degrees on the 996/997/Boxster front suspension. Cost effective for cars that just want extra camber. For even more camber and ease of adjustment, see our GT3 type fully adjustable control arms.

Decreasing Camber – Position the eccentric to minimize Lower Wishbone length. Perfect for lowered cars that have too much negative camber and want to get back to factory camber settings to minimize tire wear on the street. Makes rear camber about .86 degrees more positive & front camber about .39 degrees positive for 996/997 while Boxsters will get about .39 degrees positive front and .36 degrees positive rear.

Watch this Quick Overview

Cartridges install easily to replace rubber bushings for 996/997/Boxster/Cayman. An excellent alternative to our QuickChange Camber Plates for cars that don’t need more camber but still want the handling precision of a spherical bearing monoball. Spherical bearings improve performance. The spherical bearings pivot freely, but eliminate the deflection that is inherent with the factory rubber bushings.

Eliminating Deflection Is Important For Two Reasons

• The factory rubber acts as a spring in series with the strut. This rubber spring-action is completely un-damped and reduces the struts ability to control the tire contact patch. The spherical bearing allows the strut damper to do its job and control the contact patch.
• The factory rubber deflects sideways under cornering loads, causing loss of camber just when you need it most. Our spherical bearings eliminate the deflection, maintaining stable and predictable camber.

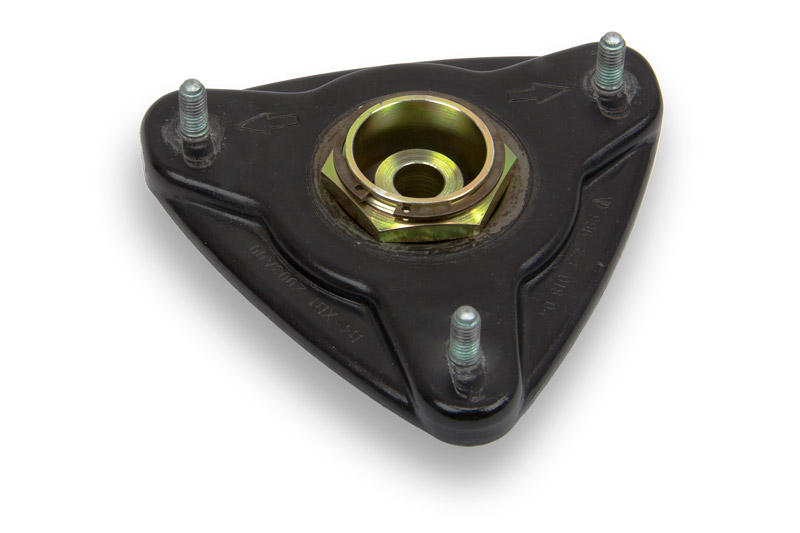

Shown with front 996, 997, Boxster, Cayman factory camber plate, not included

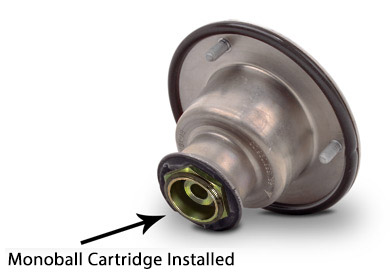

Shown with rear Boxster, Cayman strut mount, not included

Ball Joints

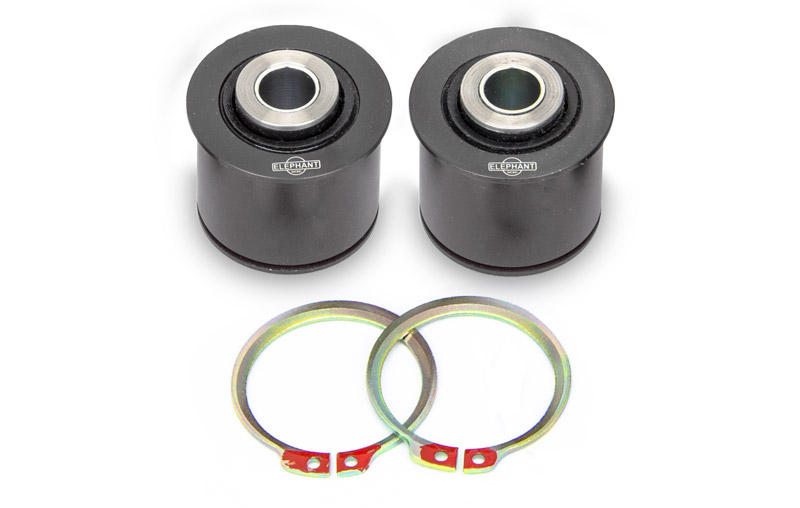

Complete kit for the rear 993, 996/997, Boxster & Cayman toe control arms. Includes weather-sealed monoball cartridge replacements for the bushings of the rear toe control arms (track rod). Includes 2 cartridges.

Our two piece cup and piston tools allow for simple bushing extraction and insertion without removal of the wheel carriers or control arms. No need to use a shop press. The tools are designed to precisely fit the bushing circumference, preventing accidental damage to the bushing and ensuring proper installation.

• Front Lower Control Arm only on 991
• Front and rear control arms on the 996, 997, 986, 987, & 981
