Basic Strut Brace

For Porsche 911/912/930

Basic Strut Brace For Porsche 911 & 914

Lightweight, Triangulated Option

Our basic strut braces are available in a choice of single bar and triangulated styles. These basic strut braces are an excellent and economic solution for reducing strut tower flex.

Our more sophisticated QuickChange Strut Brace System may be of interest if you seeking additional features.

Triangulation bests the single bar braces by increasing rigidity. Traditional braces tie strut towers together force them to move in parallel, sharing the cornering force of the loaded tire over both towers to reduce flex. Triangulation locks the towers rigidly in place to maintain camber settings – even through high G corners.

Made from sturdy aluminum tubing our braces are tapered and terminated with quality rod-end fittings for precise alignment, adjustability and rigidity. Adjustable pre-load allows you to dial in a bit of extra camber if desired. All required mounting hardware is included.

Fit and finish make these braces as attractive as they are functional.

Read the Triangulation tech topic to see why we outperform all other braces.

Basic Strut Brace Overview

  • Strengthens strut towers to minimize chassis flex
  • Easy bolt-on installation
  • ’78 to ’89 cars require one hole to be drilled for the triangulated brace
  • Cars prior to ’78 already have the hole in place

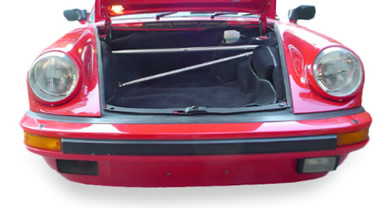

Basic Strut Brace For Porsche 911 Installed

Triangulated Strut Brace

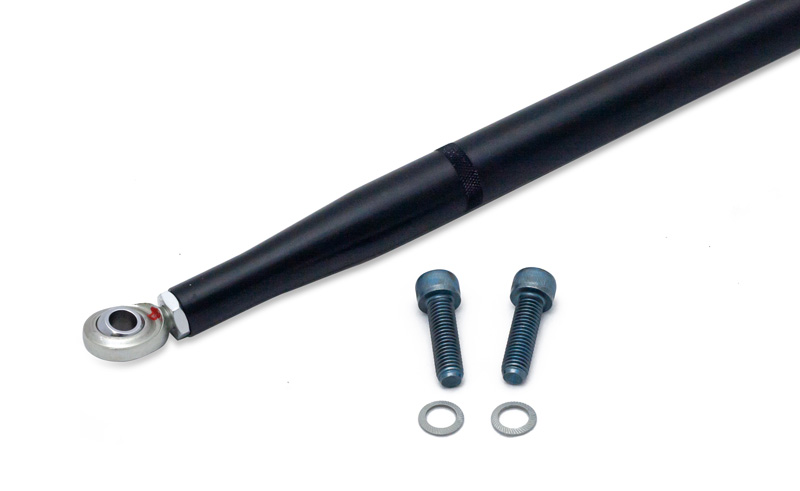

Basic Strut Brace Kit Detail

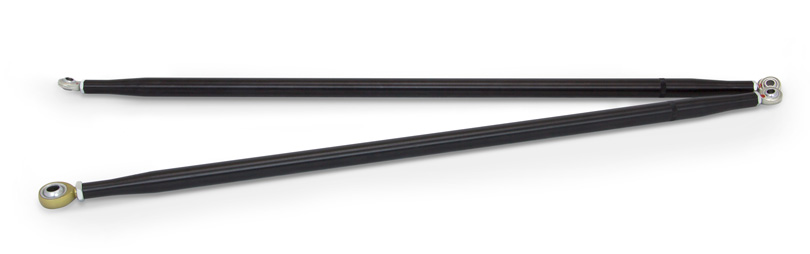

Basic Strut Brace Kit

Fits all 911/912/930 from 1966 to 1989

Application Table

Part No. Stock Equiv. Fitment & Configuration
2040900-'66-'89 911, 912, 930 - Basic Strut Brace Bar
1 kit req'd per Car
2030900-'66-'89 911, 912, 930 - Triangulated Strut Brace Kit
1 kit req'd per Car

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Strut Brace Kits

Basic Strut Brace for Porsches
Basic Strut Brace
$197.00 kit
