Torsion Bars

For Porsche 914

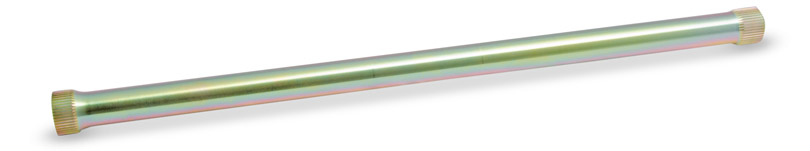

Plated & Plugged Hollow Torsion Bars

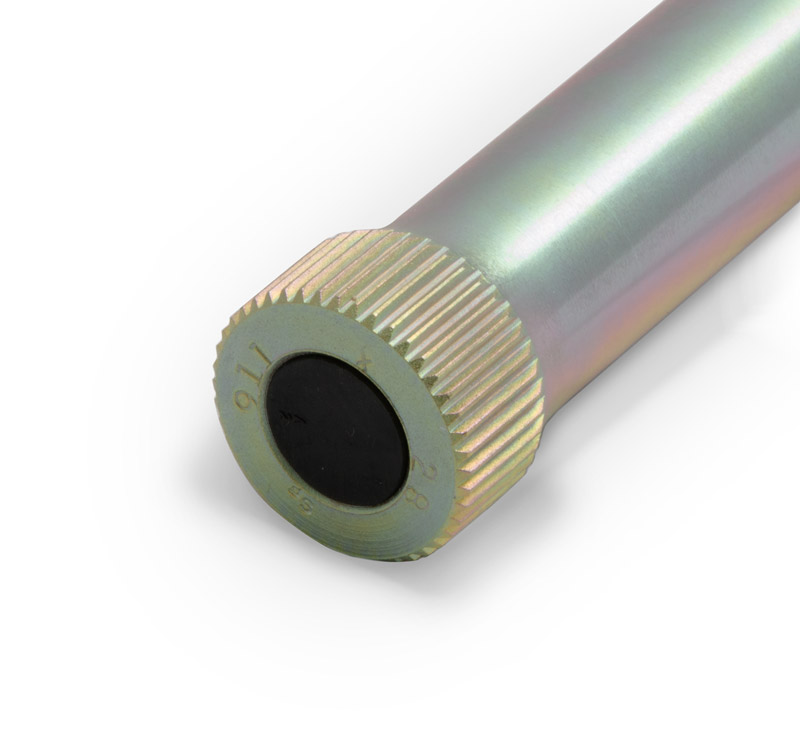

Our Plated & Plugged Hollow torsion bars are the best available. The ends are plugged to prevent moisture entry that rots ordinary hollow bars from the inside out. The entire bar is zinc plated for superior protection.

Excellent quality control means proper spline fit and spring-rate consistency bar-to-bar. Inferior quality competing bars fail on all counts.

  • Hollow, light weight
  • Plated & Plugged
  • Consistent spring rate
  • Great spline fit

Upgrade Hollow bars provide a nice weight savings over equivalent spring rate solid bars, especially true of the heavier rear bars. This is a great way to trim extra pounds from the back of your car.

  • “After a few slow laps around town, we hit the side roads for some spirited driving. My Porsche responded immediately like it was on rails. No drama, no squealing tires, no understeer, and no body roll. It was sublime… I’m exceptionally pleased the way things turned out.” Jack W. – Torsion Bar

*The size given is a solid-bar-equivalent. Actual hollow bar measures about .5mm larger.

Plated & Plugged Hollow Torsion Bars for Porsche 911, 912, 930

Front

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-PP911F19-'65-'89 911,912,930,914-6,
19mm
1-PP911F20-'65-'89 911,912,930,914-6,
20mm
1-PP911F21-'65-'89 911,912,930,914-6,
21mm
1-PP911F22-'65-'89 911,912,930,914-6,
22mm
1-PP911F23-'65-'89 911,912,930,914-6,
23mm
1-PP911F24-'65-'89 911,912,930,914-6,
24mm
1-PP911F25-'65-'89 911,912,930,914-6,
25mm

QuickChange™ Torsion Bars

QuickChange™ Torsion Bars

QuickChange Torsion Bars are Plated & Plugged and include a female threaded end that you can engage with a bolt to use as a handle for easier extraction / insertion.

Use the rears bars in combination with our QuickChange™ Spring Plate products for fast torsion bar swapping and re-indexing. QuickChange™ Torsion Bars can be extracted through the QuickChange™ Spring Plate without removing any bolts. Alignment settings are maintained. You don’t even need to remove the wheel from the car. Changing torsion bars is a 5 minute per side operation!

A QuickChange™ Insert is available separately for converting your existing hollow torsion bars.

QuickChange™ Torsion Bars make it easy to dislodge a stuck bar, and thereby offer benefits even when used on the front and with factory spring plates (factory spring do not allow the bars to be extracted without removing the plates).
QuickChange™ Torsion Bars for Porsche 911, 912, 930

Front

Application Table

Part No. Stock Equiv. Fitment & Configuration
2092020-'65-'89 911,912,930,914-6,
20mm
2092021-'65-'89 911,912,930,914-6,
21mm
2092022-'65-'89 911,912,930,914-6,
22mm
2092023-'65-'89 911,912,930,914-6,
23mm
2092024-'65-'89 911,912,930,914-6,
24mm
2092025-'65-'89 911,912,930,914-6,
25mm

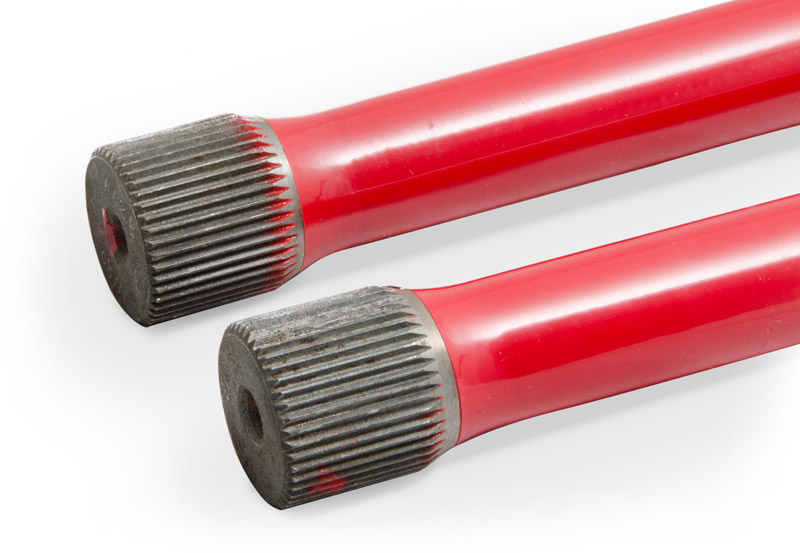

Sway-Away Hollow Torsion Bars

Hollow Sway-a-way bars provide a choice of sizes for enhanced performance, while reducing weight.
Sway-A-Way Hollow Torsion Bars for Porsche 911, 912, 930

Front

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-1920T-'70-'76 914-4,
20mm
1-1820T-'65-'89 911,912,930,914-6,
20mm
1-1921T-'70-'76 914-4,
21mm
1-1821T-'65-'89 911,912,930,914-6,
21mm
1-1922T-'70-'76 914-4,
22mm
1-1822T-'65-'89 911,912,930,914-6,
22mm
1-1923T-'70-'76 914-4,
23mm
1-1823T-'65-'89 911,912,930,914-6,
23mm

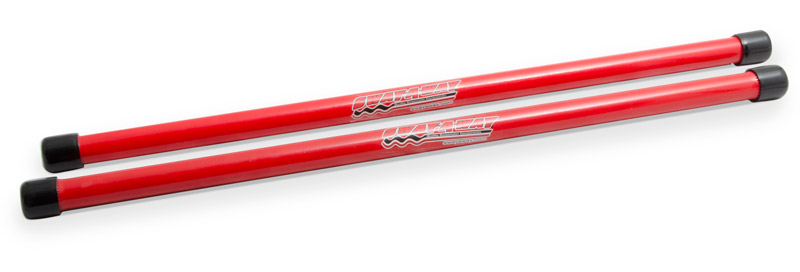

Sway-Away Solid Torsion Bars

Solid bars provide a good solution for suspension builds on a more modest budget. These torsion bars deliver the basic sizing needed to customize your performance.
Sway-A-Way Solid Torsion Bars for Porsche 911, 912, 930

Front

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-1919-'70-'76 914-4,
19mm
1-1819-'65-'89 911,912,930,914-6,
19mm
1-1920-'70-'76 914-4,
20mm
1-1820-'65-'89 911,912,930,914-6,
20mm
1-1921-'70-'76 914-4,
21mm
1-1821-'65-'89 911,912,930,914-6,
21mm
1-1922-'70-'76 914-4,
22mm
1-1822-'65-'89 911,912,930,914-6,
22mm
1-1923-'70-'76 914-4,
23mm
1-1823-'65-'89 911,912,930,914-6,
23mm

Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

  Configuration Quantity Pricing

Front Parts

Front Plated & Plugged Hollow Torsion Bars
$410.00 pair
QuickChange™ Hollow Torsion Bars
$435.00 pair
Front Sway-A-Way Hollow Torsion Bars
$525.00 pair
Front Sway-A-Way Solid Torsion Bars
$325.00 pair
