Rubber Suspension Bushings

For Porsche 996, 997

Restore, renew, improve – Rubber bushings give years of trouble free performance, and with some 996s now decades old they are ready for replacement. Our replacement bushings are a critical part of any suspension refresh or upgrade.
Stock or Sport Hardness – Many of our bushings are available in a sport-hardness rubber. Sport bushings are firmer rubber, offering an intermediate step between stock rubber and our top performing monoball products.

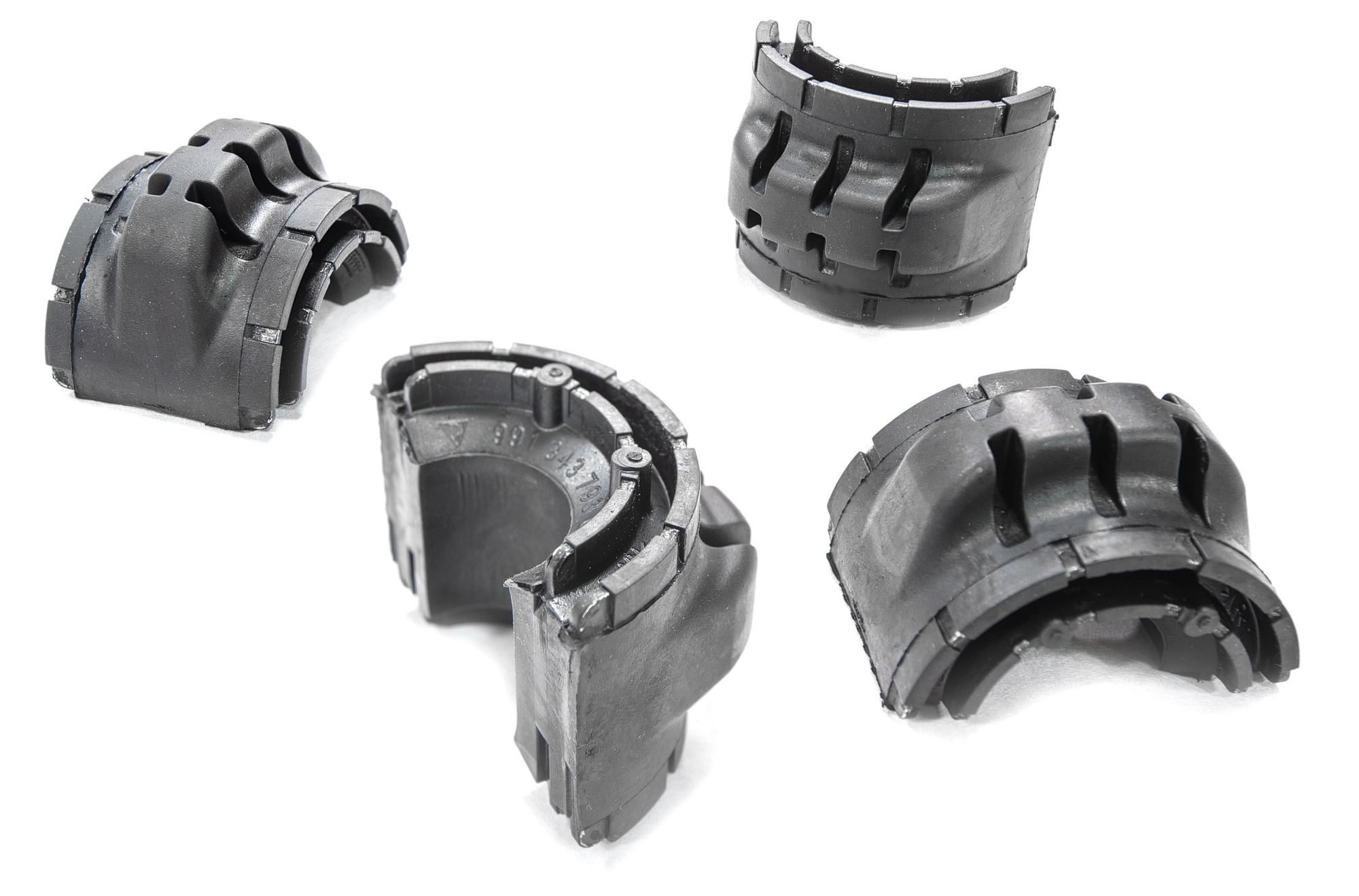

Front Swaybar Rubber Bushings For Porsche 996, 997, 986 and 987 Boxster, Cayman, and 991

Front Swaybar Rubber Bushings

Swaybar Bushings

Replace old worn out sway bar bushings with a set of stock bushings. Available for front and rear sway bars. Choose from Stock (non M030 suspension upgrade) or euro GT3 street bushings.

Front Swaybar Rubber Bushings For Porsche 996, 997, 986 and 987 Boxster, Cayman, and 991
https://www.elephantracing.com/wp-content/uploads/Porsche-991-front-swaybar-bushings_001-150x99.jpgPorsche 991 front swaybar bushings

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99734379200

Porsche part number "997 343 792 00"

Front swaybar rubber bushings, Porsche part #997-343-792-00

997 343 792 00
25.5mm,
'09-'12 987.2 Front Euro GT3,
'10-'17 997 GT3
2 req'd per Car
1-99634379212-'99-'04 996T, 996 M030,
'05-'12 997T, 986 S, 986 M030
2 req'd per Car
1-99634379217

Porsche part number "996 343 792 17"

Front swaybar rubber bushings, Porsche part #996-343-792-17

996 343 792 17
'02+ 996/997/987 M030
2 req'd per Car
1-99634379214

Porsche part number "996 343 792 14"

Front swaybar rubber bushings, Porsche part #996-343-792-14

996 343 792 14
'97-'04 996 C2/C4 w/MT,
'97-'04 Boxster w/o M030
2 pair, req'd per Car
1-99634379216

Porsche part number "996 343 792 16"

Front swaybar rubber bushings, Porsche part #996-343-792-16

996 343 792 16
27mm,
'99-'12 996/997 Euro GT3 Street
2 req'd per Car

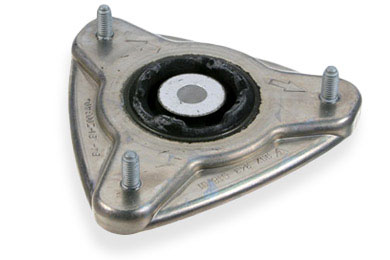

Right Side Front C4/Twin Turbo Strut Camber Plate Bushing For Porsche 996, 997

Right Side Front C4/Twin Turbo Strut Camber Plate Bushing

This is an stock front strut camber plate for Porsche 996/997 with rubber bushings pressed in. Replace your fatigued bushings to restore original ride quality with this product or increase performance by replacing it with either our Camber Plate Monoball Cartridge or QuickChange Adjustable Camber Plates
Right Side Front C4/Twin Turbo Strut Camber Plate Bushing For Porsche 996, 997

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99734301602

Porsche part number "997 343 016 02"

Right side front c4/twin turbo strut camber plate bushing, Porsche part #997-343-016-02

997 343 016 02
Right side,
'99-'12 996/997 C4,
'99-'13 996tt/997tt
1 req'd per Car

Left Side Front C4/Twin Turbo Strut Camber Plate Bushing For Porsche 996, 997

Left Side Front C4/Twin Turbo Strut Camber Plate Bushing

This is a stock front strut camber plate for Porsche 996/997 with rubber bushings pressed in. Replace your fatigued bushings to restore original ride quality with this product or increase performance by replacing it with either our Camber Plate Monoball Cartridge or QuickChange Adjustable Camber Plates
Left Side Front C4/Twin Turbo Strut Camber Plate Bushing For Porsche 996, 997

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99734301502

Porsche part number "997 343 015 02"

Left side front c4/twin turbo strut camber plate bushing, Porsche part #997-343-015-02

997 343 015 02
Left Side,
'99-'12 996/997 C4,
'99-'13 996tt/997tt
1 req'd per Car

Front C2 Standard Left/Right Strut Camber Plate Bushings For Porsche 996, 997, 986 and 987 Boxster, Cayman

Front C2 Standard Left/Right Strut Camber Plate Bushings

This is an stock front strut camber plate for Porsche 996/997 with rubber bushings pressed in. Replace your fatigued bushings to restore original ride quality with this product or increase performance by replacing it with either our Camber Plate Monoball Cartridge or QuickChange Adjustable Camber Plates
Front C2 Standard Left/Right Strut Camber Plate Bushings For Porsche 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99734301801

Porsche part number "997 343 018 01"

Front c2 standard left/right strut camber plate bushings, Porsche part #997-343-018-01

997 343 018 01
'99-'08 996/997 C2, non-turbo,
'97-'12 986/987
2 req'd per Car

GT3 ERX Inner Lower Control Arm (LCA) For Porsche 996, 997, 991, 992, Boxster, & Cayman

GT3 ERX Inner Lower Control Arm (LCA)

We offer the genuine GT3 Street Inner Lower Control Arm. Availability is spotty, contact us to confirm.

Elephant Racing has developed GT3 type inner lower control arms. These are readily available and dimensionally identical to the factory parts. They can be mix-matched with the factory type inner/outer lower control arm and shims.

The Elephant Racing inner arm is offered in two flavors, GT3 Street Inner Lower Control Arm and GT3 Cup Inner Lower Control Arm. GT3 street is equipped with a rubber bushed central bushing and the GT3 Cup is equipped with a solid caster adjustable central bushing.

Our GT3 Street Inner Lower Control Arm has sport-hardness rubber bushings to provide upgraded control and driver feedback while still offering good road noise isolation.

Our GT3 Cup Inner Lower Control Arms uses weather sealed spherical bearings. These deliver superior precision, control, and performance. They will transmit a bit more road noise than rubber bushings.

These can be paired with a choice of GT3 outer control lower arms:
– Elephant Racing GT3 Street Outer Lower Control Arms
– Elephant Racing GT3 Cup Outer Lower Control Arms
– Factory GT3 Street Outer Lower Control Arms

GT3 ERX Inner Lower Control Arm (LCA) For Porsche 996, 997, 991, 992, Boxster, & Cayman
https://www.elephantracing.com/wp-content/uploads/GT3_control_arm_inner_rubber_bushings_detail_002-150x100.jpgGT3 Control Arm Inner Rubber Bushingshttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_003-150x98.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_004-150x100.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_001-150x100.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/2180030_996_GT3_LCA_Monoball_005-150x100.jpg996 GT3 LCA Monoballhttps://www.elephantracing.com/wp-content/uploads/996_Lower_Inner_Control_Arms_002-150x86.jpg996 Factory Lower Inner Control Arms

Application Table

Part No. Stock Equiv. Fitment & Configuration
2180039

Porsche part number "996 341 441 90"

Gt3 erx inner lower control arm (lca), Porsche part #996-341-441-90

996 341 441 90
Rubber Bushing Module,
'99+ 996, 997, 991, 992 w/ GT3 style control arms (front/rear),
'99+ Boxster, Cayman w/ GT3 style control arms (front only)
1 pair, req'd per Car
1-99634144190

Porsche part number "996 341 441 90"

Gt3 erx inner lower control arm (lca), Porsche part #996-341-441-90

996 341 441 90
Rubber Bushing Module,
'99-'05 996 GT3 Street inner front or rear lower,
'99-'11 996/997 inner front or rear lower,
does not fit 991, 992 GT3/GT4, front only on 991, 992
4 req'd per Car

Lower Control Arm (Wishbone) Central Bushing For Porsche 996, 997, 986 and 987 Boxster, Cayman

Lower Control Arm (Wishbone) Central Bushing

Ball Joints

Central Rubber bushings for lower wishbones are available in a choice of “stock” and “sport”. The sport bushings are a harder rubber compound that deforms less under load, providing improved precision and feedback. Stock is stock-spec rubber and delivers factory original ride and performance

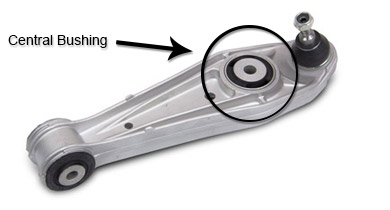

Lower control arm (wishbone) central bushing installation

Lower Control Arm (Wishbone) Central Bushing For Porsche 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
2290018-Sport Hardness,
'05-'12 997 Front,
'12+ 991
2 req'd per Axle
2290040-Stock Hardness,
'05-'12 997 Front,
'12+ 991
2 req'd per Axle
2290014-Sport Hardness,
'99-'05 996/986 Front & Rear,
'99-'12 GT3/GT2 Front & Rear,
'06-'12 997/987 Rear
2 req'd per Axle
2290022-Stock Hardness,
'99-'05 996/986/981 Front & Rear,
'06-'12 997/987 Rear
2 req'd per Axle

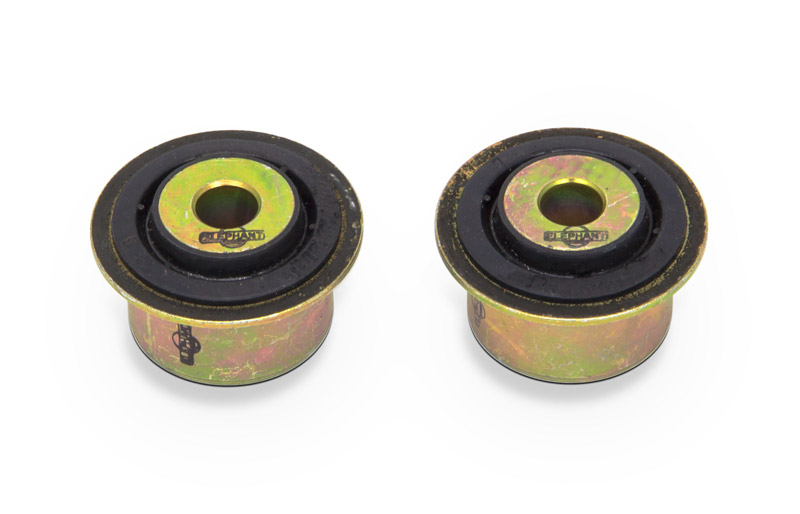

Lower Control Arm (Wishbone) Inner Bushing For Porsche 996, 997, 986 and 987 Boxster, Cayman

Lower Control Arm (Wishbone) Inner Bushing

Replace your tired wishbone inner bushings with our original equipment-type rubber replacements to restore original ride and performance. Rubber bushings are DIY installable and available for lower wishbones. Available in Stock and Sport hardness.

Sized to fit factory original control arms. Not compatible with some aftermarket replacement control arms that use a larger non-stock size bushing.

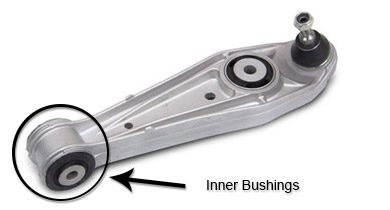

Lower control arm (wishbone) Inner bushing installation

Lower Control Arm (Wishbone) Inner Bushing For Porsche 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
2290013-Sport Hardness,
'99-'12 996/997,
'97-'12 986/987,
'12+ 991
2 pair, req'd per Axle
2290021-Stock Hardness,
'99-'12 996/997,
'97-'12 986/987,
'12+ 991
2 pair, req'd per Axle

Links for Lower Control Arm (Wishbone) Inner Bushing



Rear Toe Control Arm (Track Rod) Concentric Bushings For Porsche 993, 996, 997, 986 and 987 Boxster, Cayman

Rear Toe Control Arm (Track Rod) Concentric Bushings

Replaces the track arm bushings. Each arm has 1 rubber bushing, for a total of 2 bushings per car.Toe control arm (track rod) eccentric bushing installation

Rear Toe Control Arm (Track Rod) Concentric Bushings For Porsche 993, 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
2290033-OEM Hardness (not for GT4),
'95-'98 993,
'99-'12 996/997,
'97-'12 986/987
1 pair, req'd per Car

Rear Toe Control Arm (Track Rod) Eccentric Bushings For Porsche 993, 996, 997, 986 and 987 Boxster, Cayman

Rear Toe Control Arm (Track Rod) Eccentric Bushings

Running out of rear toe adjustment range is a common problem on lowered cars. The bore on these bushings is offset by 6mm effectively shortening or lengthening the length of the toe link and bringing the toe adjustment back into range.

Toe control arm (track rod) eccentric bushing installation

Toe control arm (track rod) eccentric bushing

Decrease toe in – Position the eccentric to decrease toe arm length by 6mm. This solves a common problem with lowered cars that have too much toe in but not enough toe adjustment range to correct the issue.

Toe control arm (track rod) eccentric bushing

Increase toe in – Position the eccentric to increase toe arm length by 6mm. Cars with a lot of negative camber can have too much toe out but not enough range of toe adjustment to bring it back to range.

Until now, replacing the toe links with more expensive adjustable length toe arms was the only solution to the problem. These bushings get the job done at a much lower cost.

Sport hardness rubber improves performance by reducing compression under heavy loads while providing the same noise damping quality of the stock rubber.

Rear Toe Control Arm (Track Rod) Eccentric Bushings For Porsche 993, 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
2290032-Sport Hardness (not for GT4),
'95-'98 993,
'99-'12 996/997,
'97-'12 986/987
1 pair, req'd per Car

Rear Swaybar Rubber Bushings For Porsche 996, 997, 986 and 987 Boxster, Cayman

Rear Swaybar Rubber Bushings

Replace old worn out sway bar bushings with a set of stock bushings. Available for front and Rear sway bars.Choose from Stock (non M030 suspension upgrade) or euro GT3 street bushings.

Rear Swaybar Rubber Bushings For Porsche 996, 997, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99633379224

Porsche part number "996 333 792 24"

Rear swaybar rubber bushings, Porsche part #996-333-792-24

996 333 792 24
18.7mm non-M030,
'99-'12 996/997,
'97-'12 986/987
2 req'd per Car
1-99633379228

Porsche part number "996 333 792 28"

Rear swaybar rubber bushings, Porsche part #996-333-792-28

996 333 792 28
19.2mm,
'99-'04 996/997 S,
'97-'12 986/987 M030
2 req'd per Car
1-99633379225

Porsche part number "996 333 792 25"

Rear swaybar rubber bushings, Porsche part #996-333-792-25

996 333 792 25
19.8mm w/ M030,
'99-'12 996/997,
'97-'12 986/987, CS, BS
2 req'd per Car
1-99633379226

Porsche part number "996 333 792 26"

Rear swaybar rubber bushings, Porsche part #996-333-792-26

996 333 792 26
21mm,
'99-'12 996/997, Euro GT3
2 req'd per Car
1-99733379295

Porsche part number "997 333 792 95"

Rear swaybar rubber bushings, Porsche part #997-333-792-95

997 333 792 95
25.6mm,
'99-'12 997 GT3 & 997 US Model
2 req'd per Car

Rear Upper Control Arm (Wishbone) Bushings For Porsche 996, 997

Rear Upper Control Arm (Wishbone) Bushings

Ball Joints

Replaces the rubber bushing on each of the rear 996/997 upper control arms. Each arm has 2 rubber bushings, for a total of 8 bushings per car. This kit includes all 8. Available in Stock and Sport hardness.

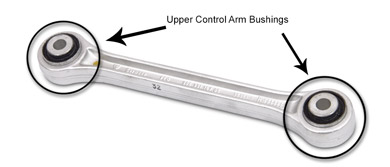

Upper control arm concentric monoballs (rear) installation for Porsche 996/997

Rear Upper Control Arm (Wishbone) Bushings For Porsche 996, 997

Application Table

Part No. Stock Equiv. Fitment & Configuration
2290031-'99-'12 996/997, Sport Hardness, 8 bushings per kit
1 kit, req'd per Car
2290030-'99-'12 996/997, Stock Hardness, 8 bushings per kit
1 kit, req'd per Car

Rear Shock Upper Mounts For Porsche 996, 997

Rear Shock Upper Mounts

Ball Joints

This is an stock rear shock upper mount for Porsche 996/997 with rubber bushings. Replace your fatigued bushings to restore original ride quality with this product or increase performance by replacing it with either our Rear Shock Mount Kit or Rear Shock Mount Monoball Cartridge.

Rear Shock Upper Mounts For Porsche 996, 997

Application Table

Part No. Stock Equiv. Fitment & Configuration
1-99733306102

Porsche part number "997 333 061 02"

Rear shock upper mounts, Porsche part #997-333-061-02

997 333 061 02
'05-'12 997
2 req'd per Car
1-99633305903

Porsche part number "996 333 059 03"

Rear shock upper mounts, Porsche part #996-333-059-03

996 333 059 03
'99-'05 996
2 req'd per Car

Control Arm Bushing Tool For Porsche 996, 997, 991, 992, 986 and 987 Boxster, Cayman

Control Arm Bushing Tool

Simplify the installation process of Monoball products and replacement bushings.

Our two piece cup and piston tools allow for simple bushing extraction and insertion without removal of the wheel carriers or control arms. No need to use a shop press. The tools are designed to precisely fit the bushing circumference, preventing accidental damage to the bushing and ensuring proper installation.

  • Front Lower Control Arm only on 991
  • Front and rear control arms on the 996, 997, 986, 987, & 981
We have tools for the LCA central bushings, the rear upright LCA bushings, and the rear upright shock mount bushings.
Control Arm Bushing Tool For Porsche 996, 997, 991, 992, 986 and 987 Boxster, Cayman

Application Table

Part No. Stock Equiv. Fitment & Configuration
2260019-'97-'16 986/987/996/997/981,
'12+ 991/992 Front lower control arm central bushing
removal / installation
1 req'd per Lifetime

Links for Control Arm Bushing Tool

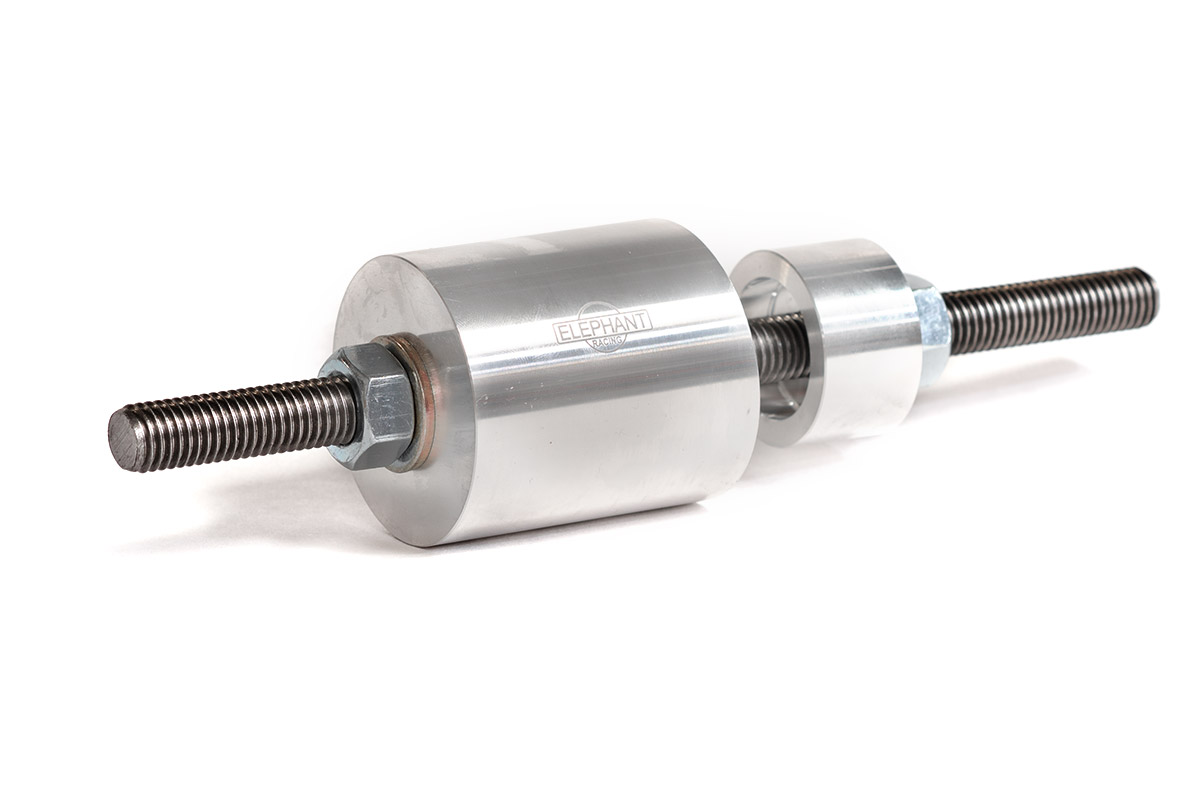

Rear Lower Shock Mount Tool For Porsche 997

Rear Lower Shock Mount Tool

This tool is intended specifically for our part 2260023, 997 rear shock shock lower moonball kit. It enables you to remove and replace the bushing without removing the upright from the car.
Rear Lower Shock Mount Tool For Porsche 997

Application Table

Part No. Stock Equiv. Fitment & Configuration
2260024-'05-'11 997
1 req'd per Lifetime

Performance Bearings

 Speak to an expert: 1.408.297.2789

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Front

Front Swaybar Rubber Bushings for Porsches
Front Swaybar Rubber Bushings
$32.00 each
Right Side Front C4/Twin Turbo Strut Camber Plate Bushing for Porsches
Right Side Front C4/Twin Turbo Strut Camber Plate Bushing
#1-99734301602
Right side,
'99-'12 996/997 C4,
'99-'13 996tt/997tt
1 req'd per car
$215.00 each
Left Side Front C4/Twin Turbo Strut Camber Plate Bushing for Porsches
Left Side Front C4/Twin Turbo Strut Camber Plate Bushing
#1-99734301502
Left Side,
'99-'12 996/997 C4,
'99-'13 996tt/997tt
1 req'd per car
$215.00 each
Front C2 Standard Left/Right Strut Camber Plate Bushings for Porsches
Front C2 Standard Left/Right Strut Camber Plate Bushings
#1-99734301801
'99-'08 996/997 C2, non-turbo,
'97-'12 986/987
2 req'd per car
$35.00 each

Front or Rear

GT3 ERX Inner Lower Control Arm (LCA) for Porsches
GT3 ERX Inner Lower Control Arm (LCA)
$397.00 each
Lower Control Arm (Wishbone) Central Bushing for Porsches
Lower Control Arm (Wishbone) Central Bushing
$105.00 each
Lower Control Arm (Wishbone) Inner Bushing for Porsches
Lower Control Arm (Wishbone) Inner Bushing
$99.00 pair

Rear

Rear Toe Control Arm (Track Rod) Concentric Bushings for Porsches
Rear Toe Control Arm (Track Rod) Concentric Bushings
#2290033
OEM Hardness (not for GT4),
'95-'98 993,
'99-'12 996/997,
'97-'12 986/987
1 pair, req'd per car
$130.00 pair
Rear Toe Control Arm (Track Rod) Eccentric Bushings for Porsches
Rear Toe Control Arm (Track Rod) Eccentric Bushings
#2290032
Sport Hardness (not for GT4),
'95-'98 993,
'99-'12 996/997,
'97-'12 986/987
1 pair, req'd per car
$220.00 pair
Rear Swaybar Rubber Bushings for Porsches
Rear Swaybar Rubber Bushings
$26.00 each
Rear Upper Control Arm (Wishbone) Bushings for Porsches
Rear Upper Control Arm (Wishbone) Bushings
$625.00 kit
Rear Shock Upper Mounts for Porsches
Rear Shock Upper Mounts
$350.00 each

Tools

Control Arm Bushing Tool for Porsches
Control Arm Bushing Tool
#2260019
'97-'16 986/987/996/997/981,
'12+ 991/992 Front lower control arm central bushing
removal / installation
1 req'd per lifetime
$80.00 each
Rear Lower Shock Mount Tool for Porsches
Rear Lower Shock Mount Tool
#2260024
'05-'11 997
1 req'd per lifetime
$95.00 each
