Bump Steer Kits

For Porsche 911, 912, 930

Bump steer – is a change in toe setting due to vertical wheel displacement. A car that bump-steers requires constant steering adjustment to maintain a steady trajectory over uneven surfaces. This can be handful to drive.

Bump steer becomes severe with lowered ride height and is extreme with spindle height modifications. It’s easily corrected by spacing the end of the tie rod down. The correct spacing depends on ride height and spindle height, we make all our bump steer kits adjustable.

Toe steer – A second problem is introduced when a long bump steer spacer is used, as required on raised spindle cars. The long spacer acts as a lever to twist the steering knuckle. Beyond the obvious issue of strength, any twisting of the steering knuckle causes toe steer, and a required correction at the steering wheel to maintain steady trajectory.

We offer two adjustable bump steer kits; Our Racing kit is for cars with spindles of any height and resolves both bump steer and toe steer. Our Bolt-on Bump steer kit is for cars with spindle height ranging from stock to +19mm.


Bolt-On Adjustable Bump Steer Kit For Porsche 911, 912, 930, 914, 944

Bolt-On Adjustable Bump Steer Kit

Adjustable, Bolt-on, Weather Sealed

Fully adjustable adding from .5 to 1.25 inches of spacing in .125 inch increments.

Bolt-on adjustable bump steer kit installedBump Steer Adjustable – Fully adjustable adding .5 to 1.25 inches of spacing in .125 inch increments. Yoke type spacer grips stock steering knuckle for added strength.

Rod End – Weather sealed precision rods ends included work with regular turbo tie rods. Optional boots seal out dirt and and water for extended life.

Our purpose-made rod ends are extra long to ensure proper threaded engagement with standard turbo tie rods.

Spindle Height – Suitable for spindle height ranging from stock up to 19mm.

Watch this Quick Overview

Bolt-On Adjustable Bump Steer Kit Diagram
Bolt-On Adjustable Bump Steer Kit For Porsche 911, 912, 930, 914, 944

Application Table

Part No. Stock Equiv. Fitment & Configuration
2110901-with weather-seal boots,
'69-'89 911,912,930,914,
'82-'91 944
2110900-no weather-seal boots,
'69-'89 911,912,930,914,
'82-'91 944


Racing Bump Steer Kit For Porsche 911, 912, 930, 914

Racing Bump Steer Kit

Precision Steering Under Pressure

Our top-performing bump steer solution is super strong and provides the sharpest, most predictable steering response. It eliminates steering knuckle twist induced toe steer and can be used on raised spindles of any height.

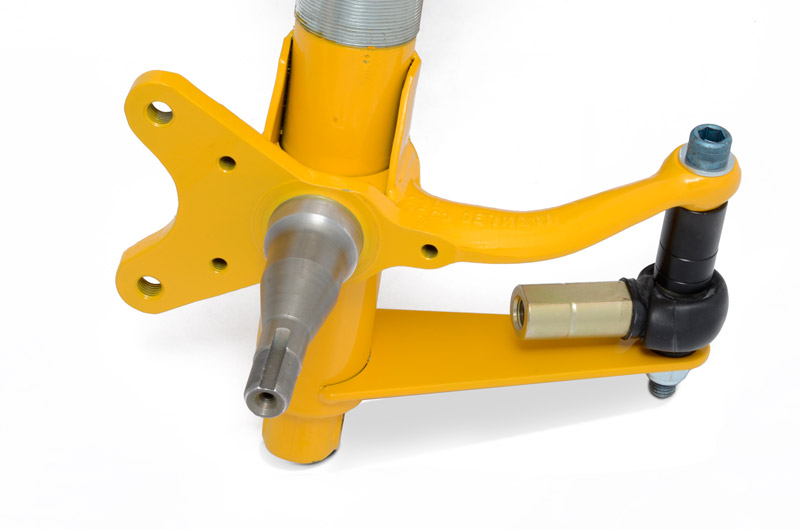

Double steering knuckle – Holds tie rod end between two steering knuckles to eliminate knuckle flex regardless of bump steer spacer length.

Long bump steer spacers (required with raised spindles) place bending loads that twist stock steering knuckles. Twist causes undesired toe steer.

Second steering knuckle is welded to the strut body. You can optionally have us perform the welding for you, see this page.

Bump steer adjustable – allows massive bump steer adjustment range in .125 inch increments. Double shear mounting provides solid support for even the longest bump steer spacing.

Rod End – Weather sealed precision rods ends included work with regular turbo tie rods. Included boots to seal out dirt and and water for extended life.

Our purpose-made rod ends are extra long to ensure proper threaded engagement with standard turbo tie rods.

Spindle height – Kits available for 19mm, 30mm, 40mm spindle height. Kits are easily modified for use with essentially any spindle height.

Watch this Quick Overview

Racing Bump Steer Kit For Porsche 911, 912, 930, 914
https://www.elephantracing.com/wp-content/uploads/Front-CoilOver-Kit-large-150x99.jpgModified strut for Porsche 911 & 914https://www.elephantracing.com/wp-content/uploads/Racing-Bump-Steer-Kit-For-Porsche_001-150x84.jpgBump Steer Installation for Porschehttps://www.elephantracing.com/wp-content/uploads/Safari-Ride-Height-Porsche-911_001-150x95.jpgWeld-On Bump Steer Knuckle for Porsche 911, 930, 912

Application Table

Part No. Stock Equiv. Fitment & Configuration
2110902-'65-'89 911,912,930,914 +19mm spindle
2110903-'65-'89 911,912,930,914 +30mm spindle
2110904-'65-'89 911,912,930,914 +40mm spindle

Links for Racing Bump Steer Kit



Steering Rack Spacer Bump Steer Kit For Porsche 911, 912, 930, 914

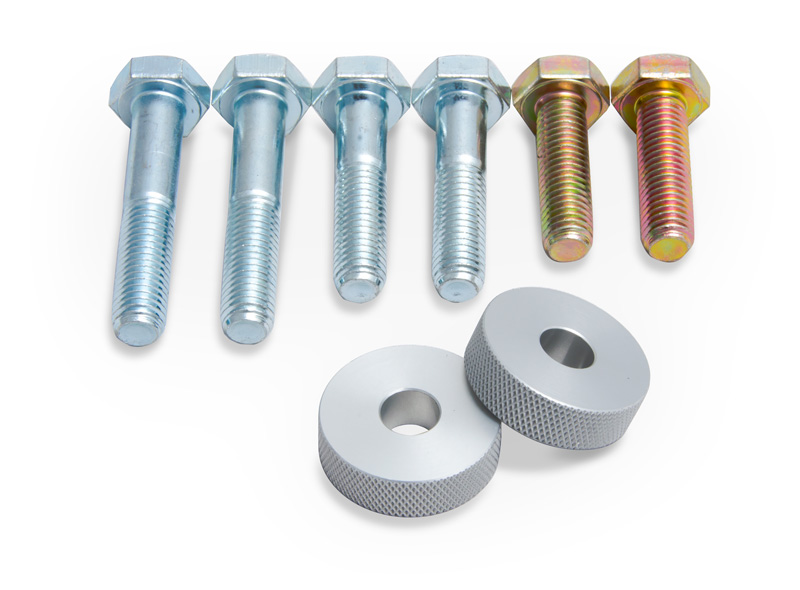

Steering Rack Spacer Bump Steer Kit

Improve Tie Rod Geometry

Elephant Racing steering rack spacer kits help to compensate for bump steer.

This kit raises the steering rack 10mm, thus changing the angle of the tie rods and improving the bump steer behavior.

Extra bolts may be provided with your kit to make it universal fit, you will only use two.

Steering Rack Spacer Bump Steer Kit For Porsche 911, 912, 930, 914

Application Table

Part No. Stock Equiv. Fitment & Configuration
2110905-'65-'89 911,912,930,914

Links for Steering Rack Spacer Bump Steer Kit


Questions? Call us at 1.408.297.2789 M-F 8-5 PST

Select quantities and click "Add To Cart" below

"" in Qty field below denotes qauntity needed per car

    Configuration Quantity Pricing

Front Parts

Bolt-On Adjustable Bump Steer Kit for Porsches
Bolt-On Adjustable Bump Steer Kit
$440.00 kit
Racing Bump Steer Kit for Porsches
Racing Bump Steer Kit
$440.00 kit
Steering Rack Spacer Bump Steer Kit for Porsches
Steering Rack Spacer Bump Steer Kit
#2110905
'65-'89 911,912,930,914
1 kit, req'd per car
$33.00 kit
