QuickChange™ Spring Plate Kit
For Porsche 356
Change Torsion Bars and Adjust Ride Height
QuickChange spring plates make fast-work of torsion bar re-indexing and replacement. Built-in height adjuster makes corner balancing and ride height adjustment a breeze. Pairs the high quality of the factory design with ease of servicing.
- 5 minute torsion bar changes
- Fast and easy ride-height adjustment
- Accepts standard bushings
- “Wow, German craftsmanship from you! What shall I say… just perfect. THANK YOU THE PARTS ARE DEFINITELY WORTH THE PRICE!”Manfred P. – QC Springplate, PolyBronze Bearings
Porsche 356 Spring Plate Systems
The 356 used two different systems of spring plates, cover plate, bushings, and torsion bars as defined below:
- A and B chassis:
- Came quipped with 627mm long torsion bars. Cover plates have a hole in the center. Spring plates have a visible “tube” section that passes through the cover plate. Both inner and out bushings are larger ID about 48mm.
- Elephant Racing Polybronze, QuickChange spring plates, and Torsion bars are all designed for direct fit with this combination.
- Pre-A, C and CS chassis:
- Came equipped with 553mm long torsion bars. Cover plates have no center hole and a 4-nub style bushing. Spring plates have a short “tube” section that is not visible when installed because it does not pass through the cover plate. Outer bushings are larger 48mm Id and inner bushings have a smaller 45mm ID.
- Elephant Racing Polybronze, QuickChange spring plates, and Torsion bars can be used on these cars provided all 4 components (torsion bars, cover plate, spring plate, bushings) are converted together.
Setup is fast and easy
If you’ve ever re-indexed torsion bars to correct ride height, you can really appreciate the benefits of QuickChange. Used in combination with our QuickChange Torsion Bars and Polybronze bearings, this spring plate allows rapid replacement or re-indexing of torsion bars.
- “I am very happy with the way the suspension modification performs. On the road the car is now quiet, smoother and more predictable (contrary to my mechanics predictions). On the track the difference is amazing, the car is entirely predictable, overall more than one second faster than previous PB.” Ross – QuickChange Springplate, PolyBronze Bearings
QuickChange Torsion Bar Changeout
QuickChange Torsion Bars can be extracted through the QuickChange Spring Plate without removing any bolts. Alignment settings are maintained. You don’t even need to remove the wheel from the car. Changing torsion bars is a 5 minute per side operation!
Unlike other aftermarket spring plates, QuickChange Spring Plates bolt the plates together. This prevents the plates “halves” from sliding against each other and eliminates failures and metallic clicking noises common with competing products.
Can be used with any torsion bar and bushing that fits factory spring plates – not included – however QuickChange Torsion bars and PolyBronze Bearings are required to use torsion bar extraction features.

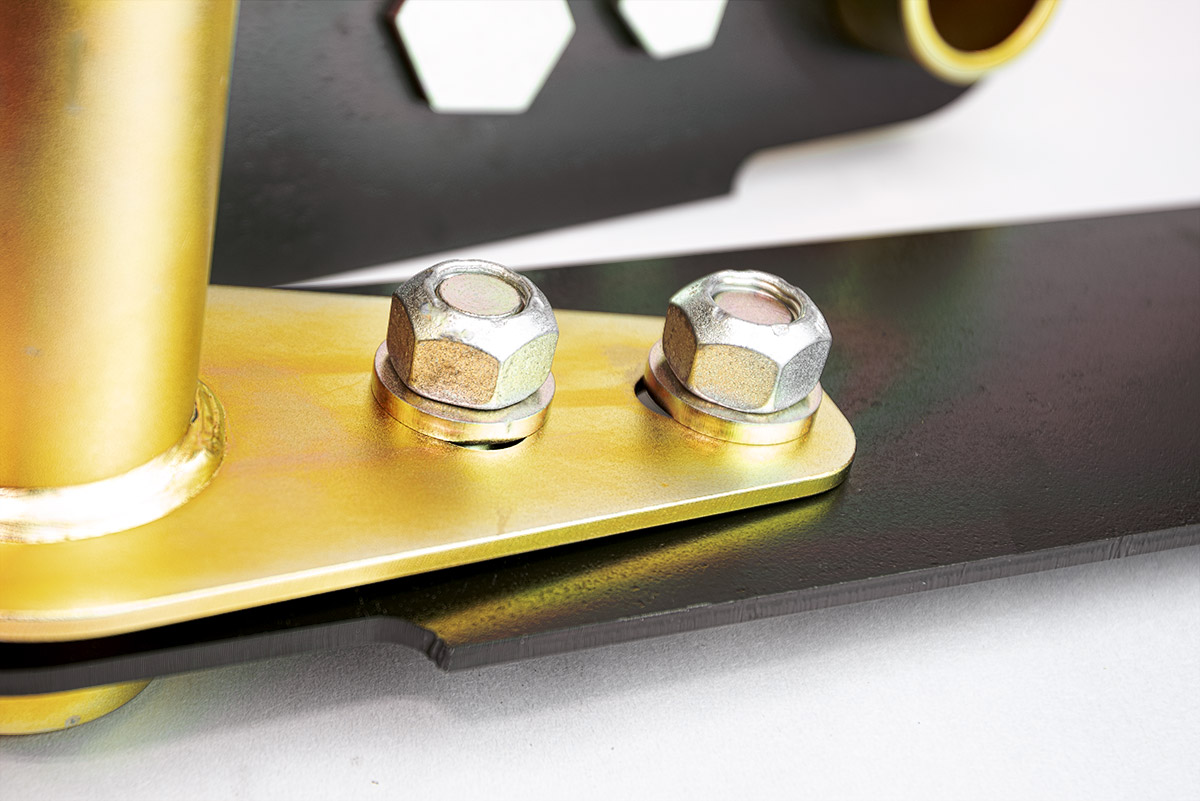

https://www.elephantracing.com/wp-content/uploads/quickchange-springplate-detail-for-porsche-356_001-150x100.jpg

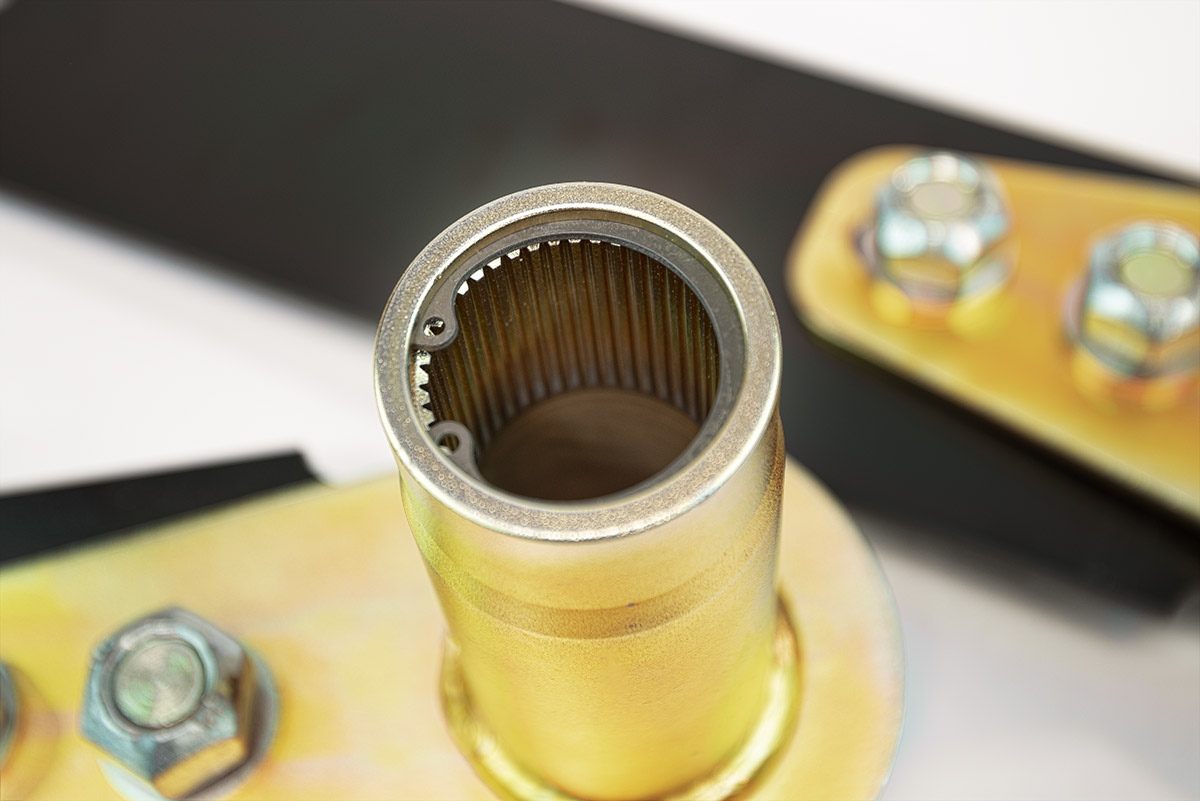

https://www.elephantracing.com/wp-content/uploads/quickchange-springplate-splines-detail-for-porsche-356_002-150x100.jpg

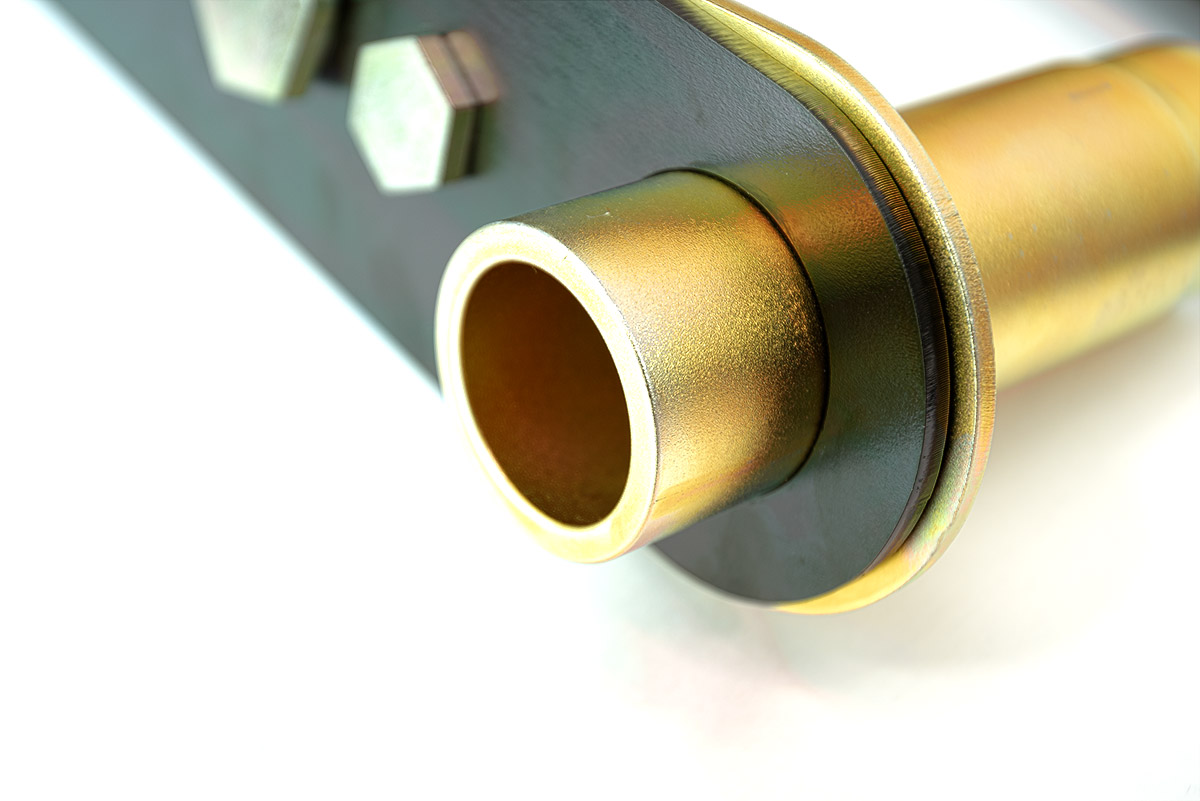

https://www.elephantracing.com/wp-content/uploads/quickchange-springplate-detail-for-porsche-356_003-150x100.jpg

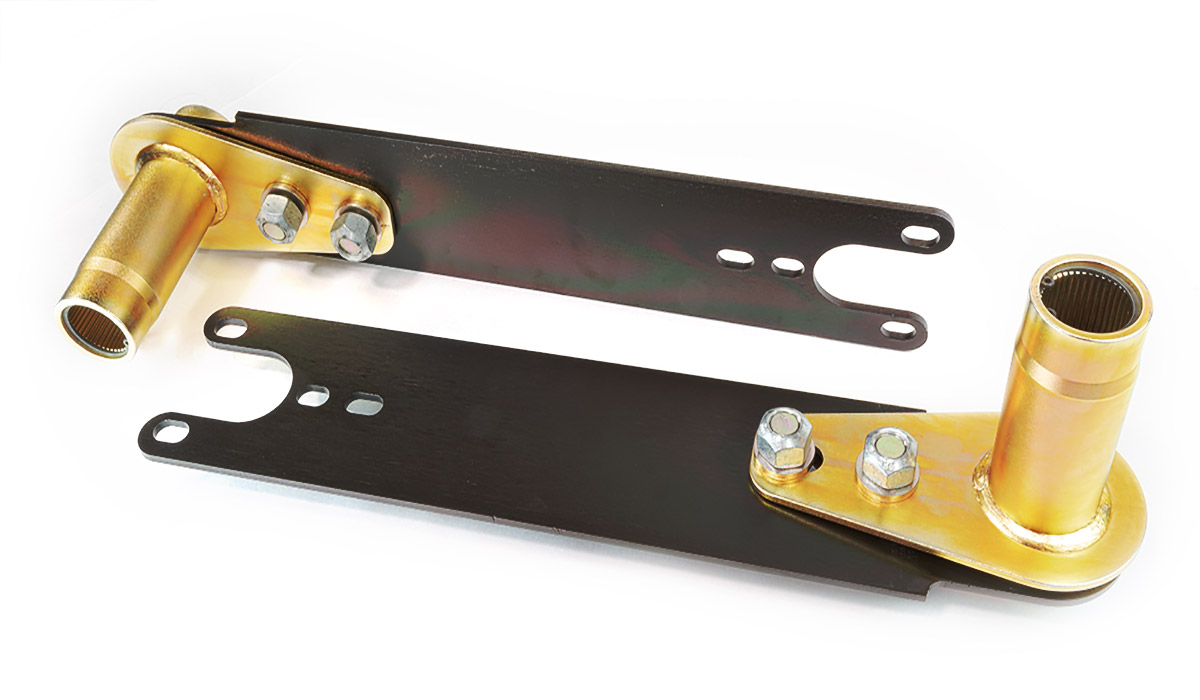

https://www.elephantracing.com/wp-content/uploads/quickchange-springplate-for-porsche-356_001a-150x88.jpgApplication Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2080908 | - | For A and B (For Pre-A, C and SC Read Note) 1 pair req'd per Car |
Speak to an expert: 1.408.297.2789
